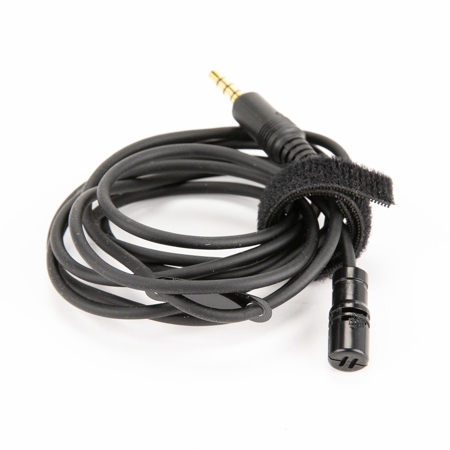

Used Azden PRO-XD Digital Wireless Lavalier Microphone System, Includes PRO-XDR Receiver, PRO-XDT Transmitter, EX-503XD Lavalier Microphone

Connecting the PRO-XD to Mobile Devices

The PRO-XD is part of the Azden® i-Coustics™ sub-brand, which is a group of audio products that are compatible with smartphones and tablets. The PRO-XD system comes with an adapter cable (HX-i) that allows the audio output cable to plug into the headset input of a mobile device. The HX-i adapter is compatible with current iPhone and iPad models, Samsung Galaxy phones and tablets, as well as many other popular Android phones and tablets.

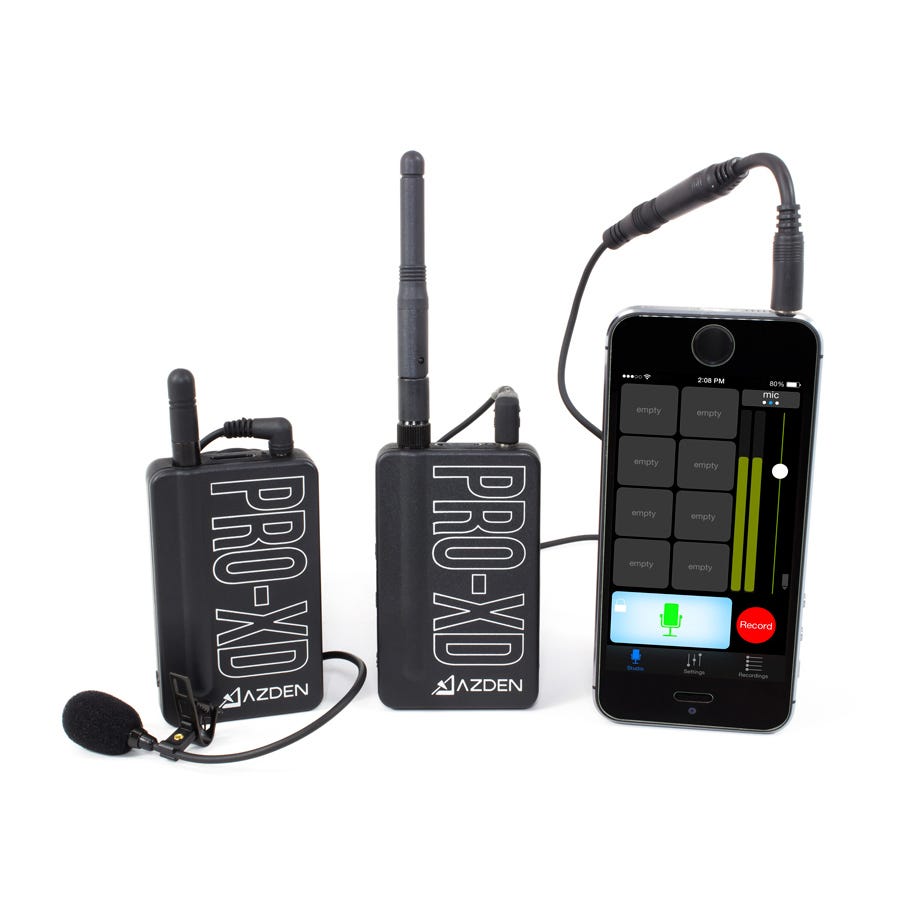

How to connect to a mobile device:
1. Plug the male end of the HX-i adapter cable into your mobile device. If your device is inside of a case, it may be necessary to remove it in order to make a full connection.
2. Plug one end of the included audio output cable into the female end of the HX-i cable.
3. Plug the other end of the audio output cable into the MIC OUT of the PRO-XDR receiver.

Internal Battery And Charging

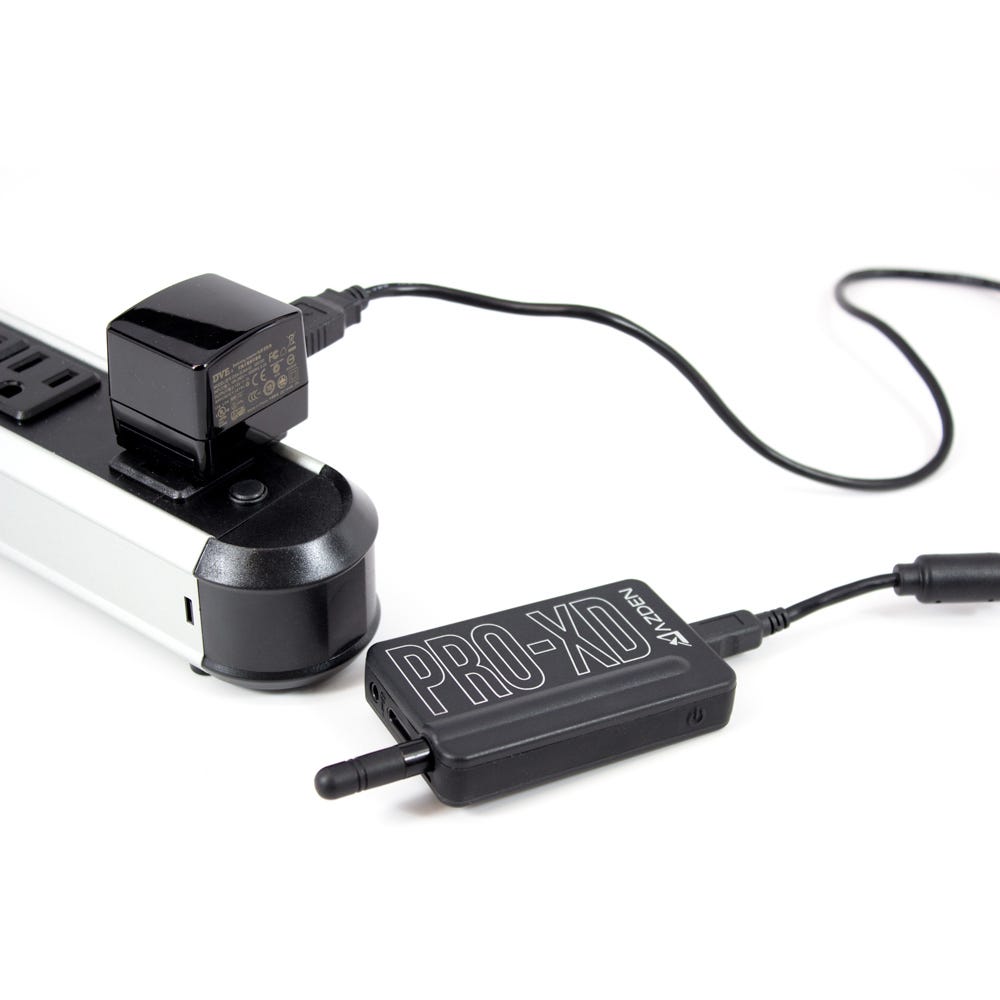

The PRO-XDT transmitter and PRO-XDR receiver both have an internal lithium-ion rechargeable battery inside. Both units charge via the USB mini port located at the bottom. You may use the included USB cable and AC adapter to charge the units. Charging may also be done with 3rd party cables and AC adapters, or by connecting the units to a standard computer USB port. The total full charge time for either unit is approximately 3 - 3.5 hours. The max run time from a full battery on the transmitter is approximately 11 hours while for the receiver it is approximately 16 hours. It is also possible to operate the receiver and transmitter while being charged.

Connecting To A Camera

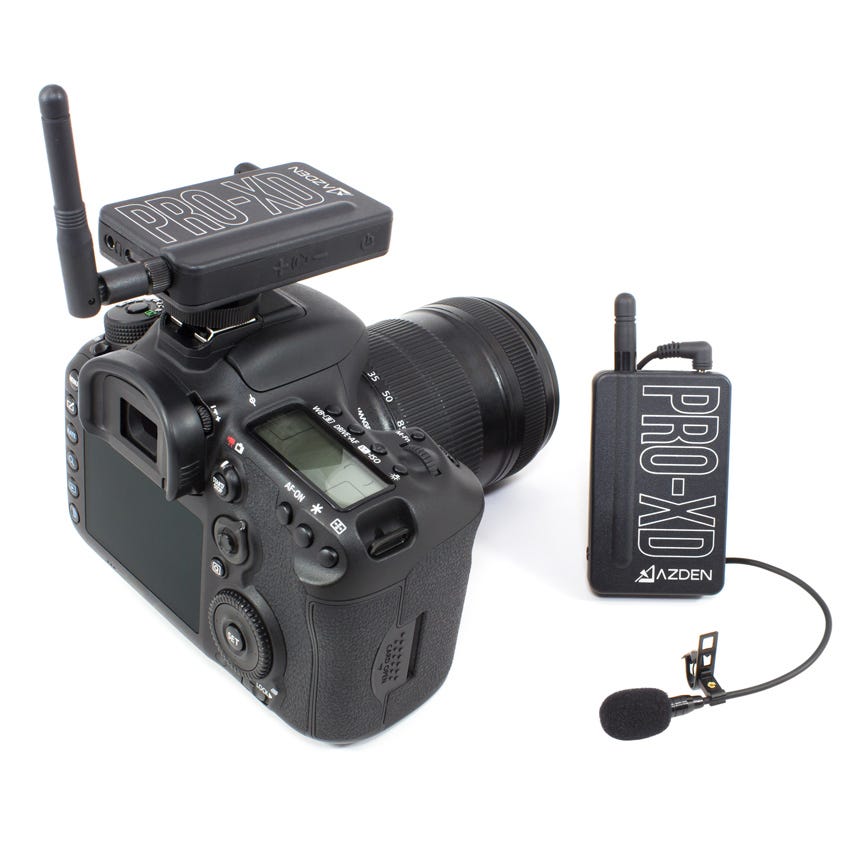

The PRO-XDR comes with a standard camera shoe mount attached for easy mounting to a DSLR Camera. To mount the receiver, slide the shoe mount into the camera’s shoe mount slot. Tighten the thumb screw to secure the receiver in the mount.
An audio output cable is included in this kit to connect the receiver’s microphone output to the 3.5mm microphone input of your camera (standard on most DSLR cameras). Once connected, most cameras will automatically sense that there is an external microphone being used. However, some cameras may require that you manually select the input audio source.

If you wish to plug the PRO-XDR microphone output into a 3-pin XLR microphone input, this can be done with an adapter (sold separately).

The Azden i-Coustics PRO-XD is an easy to use and affordable digital wireless lavalier microphone system for camera mounting and mobile video applications. Its compact and lightweight design is a great solution for capturing audio on the go. Perfect for video production, electronic news gathering and even mobile devices, the PRO-XD includes an adapter cable for compatibility with headset inputs on most modern smartphones and tablets! Utilizing digital wireless technology, the PRO-XD operates in the 2.4GHz range which is completely free of TV and radio interference. The PRO-XD out performs similarly priced VHF systems with better than CD quality digital audio and delivers dependable operation out to a distance of 100 feet or beyond with direct line of sight. Set up is a breeze with automatic syncing between receiver and transmitter. Internal, rechargeable lithium-ion batteries provide long lasting operation and easy charging via USB.

Designed to delivery high-fidelity audio, the receiver's high gain output with volume control alleviates noise and hiss produced by low-quality camera preamps and eliminates the need for big adjustments in post production. The PRO-XD's transmitter uniquely includes an auxiliary line input, allowing you to wirelessly transmit any stereo, line level audio source and mix it with the microphone source if desired. With its incredibly small form factor, the PRO-XD is the first viable digital wireless audio solution for use with action cameras, such as the popular Hero series from GoPro (3rd party cable may be required for connection). The complete PRO-XD system includes the transmitter, receiver and specially designed lapel microphone as well as an adapter cable for mobile devices, an audio output cable, USB cable and AC adapter for charging.
