Used Blackmagic Design ATEM 1 M/E Broadcast Panel

SKU: US1527272

This item is no longer available.

Overview
Compare
Learn
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Blackmagic Design ATEM 1 M/E Broadcast Panel - SKU#1527272 Specifications

  • Ethernet

    10/100/1000 BaseT with loop output for additional control panels or computers

  • Software Updates

    1 x USB for firmware updates

  • Buttons

    Tri-color LED crosspoint buttons (10 direct crosspoints; 20 shifted crosspoints) with high-contrast RGB bitmap labels
    Next transition selectors BKG, Key1 - Key4
    DSK transition selectors Auto, Cut, Tie/Pvw
    Menu control LCD bitmap buttons

  • Controls

    3-axis joystick, numeric keypad, 1x fader bars

  • Indicators

    On-air

  • Operating System

    Aerospace-certified embedded OS

  • Redundant Power

    Yes

  • Input Voltage

    12V

  • Power Consumption

    40W

  • Dimensions (W x H x D)

    17.6 x 6.9 x 15.1" (448 x 176 x 383mm)

  • Weight

    13.2 lbs (6 kg)

Related Articles & Videos

Adorama Hosts NAB Spin-off, Puts Top Manufacturers’ Hot New Products on Display in New York City

Adorama Hosts NAB Spin-off, Puts Top Manufacturers’ Hot New Products on Display in New York City

EVENT ANNOUNCEMENT Must-attend post-NAB event Thursday May 9th gives East Coast video pros a first-hand look at the latest gear from Sony, Canon, Blackmagic, RED and more

Read more

About Blackmagic Design ATEM 1 M/E Broadcast Panel - SKU#1527272

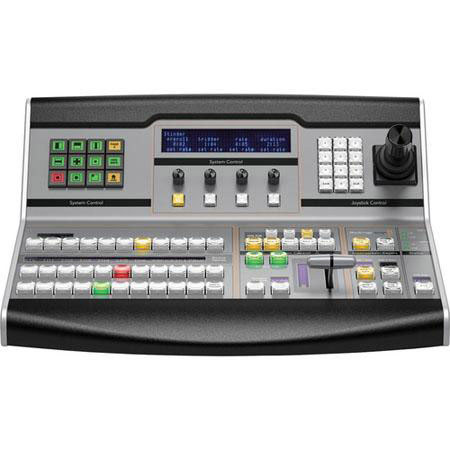

The Blackmagic Design ATEM 1 M/E Broadcast Panel gives you full control over the ATEM 1 M/E Production Switcher for switching cameras and for applying transitions, keyers, fader, DVE control, etc. Designed to fulfill requirements of 24/7 production environments, the 1 M/E broadcast panel features high quality buttons, knobs and controls for an easy operation with a professional outcome. Using an Ethernet cable for connection, it includes a loop thru connection for more than one panel or computer.

Blackmagic Design ATEM 1 M/E Broadcast Panel - SKU#1527272 Features

  • Professional panel
  • Enables you to have full control over the switcher, cameras, transitions, keyers, fader, DVE control, etc
  • Designed to fulfill requirements of 24/7 production environments
  • Features high quality buttons, knobs and controls for an easy operation with a professional outcome
  • Connection using an Ethernet cable
  • Includes a loop thru connection for more than one panel or computer

What's in the box:

  • ATEM 1 M/E Broadcast Panel
  • Power Supply
  • AC Cable
  • Item Note: Wrist Rest Separated. Lever Bent. 1 Key Missing.
