Epiphan AV.io 4K USB 3.0 Video Grabber - SKU#1527925

Picture does not represent the actual item
See what's in the box

See all Epiphan items

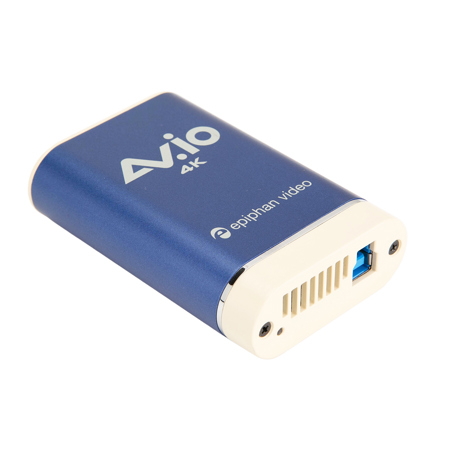

Used Epiphan AV.io 4K USB 3.0 Video Grabber

SKU: US1527925

This item is no longer available.

Recommended Items

Epiphan AV.io 4K: Picture 1 regular
Epiphan AV.io 4K USB 3.1 Gen 1 Video Grabber
$579.95
Epiphan AV.io 4K: Picture 1 regular
Epiphan AV.io 4K USB 3.1 Gen 1 Video Grabber - SKU#1941698
$469.00$454.00
Epiphan AV.io 4K: Picture 1 regular
Epiphan AV.io 4K USB 3.1 Gen 1 Video Grabber - SKU#1941701
$469.00$454.00
Epiphan AV.io 4K: Picture 1 regular
Epiphan AV.io 4K USB 3.1 Gen 1 Video Grabber - SKU#1941695
$469.00$454.00
Epiphan AV.io 4K: Picture 1 regular
Epiphan AV.io 4K USB 3.1 Gen 1 Video Grabber
$353.00$301.00
Epiphan AV.io 4K: Picture 1 regular
Epiphan AV.io 4K USB 3.1 Gen 1 Video Grabber - SKU#1885535
$331.00$301.00
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Browse our FAQ

See Terms & Conditions

Epiphan AV.io 4K Specifications

  • Operating System Support

    Windows 8.1, Windows 10, Mac OS X 10.10 and up, Linux distribution with kernel 3.5.0 or higher supported

  • Drivers

    Native UVC and UAC device auto-detected by OS

  • Input connector

    HDMI

  • Input resolution

    Standard and non-standard resolutions from 640x360 up to 4096x2160 (4K DCI)

  • Output connector

    USB 3.0 B-Type connector with USB 2.0 backward compatibility

  • Output scaling

    Choose from: no scaling (1:1), preserve aspect ratio scaling or aspect ratio conversion scaling

  • Output Resolutions

    4096 x 2160 (DCI 4K) in YUY2 4:2:2 at 5, 10, 15, 20 fps and in NV12 4:2:0 at 15, 23.97, 24 fps
    3840 x 2160 (UHD 4K) in YUY2 4:2:2 at 5, 10, 15, 20 fps and in NV12 4:2:0 at 15, 23.97, 24, 25, 29.97, 30 fps
    640 x 360, 640 x 480, 960 x 540, 1024 x 768, 1280 x 720, 1280 x 1024, 1600 x 1200, 1920 x 1080 in YUY2 4:2:2 and NV12 4:2:0 at 15, 23.97, 24, 25, 29.97, 30, 50, 59.94, 60 fps

  • USB host controllers

    When capturing 4K resolutions we recommend using a computer with an Intel USB host controller (this is the most common type) to achieve the best results. With other USB host controllers such as ASM, AMD, VIA, Renesas, Eltron, Fresco and TI, capture will be at 96% to 79% of the expected frame rate.

  • HDMI Audio Input

    Up to 96 kHz sampling rates

  • Audio output

    16-bit 48 kHz stereo sampling rates

  • Capture latency

    Near-zero. However, third-party applications may contribute capture delay

  • HDCP

    High-bandwidth digital content protection (HDCP) protected content cannot be captured

  • LED

    LED indicates the status of the AV.io 4K

  • Dimensions

    3.54 x 2.36 x 0.91" (89.92 x 59.94 x 23.11mm)

About Epiphan AV.io 4K USB 3.0 Video Grabber - SKU#1527925

HDMI To USB 4K Capture Card with hardware scaling to meet your application needs at any resolution.

• Portable and reliable video grabbers ready to capture and share video, using any computer with a USB port
• Make your video source show up as a camera for your favorite applications such as Skype, Adobe FMLE, VLC media player, Wirecast and QuickTime
• No configuration required! Works with Windows, Mac and Linux
• Easily share HD and 4K video sources using your computer
• Capture 4K in perfect fidelity or use hardware scaling to meet your application needs at any resolution

The easiest way to capture 4K video
The plug and play AV.io 4K capture card is auto-detected by Windows, Mac and Linux operating systems. To capture HDMI video sources, simply connect the included cables from your video source to AV.io 4K then connect AV.io 4K to your computer via USB.

Choose your resolution
AV.io 4K captures resolutions up to 4096x2160, with 4K UHD video streaming at 30 fps and 1080p at 60 fps. Choose to use your video at its original resolution or let AV.io scale it for you to exactly what you need.

4K streaming anywhere, anytime
This hand-size grabber fits in any kit or even your pocket, in a pinch. It is a USB video grabber, so its HDMI capture works perfectly up to 4K on any computer with USB 3.0.

Crystal clear audio
AV.io 4K captures PCM audio over HDMI at up to 24-bit 96 kHz. The two-channel stereo audio output has automatic resampling at 48 kHz and encodes in 16-bit.

Application support
Works seamlessly with your favorite paid or free applications such as Wirecast, Skype, Adobe FMLE, QuickTime, VLC media player and Windows Camera. Save captured content and upload to video platforms such as YouTube, Vimeo and others with ease.

Tough as nails
AV.io 4K capture card is perfect for reliable and repeated long-term use. It uses the same metal exterior as all other Epiphan video grabbers, which means that you could drop it down a flight of stairs and step on it and it would still work. The same enclosure has even been used in space!

Used Guarantee

30-day money back!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Epiphan AV.io 4K USB 3.0 Video Grabber
  • 3' HDMI Cable
  • 3' USB 3.0 Cable
  • Original Box
