EVO SS 3 Axis Wearable Gimbal Specifications

  • Compatibility

    GoPro Hero2/3/4/5/6, Garmin VIRB Ultra 30, Nikon KeyMission 170 Cameras

  • Stabilization Accuracy

    +/-0.01 deg.

  • Follow Accuracy

    +/-0.2 deg.

  • Pan Axis Range

    160 deg. to +160 deg.

  • Tilt Axis Range

    -90 deg. to +180 deg. (Inverted)

  • Roll Axis Range

    -45 deg. to +45 deg.

  • Tilt Axis Control Speed

    Min 1 deg./s Max 50 deg./s

  • Pan Axis Control Speed

    Min 1 deg./s Max 80 deg./s

  • Motor Type

    3x Triple Wound High Torque Brushless

  • Working Current Static Current

    6.8mA (at 6.8 VDC)

  • Dynamic Current

    120mA (at 8.4 VDC)

  • Max Motor Current

    2A maximum (at 12.6 VDC)

  • Sensors

    Independent IMU module, High Definition Position Encoders

  • Batteries

    4x IMR 18350, 900mAh (included)

  • Control Modes

    Heading Follow Mode/Heading & Pitch Follow Mode/Inverted Mode/Locked Mode

  • Operating Temperature

    -5 to 122 deg. F (-21 to 50 deg. C)

  • Dimensions (W x D x H)

    3.7 x 3.5 x 11.6" (93.98 x 88.90 x 294.64mm)

  • Weight

    0.75lbs (0.34kg) (unloaded no batteries)

About EVO SS 3 Axis Wearable Gimbal for GoPro HERO6, HERO5, Garmin - SKU#1558030

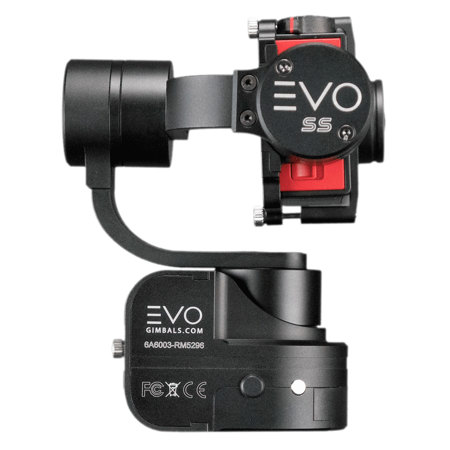

The EVO SS "Super Sport" is the ultimate wearable gimbal for stabilized POV shooting. The EVO SS 3 axis wearable gimbal allows you to effortlessly shoot silky smooth video with your action camera. The EVO SS works with a wide range of popular action cameras such as the GoPro Hero6 Black and Hero Session. New wireless Bluetooth connectivity has been added to the SS enabling remote operation either from your Smartphone or EVO wireless controller. The EVO SS gives you even more versatility with the addition of a 3.5mm AV audio/video output port for an external monitor as well as a standard 1/4-20" female thread on the bottom of the gimbal to be used with the included telescoping extension pole.

• Compatible with GoPro LCD BacPac or Battery BacPac
• Precision Stabilization Accuracy of +/-0.01deg.
• Plug and Play, No Software Configuration, No Tuning, No Balancing!
• Integrated 3.5mm A/V output port for external monitor or recording
• Built in 1/4-20" threaded base for tripod mounting
• Supplement your GoPro's battery with included charging cable
• Up to 5 hours of extended battery life
• Supports wireless control through Bluetooth connection
• 5 Modes - Heading Follow Mode, Heading Lock Mode, Heading & Pitch Follow Mode, Inverted Mode, New Turn Back Mode
• 1 Year USA Warranty

Like EVO's other models the SS features several stabilization modes to choose from by clicking the mode button on the side of the gimbal. In addition the SS has a new feature allowing you to manually set the tilt angle of the camera without the need of a remote. Simply hold the camera in the desired position and the controller will automatically record the position and hold the angle. The other new feature is the "turn-back" mode. This is done via 3 clicks of the mode button. This mode rotates the camera backwards 180 degrees for capturing footage behind you. This is very useful when running the gimbal on your helmet for capturing chase style shots.

3-Axis Precision
Eliminates shakey video and allows you to easily shoot pro-quality, cinematic like footage with your action camera.

Easy Setup
The EVO SS is truly plug and play, ready to use right out of the box.

Versatility
Built in charging capabilities extend your GoPro's battery life up to 2X (for Hero3, Hero4 models only) The mounting tray supports the addition of the GoPro LCD bacpac and battery bacpac if desired.

Multiple Shooting Modes
Pan Follow Mode, Pan Lock Mode, Pan/Pitch Follow Mode, Inverted Mode and NEW Turn Back Mode.

Unprecedented Warranty
Backed by a 1 Year USA Parts and Labor Warranty the EVO SS comes complete with a charger, USB charging cable and (4) 18350 Li-Ion Batteries good for a total of 4-5 hours of extended run time.

What's in the box:

  • SS 3 Axis Wearable Gimbal with Standard GoPro Mount
  • USB Cable
  • GoPro Charging Cable (3 Wire)
  • 18350 Battery Charger
  • Carry Case
  • Item Note: Missing 2x IMR 18350 Batteries; Accessory Adapter for GoPro Mounts; Camera Protection Pad for Pan Motor; GoPro Charging Cable (4 Wire)
