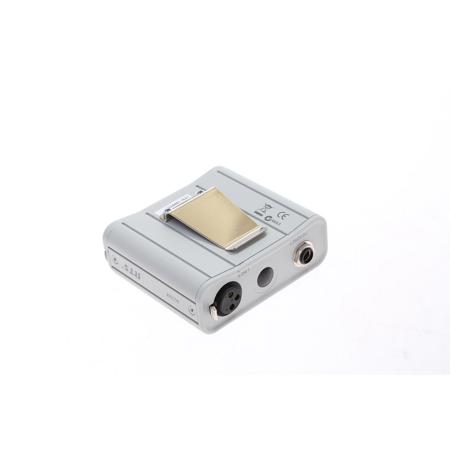

Telex RM-325 2 Channel Intercom User Station with A5F Headset Connector #1563564
See all Telex items
$9 PRICE DROPUsed Condition: Excellent

Used Telex RM-325 2 Channel Intercom User Station with A5F Headset Connector, 100Hz to 12kHz Frequency Response, Less than -75dB Noise Contribution

SKU: US1563564 MFR: F.01U.118.568
Be the first to review this item
$56.00
$65.00
Save: $9 (14%)
Earn VIP Reward Points
See all Used options (1) from $56

What`s in the box:

  • Telex RM-325 2 Channel Intercom User Station with A5F Headset Connector
  • Original Box

INCLUDES FREE WARRANTY

  • This used item comes with a free 90-day warranty. ?
Calculate Shipping

See Options

Add to List

Protect your gear with Adorama Protect.* Learn more

1 Year

$10.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Browse our FAQ

See Terms & Conditions

Telex RM-325 Specifications

  • Channel Powered

    30V DC nominal (standard TW line), 45 to 75mA

  • Locally Powered

    24V DC nominal, 45 to 75mA

  • Storage

    -40deg.C to 125deg.C (-40deg.F to 257deg.F); 0% to 95% humidity, non-condensing

  • Operating

    0deg.C to 50deg.C (32deg.F to 122deg.F); 0% to 95% humidity, non-condensing

  • Noise Contribution

    Less than -75dB on the line

  • Common Mode Rejection Ratio

    Greater than 40dB from the line

  • Maximum Input Level

    20dBu

  • Nominal Input Level

    -10 to +8dBu

  • Frequency Response

    100Hz to 12kHz +/-3dB

  • Headphone Amplifier: Voltage Gain

    30 +/-3dB from the line

  • Headphone Amplifier: Maximum Output

    150mW into 50Ohms

  • Headphone Amplifier: Frequency Response

    100Hz to 8kHz +/-3dB nominal

  • Headphone Amplifier: Output Voltage

    8V peak-to-peak

  • Headphone Amplifier: Impedance

    50 to 600Ohms

  • Sidetone

    Adjustable: 20dB minimum range

  • Microphone Preamplifier: Voltage Gain

    54dB

  • Microphone Preamplifier: Frequency

    100Hz to 8kHz, nominal

  • Microphone Preamplifier: Input Impedance

    Balanced: 1.0kOhms

  • Microphone Preamplifier: Limiter Range

    30dB

  • Total Harmonic Distortion

    Less than 0.2% nominal at Channel output

  • Auxiliary Connector: Type DB-15F

    Pin 1: Program input low
    Pin 2: Program input high
    Pin 3: Unswitched mic output high
    Pin 4: Foot switch in, channel 1
    Pin 5: Foot switch in, channel 2
    Pin 6: Local power (+24V DC)
    Pin 7: Remote mic switch in
    Pin 8: Not Used
    Pin 9: Common
    Pin 10: Common
    Pin 11: Common
    Pin 12: Foot switch channel 1 common
    Pin 13: Foot switch channel 2 common
    Pin 14: Local power common
    Pin 15: Remote mic switch common

  • CARB MIC Headset Connector

    Type: 0.25", 3-Conductor Phone Jack
    Tip: Microphone input high (or mic switch contact)
    Ring: Headphone high
    Sleeve: Common

  • DYN-MIC Headset Connector

    Type: XLR-6F 6-Pin Female Audio Connector
    Pin 1: Headset dynamic microphone low
    Pin 2: Headset dynamic microphone high
    Pin 3: Headphone and mic switch common
    Pin 4: Headphone left high
    Pin 5: Headphone right high
    Pin 6: Remote microphone switch contact

  • Intercom Line Input Connector

    Type: XLR-3F 3-Pin Female Audio Connector
    Pin 1: Common
    Pin 2: Intercom channel 1 audio and power
    Pin 3: Intercom channel 2 audio

  • Intercom Line Loop Connector

    Type: XLR-3M 3-Pin Male Audio Connector
    Pin 1: Common
    Pin 2: Intercom channel 1 audio and power
    Pin 3: Intercom channel 2 audio

  • Program Input Connector

    Type: 0.25", 3-Conductor Phone Jack
    Tip: Program input high
    Ring: Program input low
    Sleeve: Common

  • Dimensions

    1.72 x 8.2 x 8" / 43.69 x 208.28 x 203.2mm

  • Weight

    2lbs / 0.91kg

About Telex RM-325 2 Channel Intercom User Station with A5F Headset Connector #1563564

The RM-325 2 Channel Intercom User Station with A5F Headset Connector for the RTS-TW Intercom System. It is designed for use with a headset and it can be placed on a desktop, or rackmounted.

Telex RM-325 2 Channel Intercom User Station with A5F Headset Connector #1563564 Features

  • Talk button with talk-on indicator for each channel
  • Talk buttons feature dual-action, momentary/latching talk operation
  • External talk switch input (for footswitch etc.) for each channel via the Aux connector
  • Separate listen volume control for each channel and a listen volume control for the program input
  • Accepts a stereo (default), dynamic-mic headset or a monaural, carbon-mic headset
  • Dynamic-mic headset connector with a balanced, dynamic mic input and a mic on/off switch input
  • Talk-off (mic kill) signaling can send and receive talk-off signals
  • Talk-off send and receive can be independently enabled/disabled via internal DIP switches
  • Call button and indicator
  • Sends and receives call signals
  • Program Input balanced program audio may be input via the 0.25" stereo phone jack (PGM) or via the AUX connector
  • Line/Local power options by default, receives operating power from intercom channel 1. Alternatively it may be configured to receive power from channel 2 or from a local, 24VDC power source connected to the AUX connector
  • Separate sidetone control for each intercom channel
