Used Arri SkyPanel S30-C LED Softlight

SKU: US1580772

This item is no longer available.

Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

2023-06-03T04:10:52

Rated 5 out of 5

Super

Happy with it!

Matias I.

2018-12-27T07:35:34

Rated 4 out of 5

Must have in your LED light kit.

Very versatile light. I love it so much and I hope to buy another one soon.

arthur y.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

ARRI S30-C Specifications

  • Optical System

    Soft Diffusion Panel

  • Light Aperture

    14 x 11.8" / 35.56 x 29.97cm

  • Beam Angle

    110 deg. (Half Peak Angle)

  • Handling

    Aluminum Yoke, High Strength Tilt Lock

  • Mounting

    16mm / 28mm Combo Pin (Baby 5/8" / Junior 1-1/8" Combo Pin)

  • Tilt Angle

    +/- 90 deg.

  • Power Consumption

    200W Nominal, 240W Maximum

  • Lamphead Power Connection

    Male 3-Pin XLR - 15 amp (Pin 1: Negative / Pin 2: Positive)

  • Battery Connector

    Male 4-Pin XLR - 10 Amp (Pin 1: Negative / Pin 4: Positive)

  • Battery DC Voltage Range

    23 - 36V DC

  • Battery Mode Light Output

    100% of Total Output

  • White Light

    2800K - 10000K Continuously Variable Correlated Color Temperature

  • Colored Light

    Full RBG+W Color Gamut with Hue and Saturation Control

  • Color Temperature Tolerance

    +/- 100 K (nominal), +/- 1/8 Green-Magenta (nominal)

  • Color Rendition

    CRI Average > 95
    TLCI Average > 91

  • Green-Magenta Adjustment

    Continuously Adjustable (Full Minusgreen to Full Plusgreen)

  • Dimming

    0 - 100% Continuous

  • Control

    On-Board Controller, 5-Pin DMX In and Through, EtherCon LAN Network Connectivity, USB-A

  • Remote Device Management (RDM)

    DMX Setup, Hour Counter and Standard RDM Commands

  • USB Interface

    DMX Setup, Fixture Status and Firmware Upgrade Through PC, Mac and USB Stick

  • Ambient Temperature Operation

    -20 to +45 deg. C / -4 to +113 deg. F

  • Protection Class

    IP 20

  • Estimated LED Lifetime (L70)

    50000 hours

  • Estimated Color Shift Over Lifetime

    < 200 K

  • Photometric Data (Preliminary Results)

    S30-C with Standard Diffusion:
    3m / 9.8': 603 lx, 56 fc at 3200K and 618 lx, 57 fc at 5,600 K
    5m / 16.4': 217 lx, 20 fc at 3,200 K and 222 lx, 21 fc at 5,600 K
    7m / 23.0': 111 lx,10 fc at 3,200 K and 114 lx, 11 fc at 5,600 K
    9m / 29.5': 67 lx, 6 fc at 3,200 K and 69 lx,6 fc at 5,600 K

  • Power Supply Input Range

    90 - 250V AC, 50 - 60Hz

  • Power Supply Output Range

    48V DC

  • Power Input Connection

    PowerCON TRUE1

  • Power Output Connection

    Female 3-Pin XLR - 10 Amp (Pin 1: Negative / Pin 2: Positive), powerCON TRUE1 (mains power through)

  • Power Supply Unit: Control

    On-Board On/Off Switch

  • Power Supply Unit: Mounting

    SkyPanel PSU Rail Mount

  • Certifications (pending)

    CE, FCC; GS, cNRTL, CB

  • Dimensions

    15 x 4.6 x 3.5" / 38.10 x 11.68 x 8.89cm

  • Weight

    Lamphead
    Manual Version: 17.2lbs / 7.8kg
    Power Supply Unit: 5.5lbs / 2.5kg

53 Accessories for Arri SkyPanel S30-C LED Softlight

  • All Accessories (53)
  • Light Stand Accessories (7)
  • Light Stands & Accessories (7)Required Item
  • Batteries & Power Supply (13)
  • Light Accessories (4)
  • Clamps (2)
  • Softboxes & Accessories (4)
  • On-Light Modifiers (3)
  • Cables & Adapters (1)
  • Yokes (2)
  • Bags & Cases (1)
  • Bounce & Diffusers (1)
  • Gaffer Tape (7)
  • Replacment Parts (1)

About Arri SkyPanel S30-C LED Softlight - SKU#1580772

FEATURED REVIEWS

Super

By Matias I.

Happy with it!

Find the perfect lighting solution with the SkyPanel S30-C LED Softlight. This compact, ultra-bright, and high-quality LED soft light is a product of ARRI's decade-long research and development in LED technology, setting a new standard for the industry.

The SkyPanel S30-C LED Softlight is part of a versatile series of fixtures, designed to cater to different lighting needs. This model, in particular, is the smaller, more portable version, making it an ideal choice for on-the-go photographers and filmmakers.

This LED soft light is fully tunable, allowing you to adjust the correlated color temperature anywhere between 2,800 K and 10,000 K. This feature, combined with its excellent color rendition over the entire range, provides you with the flexibility to quickly set the mood of a scene or select the perfect green color for a greenscreen setup.

The SkyPanel S30-C LED Softlight is not just about versatility; it also delivers unmatched power. Despite being a fully tunable LED fixture, it offers tremendous light output across the entire CCT range, outshining a 2kW tungsten soft light or a 6kW tungsten space light.

The quality of light produced by this LED soft light is soft and uniform, thanks to the combination of diffusion panels, LED mixing chamber, and a large light aperture. This results in a light that wraps around objects, eliminating sharp shadows and making it an excellent choice for beauty lighting.

The SkyPanel S30-C LED Softlight also excels in color rendition, offering natural skin tones, accurate color reproduction, and precise color temperature settings. Whether you measure the color rendition using CRI, CQS, or TLCI, this LED soft light performs beautifully.

The user interface of the SkyPanel S30-C LED Softlight is designed for ease of use, offering a wide range of controls at your fingertips. With three simple knobs, you can instantly adjust the color temperature, green/magenta point, intensity, hue, and saturation.

This LED soft light is built to last, constructed from durable materials and assembled by hand with great care. The combination of an aluminum core with fiberglass-reinforced thermoplastics ensures that it can withstand heavy daily use on busy film sets. The electronics are designed to last beyond a minimum of 25,000 hours and are easily serviceable.

In summary, the SkyPanel S30-C LED Softlight offers a combination of versatility, power, quality, and durability, making it an excellent choice for professional photographers and filmmakers.

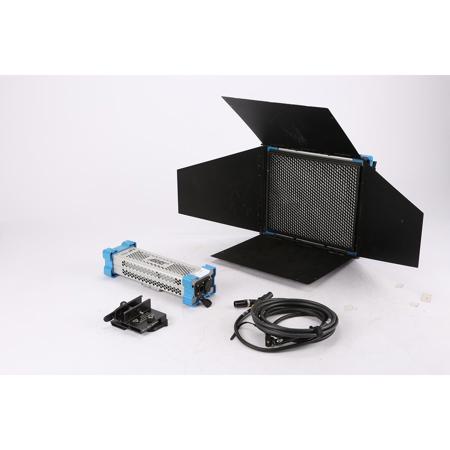

What's in the box:

  • ARRI SkyPanel S30-C LED Softlight
  • Standard Diffusion Panel
  • Power Supply Unit
  • Power Supply Unit Rail Mount
