Sony BRU-300 Optical Multiplex Unit for BRC-300 Pan and Tilt Camera SKU#1609273
Sony BRU-300: Picture 1 thumbnail
Sony BRU-300: Picture 2 thumbnail
Sony BRU-300: Picture 3 thumbnail
See all Sony items
CloseoutUsed Condition: Excellent Plus

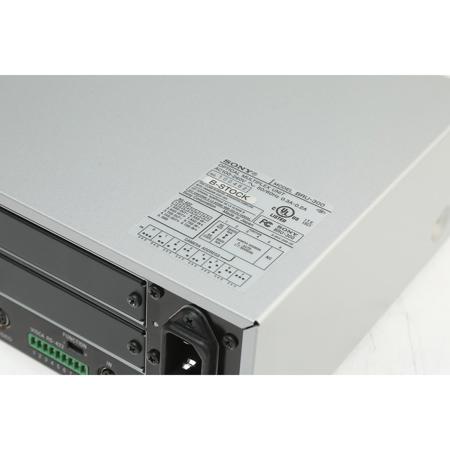

Used Sony BRU-300 Optical Multiplex Unit for the BRC-300 Pan and Tilt Camera

SKU: US1609273 MFR: BRU300
Be the first to review this item
$67.00
Earn VIP Reward Points
See all Used options (5) from $15

What`s in the box:

  • Sony BRU-300 Optical Multiplex Unit
  • RS-422 Connector
  • RS-232C Cable
  • Power Cable
  • Original Box

INCLUDES FREE WARRANTY

  • This used item comes with a free 180-day warranty. ?
Calculate Shipping

See Options

Add to List

Protect your gear with Adorama Protect.* Learn more

1 Year

$11.99

2 Year

$18.99

3 Year

$28.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Browse our FAQ

See Terms & Conditions

Sony BRU-300 Specifications

  • Signal System

    NTSC

  • Signal-to-Noise Ratio

    50 dB

  • Camera Input Signal Connector

    Proprietary Fiber Optical Connector (x 1)

  • Composite Video Signal Connector

    BNC (x 1 output)

  • S-Video Signal Connector

    4-Pin (x 1 output)

  • Sync Signal Connector

    BNC (x 1 input, 1 output)

  • VISCA / RS-232C Control Signal Connector

    8-Pin (x 1 input, 1 output)

  • VISCAS / RS-422 Signal Connector

    9-Pin (x 1)

  • Analog Component / RGB Signal Connector

    Optional with BRBK-301 provides 9-Pin (x 1)

  • SDI Video Signal Connector

    Optional with BRBK-302 provides BNC (x 1)

  • Power Requirements

    100 to 240 Volts AC, 50 or 60 Hz

  • Power Consumption

    0.3 A

  • Operating Temperature

    32 to 104 degrees F
    0 to 40 degrees C

  • Dimensions (WxHxD)

    8-3/8 x 3-1/2 x 9-1/4 inches
    212 x 88 x 233 mm

  • Weight

    4 Lbs 10 Oz/ Lbs
    2.1 kg

  • Warranty

    Sony warranty

About Sony BRU-300 Optical Multiplex Unit for BRC-300 Pan and Tilt Camera SKU#1609273

The Sony BRU-300 is an optical multiplex unit for the BRC-300 high-quality pan and tilt camera. This box allows for uncompressed raw data from the camera to be sent up to 1500 feet. The unit will output Composite video standard. It also has 2 slots for optional video cards for SDI and Analog Component signals.

When the camera system includes the full function RM-BR300 joystick control panel, VISCA RS-422 or RS-232C cables can be connected to the multiplex unit. The control data is sent the other way through the BRU-300 to the cameras.

Warranty Information

This used item has a FREE 180-day warranty. See details.

Used Guarantee

30-day money back!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Sony BRU-300 Optical Multiplex Unit
  • RS-422 Connector
  • RS-232C Cable
  • Power Cable
  • Original Box
