Canon HJ17ex7.6B-IRSE-A Specifications

  • Mount

    Bayonet

  • Image Format

    2/3" CCD, 16:9/4:3

  • Focal Length

    7.6-130mm (17x Zoom)
    15.2-260mm (2x Extender)

  • Aperture

    Without Extender:
    f/1.8 at 7.6-97.5mm
    f/2.4 at 130mm
    With Extender:
    f/3.6 at 15.2-195mm
    f/4.8 at 260mm

  • Iris Type

    Manual

  • Focus Type

    Manual

  • Horizontal View Angle

    16: 9 Aspect Ratio:
    Without Extender:
    64.6deg. at 7.6mm
    4.2deg. at 130mm
    With Extender:
    35.1deg. at 15.2mm
    2.1deg. at 260mm
    4:3Aspect Ratio: Without Extender:60.1deg. x 46.9deg. at 7.6mm
    3.9deg. x 2.9deg. at 130mm
    With Extender: 32.3deg. x 24.5deg. at 15.2mm (2.0x)
    1.9deg. x 1.5deg. at 260mm (2.0x)

  • Minimum Object Distance (M.O.D.)

    2.0' (0.6 m)

  • Object Dimensions at M.O.D (Extender)

    4:3 Aspect Ratio: 59.9 x 44.9cm at 7.6mm
    3.7 x 2.8cm at 130mm
    30.0 x 22.5 cm at 15.2mm (2.0x)
    1.9 x 1.4cm at 260mm (2.0x)
    16:9 Aspect Ratio: 65.4 x 36.8 cm at 7.6mm
    4.0 x 2.3 cm at 130mm
    32.7 x 18.4 cm at 15.2 mm (2.0x)
    2.0 x 1.2 cm at 260mm (2.0x)

  • Macro

    Standard

  • Dimensions (W x H x L)

    6.3 x 4.2 x 8.1" (15.9 x 10.7 x 20.6cm)

  • Weight

    3.5 lbs (1.6kg)

About Canon HJ17ex7.6B-IRSE-A eHDxs 17x2/3" ENG Lens - (2x Extender) SKU#1612489

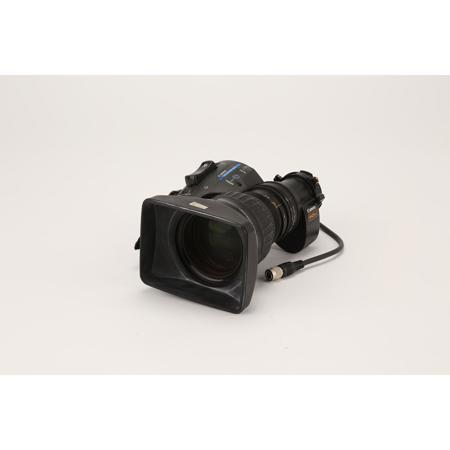

The Canon e-HDXs HJ17ex7.6B-IRSE-A is a 17x 2/3" telephoto lens built to offer high performance in HDTV news gathering. The lens is lightweight and can be relied upon under harsh conditions. Additionally, it's equipped with features such as internal focus and shuttle-shot programmable positioning. The focal-length range is 7.6-130mm with a minimum object distance of 2.0' (0.6 m). This lens has a 2x extender for doubling focal length.

Canon HJ17ex7.6B-IRSE-A eHDxs 17x2/3" ENG Lens - (2x Extender) SKU#1612489 Features

  • Realization of Miniaturization and Weight Reduction: The new design achieved a reduction in size that produced a total length of 206.4mm while also reducing the weight of the lens to 1.60kg (IRSE A type) which is crucial to more mobile shooting
  • Short Minimum Object Distance of 0.56m: By reducing the minimum object distance to 0.56m the lens can be better utilized within confined spaces allowing objects to be effectively imaged at short distances while operating with a wide angle of view facilitated by the minimum 7.6mm focal length
  • High optical performance: Accumulated design experiences allied with advances in optical technologies and manufacturing techniques have contributed to a higher level of overall imaging performance in the HJ17ex7.6B lens
  • New Ergonomic Drive Unit: Besides the exceptional optical performance, another remarkable character of this new lens is it's newly designed drive unit. With the goal of pursuing ease of operation, Canon has reached a new design based on human ergonomics, refined by a long term research and testing

What's in the box:

  • Canon HJ17ex7.6B-IRSE-A eHDxs 17x 2/3" ENG Lens
  • Lens Hood
  • Front and Rear Lens Caps
