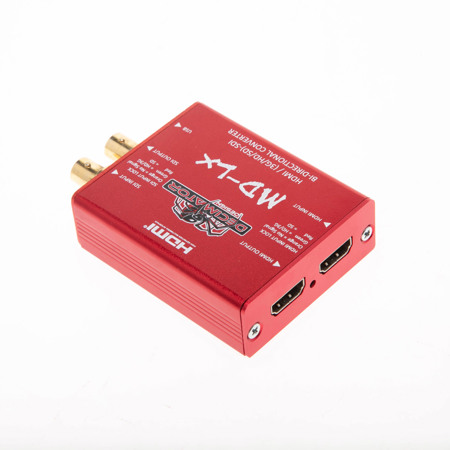

Used Decimator MD-LX HDMI/SDI Bi-Directional Converter

SKU: US1629950

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

2021-07-05T12:59:00

Rated 4 out of 5

Sturdy and does as described

Very good build quality and can be updated via usb.

BRENT D.

2021-03-23T08:58:25

Rated 5 out of 5

Decimator MD-LX great little product

It worked as described and comparing to the other options like Atomos Connect ones the Decimator has dual input and output nice to monitor the signal. I already have the MD-HX model and works great so gave these a try and was pleased.

Troy N.

2020-06-02T08:27:04

Rated 5 out of 5

Perfection!

Amazing quality and performance!

CODY C.

2020-01-31T07:21:24

Rated 5 out of 5

DaDecimator

Awesome product. Does the trick so we’ll I got 2!

Sean M.

2020-01-08T08:27:19

Rated 5 out of 5

Great Buy!

This is such a great investment! My decimator works perfectly and fits my needs on film sets!

Nick A.

2019-07-17T14:25:18

Rated 5 out of 5

Fabulous

Awesomely awesome product. Have a canon xa10 camcorder This allowed me to finally put my camera into the church switcher. Awesome signal... u rock

LESLIE H.

2018-10-31T09:05:44

Rated 5 out of 5

Recommended

Great and compact converter And fan of Decimators

camarena o.

2017-12-03T09:02:38

Rated 4 out of 5

Decimator

Works great , on most screens except it didn't perform as well on 85 inch screen

SEBASTIAN P.

2017-11-15T08:16:52

Rated 5 out of 5

Solid units

These units are like Swiss Army knives when it comes to Convversion between SDI and HDMI. I take them with me to every show I do.

FRANCO L.

2017-11-08T08:06:44

Rated 5 out of 5

Simple, effective, just plain works…

The new decimator product is phenomenal. We just purchased three of these units and put them through the paces on a few events, and could not be any happier with the purchase. They just work.

BRIAN P.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Decimator MD-LX Specifications

  • SDI Formats

    3G-A or 3G-B:SMPTE 424M at 2.97 and 2.967Gb/s:
    1080p at 60/59.94/50Hz

    HD:SMPTE 292M/274M/296M at 1.485 and 1.435Gb/s:
    1080i at 60/59.94/50Hz
    1080p/psf at 30/29.97/25/24/23.98Hz
    720p at 60/59.94/50/30/29.97/25/24/23.98Hz

    SD:SMPTE 259M at 270Mb/s:
    625i50 (PAL)
    525i59.94 (NTSC)

  • HDMI Formats

    1080p at 60/59.94/50/30/29.97/25/24/23.98Hz
    1080i at 60/59.94/50Hz
    720p at 60/59.94/50/30/29.97/25
    625i50 (PAL)
    525i59.94 (NTSC)

  • Inputs

    1x HDMI Type A
    1x (3G/HD/SD)-SDI
    Micro USB for power, control and firmware updates

  • Outputs

    1x HDMI Type A
    1x (3G/HD/SD)-SDI

  • Power

    USB Power +4.4V to +5.25V DC
    Uses under 2.5 Watts

  • Dimensions

    60 x 73.7 x 23mm (2.36 x 2.90 x 0.91")

About Decimator MD-LX HDMI/SDI Bi-Directional Converter - SKU#1629950

FEATURED REVIEWS

Decimator MD-LX great little product

By Troy N.

It worked as described and comparing to the other options like Atomos Connect ones the Decimator has dual input and output nice to monitor the signal. I already have the MD-HX model and works great so gave these a try and was pleased.

Perfection!

By CODY C.

Amazing quality and performance!

Overcome your video conversion challenges with the MD-LX HDMI/SDI Bi-Directional Converter, a high-quality, durable, and reliable solution from the trusted brand, Decimator. This compact, user-friendly device supports both 3G level A and B on the input and output, offering seamless conversion between these levels.

Whether you're dealing with HDMI to SDI, SDI to HDMI, or even HDMI to HDMI and SDI, this converter has you covered. It's designed with an auto-select feature that intelligently routes active input to all outputs. In scenarios where both inputs are active, it defaults to SDI to HDMI and HDMI to SDI conversion, ensuring optimal performance and compatibility.

One of the standout features of this converter is its low power consumption. It's engineered to operate efficiently from the USB, making it an ideal choice for on-the-go professionals. The USB interface also provides control and facilitates firmware upgrades, keeping your converter up-to-date with the latest advancements.

The MD-LX HDMI/SDI Bi-Directional Converter comes with a power supply and USB cable, providing everything you need to get started (note: HDMI cable not included). Whether you're a professional videographer or an enthusiast, this converter is designed to deliver high-quality video processing, ensuring your output signal matches the quality of your input signal. Experience the versatility and performance of the MD-LX HDMI/SDI Bi-Directional Converter today.

What's in the box:

  • Decimator MD-LX HDMI/SDI Bi-Directional Converter
  • Power Supply
  • USB Cable
  • Original Box
  • Item Note: USB port empty and rattling heard from inside. Cosmetic condition is E. SOLD AS-IS; FOR PARTS ONLY; FINAL SALE
