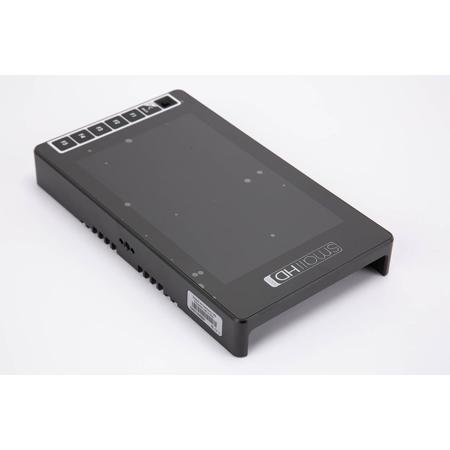

SmallHD 703 Professional Grade 7" Full HD Ultra Bright Field Monitor SKU#1635882

Picture does not represent the actual item
See what's in the box

See all SmallHD items

Used SmallHD 703 Professional Grade 7" Full HD Ultra Bright Field Monitor

SKU: US1635882

This item is no longer available.

Recommended Items

SmallHD : Picture 1 regular
SmallHD 703 UltraBright 7" On-Camera LED Monitor Bundle with Gold Mount Bracket
$3,199.00
Osee T7: Picture 1 regular
Osee T7 7" Full HD Ultrabright HDR On-Camera Field Monitor, Supports 4K HDMI
$328.00$327.50
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

2020-12-19T08:09:07

Rated 5 out of 5

Best 7" Monitor for Film/TV

I'm an AC who also sometimes shoots and this is the best all around monitor for me. I have a 5" TVLogic monitor and while it has been a great workhorse I can already tell this monitor will be my new go to. It has a very bright screen for daylight viewing which is perfect without needing a hood or other sun shades. It has really good software that gets updated often by SmallHD. It has lots of common features (like focus assist, false color, waveform, pixel to pixel, etc.) that you can setup to be on different viewing "pages". That way you can quickly flip through each page depending on what you need at that moment. Each page is customizable so I can have features that I would use for focus pulling on one page and ones for shooting on another page. The whole thing is built well and the screen is very sharp and color accurate. If you need a monitor that can do a whole lot of things on set at a moments notice this is a great choice.

SANTIAGO B.

2020-01-19T09:27:37

Rated 5 out of 5

So happy

Best price best quality

kevin j.

2018-04-16T10:58:00

Rated 2 out of 5

Bright But Flawed

This monitor compares to no other when it comes to daylight viewable handheld monitors. The thing is, the panel is extremely flawed. I've had the panel replaced 3 times and everyone has issues. First, every panel you get with have dead/stuck pixels. SmallHD only replaces them if they have 3 or more. Mine had 3 so I got it replaced. They replaced it with one that had 14 stuck pixels... That will tell you all you need to know about their quality control. The next bigger issue is the panel will flash RGB lines with the previous firmware. The most recent beta firmware makes it only flash blue lines. I had this issue on all 3 panels they gave me and originally saying it was an issue with my panel and not with every panel. Now after the 3rd replacement and it still happening they are claiming it's a characteristic of this panel and is in all of them. If you are using it as a focus monitor, it can be extremely distracting. If you are using it as a field monitor then you can get by without noticing it as much. You will mostly notice it flashing with darker images because the blue stands out that much more. When out in daylight and you have a bright image on screen, it blends in much more. If you need a daylight viewable monitor, it's great, but be aware of the drawbacks.

Kyle K.

2018-01-07T09:04:52

Rated 5 out of 5

Recommended

Efficient, affordable and client-oriented. Good job!

Theda C.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Browse our FAQ

See Terms & Conditions

SmallHD MON-703U Specifications

  • Display: Panel Type

    LTPS LCD

  • Display: Size Diagonal

    7.02

  • Display: Resolution

    1920 x 1080

  • Display: Pixel Density (PPI)

    323 ppi

  • Display: Aspect Ratio

    16:9

  • Display: Active Area

    7.02

  • Display: Brightness

    2500

  • Display: Contrast

    1200:1

  • Display: Color Gamut

    70% NTSC

  • Display: Color Depth

    10-bit

  • Display: Viewing Angle

    178 Degrees (CR<10)

  • Display: Backlight Type

    White LED

  • Display: Adjustable Backlight

    Yes

  • Input Signal Types/Formats: 3G-SDI

    YCC 4:2:2 at 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i60, 1080i59.94, 1080i50

  • Input Signal Types/Formats: HD-SDI

    YCC 4:2:2 at 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98

  • Input Signal Types/Formats: SD-SDI

    YCC 4:2:2 at 10-bits: 480i29.97, 576i25

  • Input Signal Types/Formats: HDMI

    YCC 4:2:2 at 8 bits, 8/10/12 bit color in RGB & YCC 4:4:4: 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98,1080i60, 1080i59.94, 1080i50, 1080i30, 1080i29.97, 1080i25, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p120, 480p119.88, 480p60, 480p59.94, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 480i30, 480i29.97, 480i24, 480i23.98, 576i200, 576i100, 576i50, 576i25

  • Input Signal Types/Formats: Audio

    HDMI & SDI - Monitor through Speakers in Front Bezel or Through Headphone Jack - Metering up to 8 channels

  • Output Signal Types/Formats: 3G-SDI

    YCC 4:2:2 at 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i60, 1080i59.94, 1080i50

  • Output Signal Types/Formats: HD-SDI

    YCC 4:2:2 at 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98

  • Output Signal Types/Formats: SD-SDI

    YCC 4:2:2 at 10-bits: 480i29.97, 576i25

  • Output Signal Types/Formats: HDMI

    YCC 4:2:2 at 8 bits, 8/10/12 bit color in RGB & YCC 4:4:4: 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98,1080i60, 1080i59.94, 1080i50, 1080i30, 1080i29.97, 1080i25, 720p120, 720p119.88, 720p100, 720p60,720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p120, 480p119.88, 480p60, 480p59.94, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 480i30, 480i29.97, 480i24, 480i23.98, 576i200, 576i100, 576i50, 576i25

  • Output Signal Types/Formats: Audio

    HDMI & SDI - Incoming Audio Stream is sent downstream via HDMI or SDI connection

  • Connector Type: SDI

    1x 3g Input, 1x 3g Output

  • Connector Type: HDMI

    1x Input, 1x Output

  • Connector Type: Audio

    1x 1/8" Headphone Jack

  • Connector Type: Power In

    2x Locking LEMO 2-pin Connectors: 1x for Power Input, 1x for Power distribution to an external device (Requires Power Input)

  • Connector Type: USB

    1x Micro USB

  • Controls: Primary Control Interface

    Joystick Navigation, Dedicated Back/Power Button. 5 Additional User Assignable Function Buttons

  • Data I/O: Storage

    SD Card for LUTs, Captured Images, Image Overlays, Firmware Upgrades, Profile Saving.

  • Data I/O: USB

    USB port supports storage devices for LUTs, Captured Images, Image Overlays, Profile Saving

  • Power: Connector Type

    2x Locking LEMO 2-pin Connectors: 1 for Power Input, 1 for Power distribution to an external device (Requires Power Input)

  • Power: Voltage

    With DV Battery Plate: 6.0 - 8.4V 7.2V Nominal With High Voltage Battery Plate: 12 - 34V 14.4V Nominal With Lemo Input: 12 - 34V Max

  • Power: Power Consumption

    TBD

  • Power: Recommended Power Supply

    Included

  • Power: Overload Protection

    Yes

  • Power: Output Voltage (VDC)

    Mirrors Input Voltage

  • Software: Pixel Zoom (type)

    2x & 4x Zoom with smooth pan via joystick

  • Software: Frame Guides

    Yes: Preset Aspect Ratios & Customizable

  • Software: DSLR Scale

    Canon 5DMkii & Canon 7D

  • Software: Custom Scale

    Yes (Underscan Only)

  • Software: Anamorphic De-Squeeze

    Yes: 1.33x, 1.5x, 1.66x, 2.0x

  • Software: Image Rotate(Manual/Automatic)

    Yes - Automatic or Manual Control

  • Software: Image Flip (Manual/Automatic)

    Yes - Automatic or Manual Control

  • Software: Cross Conversion

    Yes: HDMI -> SDI & SDI -> HDMI

  • Software: Focus Assist (Colors)

    Yes - User Adjustable Color Style and Intensity

  • Software: Peaking

    Yes - User Adjustable Intensity

  • Software: False Color

    Yes - Rainbow & Arri Style

  • Software: Zebra

    Yes - Dual - User Configurable

  • Software: Waveform

    Yes - Luma & RGB Style, Fully User Customizable w/ Region of Interest Highlighting

  • Software: Vectorscope

    Yes

  • Software: RGB Parade

    Yes - Fully User Customizable

  • Software: Histogram

    Yes - Luma & RGB Style

  • Software: Image Capture

    Yes - With Dedicated Button

  • Software: Custom LUTS

    Yes - Loadable as Looks on Pages or as Systemwide Color Calibration via the settings menu

  • Software: LUT Downstream

    Yes - Available on SDI 1 or HDMI Out. Applied on Output Preview Page.

  • Software: LUT Import

    via SD Card or USB Storage Device

  • Software: Image Overlay

    Yes with Opacity Slider and Blink Setting

  • Software: Firmware

    Compatible with 1300-1700-2400-3200 Firmware VX.x and later. Firmware Version to support 503UB & 703UB Does not yet exist. Version number not yet known.

  • Software: Audio Meters

    Yes - HDMI & SDI up to 8 channel

  • Compliance

    FCC, IC, CE, RoHS

  • Operating Temperature

    0 to 100 deg. F (-18 to 38 deg. C)

  • Storage Temperature

    -4 to 120deg. F (-20 to 49 deg. C)

  • Screen Protection

    AR Coated Gorilla Glass Optical Bonding on Panel

  • Mount Points

    1 1/4"-20 Thread on Top of Monitor, 1x 1/4"-20 Thread on Bottom of Monitor

  • Dimensions (HxWxD)

    4.88 x 8.38 x 1.13" (123.95 x 212.85 x 28.70mm)

About SmallHD 703 Professional Grade 7" Full HD Ultra Bright Field Monitor SKU#1635882

FEATURED REVIEWS

Best 7" Monitor for Film/TV

By SANTIAGO B.

I'm an AC who also sometimes shoots and this is the best all around monitor for me. I have a 5" TVLogic monitor and while it has been a great workhorse I can already tell this monitor will be my new go to. It has a very bright screen for daylight viewing which is perfect without needing a hood or other sun shades. It has really good software that gets updated often by SmallHD. It has lots of common features (like focus assist, false color, waveform, pixel to pixel, etc.) that you can setup t...

View full Review

So happy

By kevin j.

Best price best quality

Make your on-set viewing experience superior with the 703 Professional Grade 7" Full HD Ultra Bright Field Monitor from SmallHD. This advanced monitor is designed to cater to a wide range of needs, from gimbal operators seeking a compact yet bright monitor, to first ACs needing critical focus in diverse environments, or directors wanting to view two camera angles simultaneously.

The 703 Ultra Bright Field Monitor stands out with its impressive 2500-nits brightness, ensuring clear and vibrant viewing even in full sunlight. It boasts a 10-bit, 1920x1080 IPS LCD screen, optically bonded with durable Gorilla Glass, ensuring high-quality visuals and robust performance.

This professional-grade monitor is equipped with both SDI and HDMI inputs and outputs, featuring built-in cross conversion for seamless integration with your existing equipment. The Dual View function allows for either two SDI or an SDI and an HDMI input to be displayed side-by-side, a valuable feature for A/B camera setups or for viewing LOG and DeLOG footage on set.

The 703 Ultra Bright Field Monitor also offers HDR Preview, enabling more accurate onset exposure adjustment. Users can select Camera Input Gamma in the settings menu and individually tweak footage white point and black point via data values in the form of a histogram.

Like other SmallHD monitors, the 703 comes with a suite of useful tools, including 3D LUT support, HD Waveform and scopes, Focus and Exposure Assists, and the PageBuilder OS that allows customizing menus to each camera operator's individual preference.

Engineered for professional power solutions, the 703 monitor features an integrated 2-pin 12V LEMO input for powering the monitor and native mounting solutions for both Anton Bauer Gold/V-mount and Sony L-Series dual battery plates.

Experience the difference with the 703 Professional Grade 7" Full HD Ultra Bright Field Monitor, a reliable and versatile tool for all your on-set monitoring needs.

SmallHD 703 Professional Grade 7" Full HD Ultra Bright Field Monitor SKU#1635882 Features

  • 2500 nits of brightness 'UltraBright'
  • 12v 2pin LEMO power in and LEMO auxiliary power for wireless devices and accessories
  • 1920x1080p IPS LCD optically bonded Gorilla Glass Screen
  • Pixel Density 441 PPI
  • HDR Preview
  • 2x SDI in, 1x SDI out - 1x HDMI in, 1x HDMI out
  • Cross Conversion
  • Dual View (via two inputs) for A/B Camera
  • 3D LUT Support
  • HD Waveform and Scopes
  • Programmable Function buttons

Used Guarantee

30-day money back!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • SmallHD 703 UltraBright On-Camera Monitor
  • 2-Pin LEMO to D-Tap Power Cable (36")
  • Original Box
