BenQ TH690ST Specifications

Projection System

Projection System

Jump to...
  • Projection System

    DLP

Display

Jump to...
  • Brightness (ANSI lumens)

    2300

  • Native Resolution

    1080P (1920x1080)

  • Native Aspect Ratio

    16:9

  • Contrast Ratio (FOFO)

    500,000:1

  • Display Color

    30-bit (1.07 billion colors)

  • Light Source

    4LED

  • Light Source Life

    Normal 20000 hrs
    ECO 30000 hrs
    SmartEco 20000 hrs

Optical

Jump to...
  • Throw Ratio

    0.69 - 0.83

  • Zoom Ratio

    1.2x

  • Lens

    F / # = 2.6-2.78
    f = 10.2-12.24 mm

  • Projection Offset (Full-Height)

    1.025

  • Keystone Adjustment

    2D
    (Auto) Vertical +/- 30 degrees
    Horizontal +/- 30 degrees


Jump to...
  • Rec. 709 Coverage

    0.98

  • Picture Modes

    3D
    Bright
    Cinema
    Game
    HDR Game
    HDR10
    HLG
    Living Room
    Sports
    User

Compatibility

Jump to...
  • Input Lag

    16.7ms (1080p@60Hz)

  • Resolution Support

    VGA (640 x 480) to 4K UHD (3840 x 2160)

  • Horizontal Frequency

    15K-135KHz

  • Vertical Scan Rate

    23-120Hz

I/O Interface

Jump to...
  • HDMI in

    HDMI-1 (2.0b/HDCP2.2)
    HDMI-2 (2.0b/HDCP2.2)

  • USB Type A

    USB Type A-1 (2.0/Power Supply2.5A/Service)

  • RS232 in (DB-9pin)

    1x

  • Speaker

    2x 5W Chamber

  • Audio out (3.5mm Mini Jack)

    1x

  • Audio out (S/PDIF)

    Multi-Channel, RAW

Environment

Jump to...
  • Operating Temperature

    32 to 104 Degree F (0 to 40 Degree C)

  • Power Supply

    AC 100 to 240 V
    50/60 Hz

  • Typical Power Consumption (110V)

    140W

  • Stand-by Power Consumption

    <0.5W

  • Acoustic Noise (Typ./Eco.)(dB)

    33/28

Physical

Jump to...
  • Dimensions (W x H x D)

    14.4 x 9.6 x 4.6" (366 x 244 x 118mm)

  • Weight

    7.9 lbs (3.6kg)

1 Accessories for BenQ TH690ST Full HD HDR 4LED Short Throw DLP Projector for Console Gaming

  • All Accessories (1)
  • Laptop Stand (1)

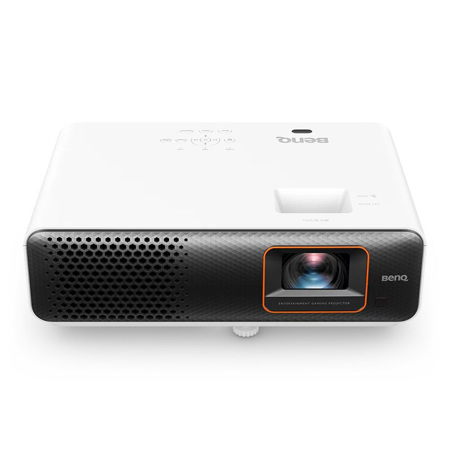

About BenQ TH690ST Full HD HDR 4LED Short Throw DLP Projector - SKU#1636470

Immerse in Fun at Your Game Party
Level up your party fun with epic gameplay. TH690ST does it all with excellent movie industry standard DCI-P3 color performance, stunning 1080p HDR picture quality, low input lag, and 2300 lumens of 4LED long life span. All you need to do is jump into AAA games with your friends and enjoy never-ending, smooth, and immersive action at your game corner.

• 1080p HDR10/HLG
• 84% DCI-P3 / 98% Rec.709
• 8.3ms Low Latency
• Short Throw Projection
• Game Audio Embedded
• S/PDIF Audio Out Supported

Larger-than-Life Vibrant Images
Be amazed by the realistic HDR details on Full HD 1080p projected images that put big screen TVs to shame. Team up with TH690ST and your favorite video game console and lead your team to victory whether on the battlefield or the game courts.

Vibrant In-Game Colors
Enjoy richer, more lifelike colors based on the 84% DCI-P3 color standard for the film industry and 98% Rec.709 color coverage. You will find yourself in the game world, on the race track, or at the battlefield.

Rec. 709 coverage over 100% May Degrade Color Accuracy
A color gamut >100% can lead to color deviation and oversaturation due to overabundant colors. Check for "COLOR COVERAGE," instead of "COLOR GAMUT."

Exclusive Game Modes
Game Mode empowers you to tweak the images for the best display in dark or bright environments, delivering pure clarity and detail for full immersion into the game vibe.

Win Every Time, Smoothly
There's no lag to ruin your game fun. TH690ST banishes lag with 8.3ms response time for smooth gameplay. It's perfect for fast-paced sports, reaction-critical FPS, and timing-dependent battles.

Perfect for All Kinds of Entertainment
Make every moment party time with TH690ST. With the movie industry standard DCI-P3 color coverage, TH690ST is perfect for movies and live sports with brilliantly immersive visual experiences.

Overwhelming Soundstage
TreVolo 5Wx2 chambered speakers provide gamers with powerful sounds, balancing treble, mid, and bass sounds for a rich listening experience.

Fun-Filled Party for Games

Expand Your Gaming Universe
BenQ lets you game on your terms. Whether it's a Sony PS5/PS4, Nintendo Switch, or Xbox Series X, dual HDMI 2.0b universal connectivity has you covered.

• Mobile
• Game Console
• Handheld Game Console
• Laptop
• Blu-ray Player

1.2X Zoom & Short Throw Ratio
Maximize all the fun with BenQ TH690ST. Expand your small game corner with the flexible 1.2X zoom and short throw ratio to project spectacular 100" pictures even if your space is as small as 4.9ft.

2D Keystone for Perfect Alignment
2D keystone eliminates trapezoid effects when projecting from varied room locations for ease and convenience.

Display Every Image at Its Best
Enjoy superior 4LED color brightness, high contrast, and saturation for 10+ years long lamp life of gorgeous gaming quality, with spectacular colors lasting long after you've mastered your current gaming challenges.

BenQ TH690ST Full HD HDR 4LED Short Throw DLP Projector - SKU#1636470 Features

  • 84% DCI-P3 & 98% Rec.709 color coverage, 2300lm, and HDR10 compatibility
  • 8ms (1080p@120Hz) for smooth gameplay
  • Short throw projection for immersive 100" gameplay within 4.9'

What's in the box:

  • BenQ TH690ST Full HD HDR 4LED Short Throw DLP Projector
  • Remote Control with Battery (RCI013)
  • Power Cord
  • User Manual
  • Original Box
