2022-11-03T05:59:46

Rated 5 out of 5

Works really well and will help with our class

Works really well and will help with our class

ACCOUNTS P.

2017-06-09T11:33:37

Rated 5 out of 5

Perfect!

The product was in perfect condition and met the delivery time.

Keith V.

2017-05-16T11:36:18

Rated 4 out of 5

Good - but not without it's issues

As of my time writing this (5/16/2017), there are a few issues with this device, one of them being the most glaring. The biggest issue is one that is a turn-off for many people. The Pro Pen 2 currently has driver issues with the Pro 16, causing wavy lines when drawing slow enough. Is that a deal breaker? Maybe, it depends on your art style. What you need to know, though, is that it is there, and present, and it can be very noticeable at times. If you like taking slow lines, then do not get this at the moment. Or, if you do want to get this still, you can use the Pro Pen 1/Grip Pen and the wavy line issue will be gone. It is solely an issue with the Pro Pen 2 and the Pro 16. It doesn't happen on the Mobile Studio Pro 13 or 16, and it does not happen on the Pro 13. Something to keep in mind. Another issue is that you can't get 4K out of the box on Windows - the minidisplayport cable they give doesn't support 4K, so you'll need to have a cable for that that supports 4K. For me that wasn't too big an issue, but I still wanted to mention it. Those are the issues I see, and honestly other than that, I'm pleased with the device. The biggest thing is just the wavy lines, and it is due to that, that I will not recommend this to anyone yet. After Wacom fixes the wavy line issue with the Pro Pen 2, then I'll be able to recommend it. But for now, if you want to use the Pro Pen 2, hold off on this.

Katherine H.

2017-04-16T08:09:56

Rated 2 out of 5

Definitely missing the "PRO"

I really hoped that this new 16 inch design would be more maneuverable and comfortable than the larger 22" and 24" cintiqs but avoid the tiny icons and low resolution of the 13HD. I also hoped that Wacom would finally introduce a worthwhile touch interface. None of those hopes were realized. Despite being smaller and lighter and more flexible to use on a desk, the thing requires a whole nest of cables to run, so leaning back and putting it in your lap is not happening without making a huge mess. Even the 13HD, with its finicky connection used a single cable and could reasonably be expected to sit in your lap. Despite the higher resolution the icons are still tiny and grainy looking with negligible improvement over the 13 HD. Compared to iPad Pro with Astropad and Surface Pro it looks terrible. Multitouch still sucks regardless if it's on a Mac or a PC (yes I tried both). I don't know how this is so hard for Wacom to get right. Solid multitouch interfaces are everywhere at this point. Even windows laptops have nice multitouch trackpads now. Wacom just can't make that happen. In testing, basic gestures like pinch to zoom work only about 60-70% of the time. I can barely see any improvement over my old intuos 5 tablet. Bottom Line: Ipad pro gives a better pen display experience through Astropad, using a single USB cable than the Cintiq pro can manage with 3 USB C ports in use. I went to a Best Buy and tried out the Surface pro again after installing this Cintiq. In my opinion the Surface had a better drawing feel with less parallax. Either way, Wacom isn't the only name in town anymore and both Microsoft and Apple's options are more versatile and give you a better experience for a better price.

mumblyjoe

Wacom Cintiq Pro 16 Specifications

  • Display Size

    15.6" (37.6cm)

  • Resolution

    Ultra HD (3840 x 2160), 5080 lpi

  • Advanced Control

    8192 levels pen pressure

  • Productivity Boosters

    Time-saving onscreen settings; ExpressKeys, Touch Ring on optional ExpressKey Remote

  • Ergonomics

    Built-in stand (5 deg. w/o legs or 20 deg.w/ legs). Optional 3-position stand available.

  • Compatibility

    Windows Mac

  • Product Type

    Creative Pen Display 16

  • Screen Size (Measured Diagonally)

    37.6 cm / 15.6 in

  • Technology

    IPS UHD high brightness panel
    Patented electromagnetic resonance method

  • Displayable Colors (maximum)

    16.7 million

  • Aspect Ratio

    16:09

  • Viewing Angle

    176 deg. (88 deg./88 deg.) H, (88 deg./88 deg.) V

  • Contrast Ratio

    930:1

  • Brightness

    250 cd/m2

  • Response Rate

    25 ms

  • Active Area

    345 x 194 mm (13.6 x 7.6 in)

  • Color Gamut

    94% Adobe RGB

  • Industry Standard Pre-sets

    6500 deg. K whitepoint default

  • Graphics Input

    USB-C (for optimum performance) or Mini DisplayPort using optional Wacom Link

  • Multi-Touch

    Yes

  • Pen

    Wacom Pro Pen 2

  • Pressure Levels

    8192, both pen tip and eraser

  • Tilt Range

    64 degrees

  • Tilt Recognition

    +/-60 levels

  • Pen Type

    Pressure-sensitive, cordless, battery-free

  • Switches

    Tip switch, 2 side switches, eraser

  • Nibs

    10 (6 standard, 4 felt)

  • Pen Box/ Holder

    Yes - Pen Holder

  • Pen Stand

    Yes

  • Grip

    Latex-free silicone rubber

  • ExpressKeys

    17 customizable, application-specific on optional ExpressKey Remote

  • Touch Ring

    Yes - on optional ExpressKey Remote

  • Touch Strips

    No

  • Rocker Ring And Home Button

    Yes - on optional ExpressKey Remote

  • Radial Menu

    Yes

  • Precision Mode

    Yes - on optional ExpressKey Remote

  • Display Toggle

    Yes - on optional ExpressKey Remote

  • Dedicated Pan, Scroll, Zoom, Brush Size

    Yes - on optional ExpressKey Remote

  • Stand Adjustability

    Integrated pop-out legs for 20 deg. angle; optional detachable 3-angle stand

  • Orientation

    Right or left-handed use

  • Cables Included

    Wacom Link adapter with USB-C, Mini DisplayPort and USB cables

  • PC And Mac Connection

    USB-C (or Mini DisplayPort and USB)

  • Display Connection

    USB-C to USB-C port (or Wacom Link using Mini Display Port and USB port)

  • Peripheral Connections

    USB-C port required for optimum performance (or Mini Display Port and USB)

  • Power Supply Input

    100 to 240 VAC, 50/60Hz

  • Power Supply Output

    20 VDC, 2.25 A (max)

  • Power Consumption

    Max. Power Consumption: 20 W, 3 W or less when asleep 0.5 W or less in sleep mode (USB non-connected) or OFF mode.

  • Security

    Kensington MiniSaver Mobile Lock Slot (lock purchased separately)

  • System Requirements

    PC: Windows7 SP1 or later
    Mac: OS X 10.10 or later, Intel processor, USB-C port for optimum performance (or miniDisplayPort and USB port), internet access

  • Certifications

    VCCI Class B, FCC Part 15 Subpart B (class B) and C, CE, IC ICES-003 and 210, RCM, KCC, BSMI, C-tick, CB, CCC, GOST-R, China RoHS, Korean RoHS, EU RoHS

  • Size

    16.2 x 10.4 x .57" (411.48 x 264.16 x 14.48mm)

  • Weight

    3.3 lbs (1.50kg) without optional stand

About Wacom Cintiq Pro 16 16" Creative Pen & IPS Touchscreen Display - SKU#1644080

FEATURED REVIEWS

Works really well and will help with our class

By ACCOUNTS P.

Works really well and will help with our class

Perfect!

By Keith V.

The product was in perfect condition and met the delivery time.

Create directly on screen with Wacom's most natural pen experience ever
Wacom Cintiq Pro 16 offers their latest Wacom Pro Pen 2 and screen technology - and more space to connect to your work. Whether you work on Mac or PC, Wacom Cintiq Pro is their most advanced creative pen display, built for professional artists and designers.

New Wacom Pro Pen 2: Natural and precise
Our new Wacom Pro Pen 2 will instantly become your favorite creative tool. It's more sensitive, more accurate and more responsive than any pen they have ever made.

• 4x more pressure sensitive
• 4x more accurate
• Virtually no lag
• Natural tilt support
• No parallax
• No batteries or recharging

A resolution revolution
Your work is made to be seen. With stunning 4K resolution (3840x2160) and superb color accuracy (94% of Adobe RGB), you won't be able to take your eyes off it.

The 16-inch screen gives you the broad canvas you need to add those little flourishes; while the anti-glare, etched-glass surface means you can create in comfort - with the familiar feel of pen on paper - until you're 100% happy with the results. With plenty of space for your work and all the on-screen controls and tools you need, it's perfect for creating anything you can imagine.

Introducing their latest feature: time
With Wacom Cintiq Pro you can save precious seconds on every task.

Connect your way

Connect to any Mac or PC with a single USB-C cable (included) to a USB-C port for both video and data. Or use the included Wacom Link adaptor to connect to a mini DisplayPort (video) and standard USB port (data).

Make it match you

Customizable ExpressKeys and Radial menu's mean that Wacom Cintiq Pro can be quickly configured to fit seamlessly into your workflow.

Navigate with a swipe

Pan, zoom or rotate your work with multi-touch gestures - as simple as using your smartphone.

Delight in every detail
If you're passionate about sweating the small stuff, Wacom Cintiq Pro 16 is the device for you. Its larger, high-definition display gives you the ability to hone in on every detail, making it perfect for painting, retouching and page layout. 3840 x 2160px - Adobe RGB 94% - Wacom Pro Pen 2 technology.

Customize your Wacom Cintiq Pro
However you like to work, there's an accessory to make Wacom Cintiq Pro 16 suit you (each sold separately).

Wacom ExpressKey
Wacom ExpressKey Remote's set of 17 customizable buttons and Touch Ring put precious time-saving shortcuts at your fingertips.

Wacom Stand
The new Mobile Stand holds the Cintiq Pro at three different drawing angles, so you'll always find a comfortable working position. When you're ready to move on, it folds flat for easy transport.

Wacom Color Manager
Wacom Color Manager is designed to give you precision color calibration, better image quality and improved uniformity in one easy-to-use device that calibrates everything in your workflow.

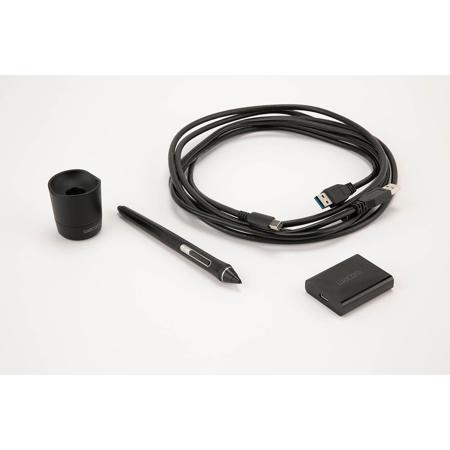

What's in the box:

  • Wacom Cintiq Pro 16 (DTH-1620)
  • Wacom Pro Pen 2
  • Pen Stand
  • Power Cable & Adapter
  • Wacom Link with USB Type-C
  • Mini DisplayPort Cable
  • USB Type-A Cable
  • Item Note: Wacom Pro Pen 2 Color Rings; 10 Replacement Nibs (6 Standard & 4 Felt); Tip Removal Tool; Pen Holder For parts only Final Sale
  • Sold As-is
