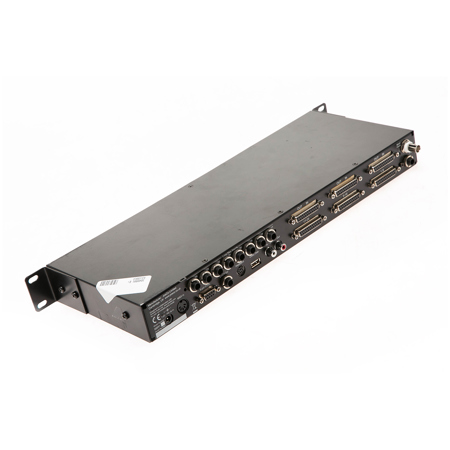

Used JoeCo BlackBox BBR1A Recorder with Lightpipe Digital I/O, Unbalanced

SKU: US1649991

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

JoeCo BBR1A Specifications

  • Sample Rates

    44.1kHz, 48kHz, 88.2kHz, 96kHz

  • Bit depths

    16/24 bit

  • Disk interface

    USB 2.0 - easy to obtain

  • Disk format

    FAT32 - compatible with both Mac and PC

  • File type

    Standard mono Broadcast WAV files

  • Monitoring

    1x 1/4" TRS jack socket, headphone mix / solo

  • Power

    9V-16VDC (<30W). 2.1mm dc inlet. PSU supplied

  • Analogue Inputs

    Levels: -10dBu / +4dBu switchable
    Maximum input level: +22dBu = 0dBFS
    A-D conversion: 24bit, 96kHz
    106dB S/N, 96dB THD+N (typical A-weighted)

  • Analogue Outputs

    Levels: -10dBu / +4dBu switchable
    Maximum output level: +22dBu = 0dBFS
    D-A conversion: 24bit, 96kHz
    106dB S/N, 94dB THD+N (typical A-weighted)

  • Media

    USB 2.0 hard disk (7200RPM recommended)
    USB 2.0 flash drive - 200x minimum (except for MADI and DANTE systems which have more demanding data rates), SHDC (Class 10 with suitable adapter except MADI and DANTE)

  • MIDI

    1x 5-pin DIN (open loop) - MIDI time code (MTC) and MIDI machine control (MMC) protocol

  • JoeCoRemote for iPad

    App + hardware interface for remote control. Wireless or wired connectivity

  • LTC

    1x 1/4" TRS jack socket
    Frame rates supported: 30fps, 29.97drop fps, 29.97non-drop fps, 25fps, 24fps, 23.98fps

  • Machine Control

    1x 9-pin D, SONY PII protocol

  • Audio Clock Synchronization

    2x RCA sockets AES3 / SPDIF Format, also used for communications to slave units

  • Footswitch

    Momentary switch on ring of LTC TRS socket

  • Keyboard

    1x mini DIN PS2 connector, Standard 102 key

  • Rack Height

    1U 19"

  • Dimensions

    425 x 150 x 44mm / 16.73 x 5.91 x 1.73"

  • Weight

    2.1kg / 4.63lbs

About JoeCo BlackBox BBR1A Recorder with Lightpipe Digital I/O, Unbalanced SKU#1649991

Because capturing pristine audio is paramount in professional settings, the JoeCo BlackBox BBR1A Recorder with Lightpipe Digital I/O, Unbalanced, stands out as an advanced and sophisticated tool for audio professionals. This high-tech, innovative recorder is meticulously engineered to address the challenges of recording in live environments, where computer-based systems often fall short.

The BlackBox BBR1A Recorder is a professional-grade, multi-channel recording solution, ideal for live performance capture, broadcast, film and TV sound, as well as post-production work. With the capability to record or replay up to 24 channels of 24-bit/96kHz audio, this device ensures that every nuance of your live audio is captured with exceptional clarity and depth.

This model boasts a Lightpipe Digital I/O, providing seamless integration with digital mixing consoles that support Lightpipe (TOSLINK) inputs and outputs. The inclusion of three 8-channel Lightpipe inputs and outputs allows for a direct interface with high-quality A-D converters, ensuring a versatile and unbalanced audio connection for a wide array of professional applications.

The BlackBox BBR1A Recorder is designed for ease of use, requiring minimal setup with straightforward input and output connections, power, and a USB drive to commence recording. The intuitive full-color LCD screen and vivid LED displays provide real-time feedback, ensuring you are fully informed of the recording status at a glance.

Remote control and monitoring are made possible via the JoeCoRemote app for iPad, adding a layer of convenience and flexibility to your recording sessions. Additionally, recordings can be named directly on the device using a standard computer keyboard or through the JoeCoRemote app.

This recorder is fortified with robust fail-safe features, including file recovery in the event of a power failure during recording, safeguarding your valuable audio data. The universal file and disk formats used for external storage solutions expedite the process of importing recorded files into any Mac- or PC-based Digital Audio Workstation for further editing, remixing, and repurposing.

For those seeking even more functionality, an optional software add-on transforms the BlackBox BBR1A Recorder into a BlackBox Player, enabling synchronous or instant playback of audio material for a variety of applications.

The BlackBox BBR1A Recorder with Lightpipe Digital I/O, Unbalanced, is an indispensable asset for professionals who demand reliability, quality, and versatility in their audio recording equipment. Its sophisticated design and professional-grade features make it a top choice for capturing high-fidelity audio in any demanding live or studio environment.

JoeCo BlackBox BBR1A Recorder with Lightpipe Digital I/O, Unbalanced SKU#1649991 Features

  • Records up to 24 channels at 24 Bit / 96 kHz
  • Records audio in Broadcast WAV format onto a regular USB 2.0 disk drive, USB Flash drive (FAT32 formatted), or SDHC card via USB 2.0 connector. Built-in formatting facility included
  • Enables direct import of recorded audio files from the hard drive to any Mac or PC-based DAW for instant editing and remixing. No file transfer or conversion necessary
  • Is simple to operate via a sleek front panel menu-driven user interface and touch sensitive controls
  • Supports Linear Time Code, MIDI time code and SONY PII (9-pin) control, MIDI Machine Control and AES / SPDIF word clock
  • Can attach to the insert points of any live console to provide Virtual Sound Check facilities
  • Includes "fail safe" features for secure audio capture such as playback lockout and preventing accidental Stop
  • Allows the creation of headphone monitoring mixes, with level and pan on each track
  • Features a QWERTY keyboard interface and Name Manager for easily creating templates and modifying track or song names
  • Offers enhancements for film, TV and broadcast applications including support for 23.98fps time code, improvements to 9-pin support for edit controllers and support for iXML
  • Lightpipe I/O via 3x TOSLINK inputs and 3x TOSLINK outputs (24 channels at 48k, 12 channels at 96k). Word clock input on BNC. Unbalanced analogue as BBR1U (cable looms not supplied)

What's in the box:

  • JoeCo BlackBox BBR1A Recorder
  • External Power Supply
