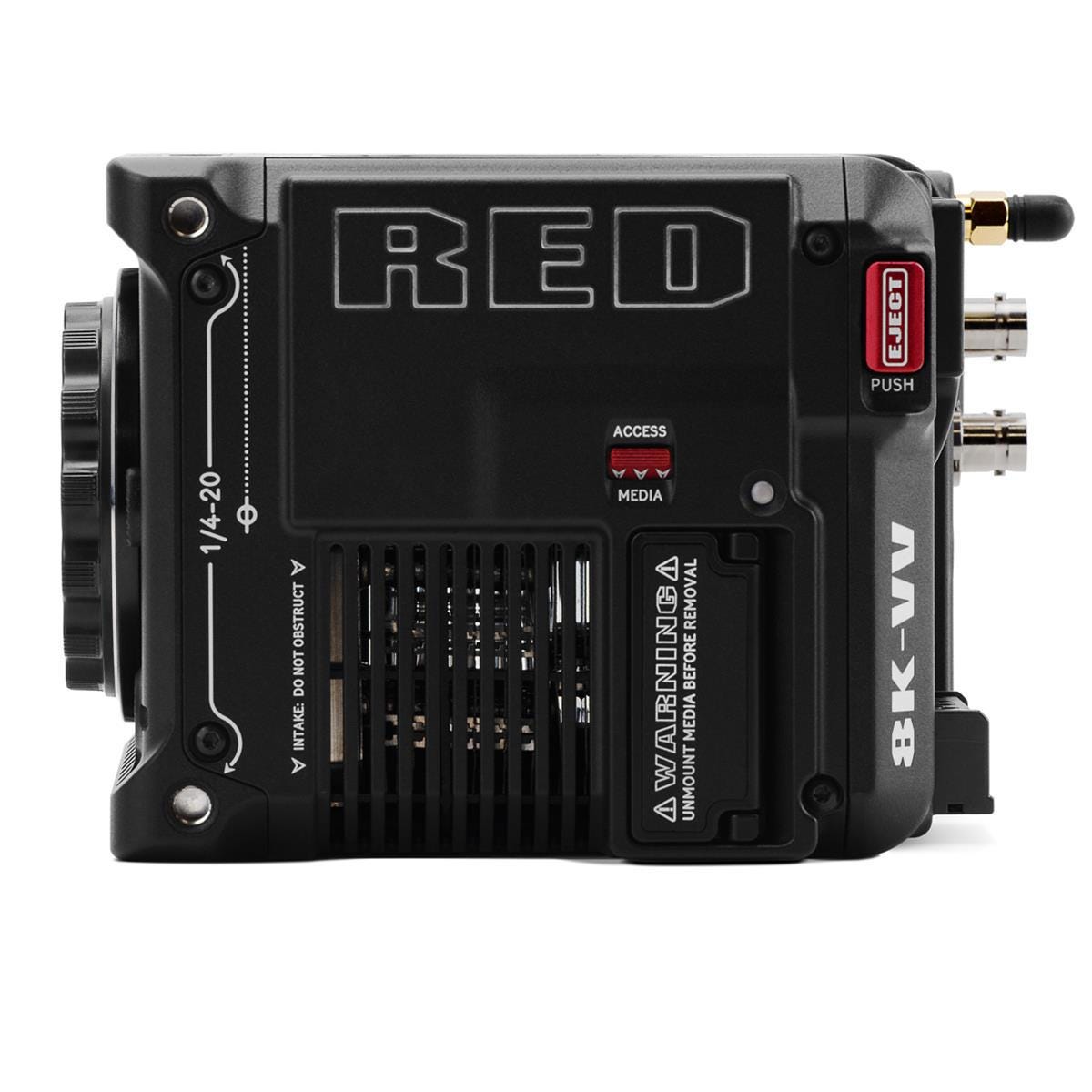

RED V-RAPTOR ST 8K VV DSMC3 Camera - Canon RF, Black (11 Hours) SKU#1650694

Picture does not represent the actual item
See what's in the box

See all Red Digital Cinema items

Used RED Digital Cinema V-RAPTOR ST 8K VV DSMC3 Camera, Canon RF, Black (11 Hours)

SKU: US1650694

This item is no longer available.

Buy it New

RED Digital Cinema V-RAPTOR ST 8K VV DSMC3 Camera, Canon RF, Black
RED Digital Cinema V-RAPTOR ST 8K VV DSMC3 Camera, Canon RF, Black
$18995.00
Overview
Compare
Accessories
Learn
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

RED Digital Cinema V-RAPTOR ST Specifications

  • Material

    Aluminum Alloy

  • Sensor Type

    V-RAPTOR 8K VV 35.4 Megapixel CMOS

  • Effective Pixels

    8192 x 4320

  • Sensor Size

    40.96 x 21.6mm (Diagonal: 46.31mm)

  • Dynamic Range

    17+ stops

  • Mount Type

    Integrated RF mount with RF lens support
    Supports Canon EF lenses via compatible Canon RF to EF mount adapters
    Accepts other Canon RF mount-based lens adapters for diverse lens choices

  • Max Data Rates

    Up to 800 MB/s using RED branded or other qualified CFexpress media cards

  • REDcode Raw Max Frame Rates

    120 fps at 8K 17:9 (8192 x 4320), 150 fps at 8K 2.4:1 (8192 x 3456)
    140 fps at 7K 17:9 (7168 x 3780), 175 fps at 7K 2.4:1 (7168 x 3024)
    160 fps at 6K 17:9 (6144 x 3240), 200 fps at 6K 2.4:1 (6144 x 2592)
    192 fps at 5K 17:9 (5120 x 2700), 240 fps at 5K 2.4:1 (5120 x 2160)
    240 fps at 4K 17:9 (4096 x 2160), 300 fps at 4K 2.4:1 (4096 x 1728)
    320 fps at 3K 17:9 (3072 x 1620), 400 fps at 3K 2.4:1 (3072 x 1296)

  • REDcode Raw Max Frame Rates (Contd.)

    480 fps at 2K 17:9 (2048 x 1080), 600 fps at 2K 2.4:1 (2048 x 864)

  • Best Available REDcode Settings

    REDCODE HQ, MQ and LQ at 8K 17:9 (8192 x 4320) up to 60 fps
    REDCODE LQ at 8K 17:9 (8192 x 4320) up to 120 fps
    REDCODE HQ, MQ and LQ at 6K 17:9 (6144 x 3240) up to 96 fps
    REDCODE MQ and LQ at 6K 17:9 (6144 x 3240) up to 160 fps
    REDCODE HQ, MQ and LQ at 4K 17:9 (4096 x 2160) up to 240 fps
    REDCODE HQ, MQ and LQ at 2K 17:9 (2048 x 1080) up to 480 fps

  • REDCODE RAW Acquisition Formats

    8K 17:9 (8192 x 4320), 2:1, 2.4:1, 16:9, 1:1 and Anamorphic 2x, 1.8x, 1.6x, 1.5x, 1.3x, 1.25x
    7K 17:9 (7168 x 3780), 2:1, 2.4:1, 16:9, 1:1 and Anamorphic 2x, 1.8x, 1.6x
    6K 17:9 (6144 x 3240), 2:1, 2.4:1, 16:9, 1:1 and Anamorphic 1.5x, 1.3x, 1.25x
    5K 17:9 (5120 x 2700), 2:1, 2.4:1, 16:9, 1:1
    4K 17:9 (4096 x 2160), 2:1, 2.4:1, 16:9, 1:1
    3K 17:9 (3072 x 1620), 2:1, 2.4:1, 16:9, 1:1
    2K 17:9 (2048 x 1080), 2:1, 2.4:1, 16:9, 1:1

  • Battery

    Integrated V-Lock battery interface optimized for Micro V-Lock Batteries

  • DC Power Input

    11-17V via 6-pin DC-IN

  • Operating Temperature

    32 Degree F to 104 Degree F (0 Degree C to 40 Degree C)

  • Storage Temperature

    -4 Degree F to 122 Degree F (-20 Degree C to 50 Degree C)

  • Storage Relative Humidity

    0% to 85% non-condensing

  • Color Management

    Image Processing Pipeline 2 (IPP2)
    Supports 33 x33 x33 3D LUTs
    Supports import of CDLs

  • Audio

    Integrated dual channel digital mono microphones, uncompressed, 24-bit 48 kHz
    Integrated dual channel mic/line/+48V input via 5-pin Audio Port, uncompressed, 24-bit 48 kHz

  • Remote Control

    Wi-Fi for camera control via interchangeable dual band (2.4 GHz/5 GHz) antenna mounted to a female RP-SMA connector
    Genlock, Timecode-in, GPIO and Ctrl (RS-232) via the integrated 9-pin EXT Port
    Wired control via USB-C or Gigabit Ethernet (compatible USB-C to Ethernet adapter required) allowing remote camera control, live MJPEG preview video feed and remote media offload

  • Monitor Outputs

    Integrated dual 12G-SDI with 6G-SDI, 3G-SDI and 1.5G-SDI modes
    12G-SDI: Up to 4096 x 2160 4:2:2 for 60p
    6G-SDI: Up to 4096 x 2160 4:2:2 for 30p, 25p, 24p
    3G-SDI: Up to 2048 x 1080 4:2:2 for 60p
    1.5G-SDI: Up to 2048 x 1080 4:2:2 for 30p, 25p, 24p
    SMPTE Timecode, HANC Metadata, 24-bit 48 kHz Audio

  • Monitor Options

    DSMC3 RED Touch 7.0" LCD
    Wireless 1080p live preview video feed via 2.4Ghz/5Ghz Wi-Fi for framing
    Integrated 2.4" LCD for camera control (no preview video)

  • RED Control

    Access full camera controls and live preview from iOS or Android devices
    Available from the Apple App Store and Google Play Store. RED Control works wirelessly or wired via USB-C

  • Battery Info

    Required, not included

  • Battery Material

    lithium ion

  • Battery Type

    non-universal

  • Battery Quantity

    1

  • Weight

    4.03 lbs (1.8kg) (without body cap and CFexpress card)

Related Articles & Videos

RED Announces V-RAPTOR Camera with 8K Capabilities

RED Announces V-RAPTOR Camera with 8K Capabilities

RED recently released its first entrant in the DSMC3 generation starting with a live YouTube Q&A. During the livestream, RED customers were introduced to the newest flagship camera and sensor in th...

Read more

77 Accessories for RED Digital Cinema V-RAPTOR ST 8K VV DSMC3 Camera, Canon RF, Black (11 Hours)

  • All Accessories (77)
  • Batteries & Power Supply (10)
  • Grips & Handles (1)
  • Memory Cards (1)
  • Card Readers (1)
  • Monitor & Recorder (3)
  • Flash & Lighting (55)
  • Microphones & Audio (3)
  • Viewfinder Accessories (2)
  • Viewfinders (1)
RED Digital Cinema REDVOLT MICRO-V 98Wh 12A V-Mount Rechargeable Li-Ion Battery
RED Digital Cinema REDVOLT MICRO-V 98Wh 12A V-Mount Rechargeable Li-Ion Battery
$162.50
Recommended
RED Digital Cinema Compact Dual V-Lock Charger
RED Digital Cinema Compact Dual V-Lock Charger
$125.00
Recommended
Core SWX Helix Max 275 275Wh Native Dual Voltage Lithium-Ion Battery, B-Mount
Core SWX Helix Max 275 275Wh Native Dual Voltage Lithium-Ion Battery, B-Mount
$825.00
Recommended
Core SWX Helix Max 360 367Wh Native Dual Voltage Lithium-Ion Battery, B-Mount
Core SWX Helix Max 360 367Wh Native Dual Voltage Lithium-Ion Battery, B-Mount
$539.00
Recommended
Core SWX Helix 9 Max 98Wh 14.8V V-Mount Lithium-Ion Battery Pack
Core SWX Helix 9 Max 98Wh 14.8V V-Mount Lithium-Ion Battery Pack
$389.00
Recommended
Core SWX Helix 9 Max 98Wh 14.8V Gold Mount Lithium-Ion Battery Pack
Core SWX Helix 9 Max 98Wh 14.8V Gold Mount Lithium-Ion Battery Pack
$389.00
Recommended
Core SWX Helix 9 Max 98Wh 14.8V B-Mount Lithium-Ion Battery Pack
Core SWX Helix 9 Max 98Wh 14.8V B-Mount Lithium-Ion Battery Pack
$369.00
Recommended
Core SWX Helix Max 150 148Wh Dual Voltage V-Mount Li-Ion Battery
Core SWX Helix Max 150 148Wh Dual Voltage V-Mount Li-Ion Battery
$449.00
Recommended
Core SWX Helix Max 150 148Wh Dual Voltage Gold Mount Li-Ion Battery
Core SWX Helix Max 150 148Wh Dual Voltage Gold Mount Li-Ion Battery
$449.00
Recommended
Core SWX Helix Max 150 148Wh Dual Voltage B-Mount Li-Ion Battery
Core SWX Helix Max 150 148Wh Dual Voltage B-Mount Li-Ion Battery
$449.00
Recommended
RED Digital Cinema V-RAPTOR Wing Grip
RED Digital Cinema V-RAPTOR Wing Grip
$120.00
Recommended
RED Digital Cinema PRO 660GB CFexpress 2.0 Type-B Memory Card
RED Digital Cinema PRO 660GB CFexpress 2.0 Type-B Memory Card
$799.99
Recommended

About RED V-RAPTOR ST 8K VV DSMC3 Camera - Canon RF, Black (11 Hours) SKU#1650694

RED Digital Cinema V-RAPTOR ST.

V-RAPTOR ST 8K VV is the most powerful and advanced RED cinema camera ever. As the brand's new flagship system and sensor, as well as the first entrant into the new DSMC3 generation of cameras, V-RAPTOR stands alone at the forefront of the of digital image capture technology.

Cinema Quality Video In Breathtaking 8K.

Featuring a groundbreaking multi-format 8K sensor- with the ability to shoot 8K Large Format or 6K S35, it unlocks the largest lens selection of any comparable camera on the market and allows shooters the ability to always deliver at over 4K. The sensor also boasts the highest recorded dynamic range of any RED camera and the fastest ever cinema quality scan time. With a dynamic range of over 17 stops and featuring scan times 2x faster than any previous RED camera, allowing users to capture up to 600 fps at 2K. V-RAPTOR will also continue to feature RED's proprietary REDCODE RAW codec, allowing users to capture 16-bit RAW, and leverage RED's latest IPP2 workflow and color management.

Cinema Quality Video In Breathtaking 8K.

Lightweight, Powerful Machine. For Film Or Livestream.

Along with a new flagship sensor, the V-RAPTOR features a modernized platform in an amazingly compact package weighing in at barely over 4 lbs. With 2 4K 12G-SDI outputs, XLR audio and phantom power via adapter, and 1080p livestream, this system can handle most anything a shooter can throw at it.

Lightweight, Powerful Machine. For Film Or Livestream.

150W DSMC AC Power Adapter Pack.

The DSMC AC Power Adapter Pack provides power through DC IN power port. Included items:
• DSMC AC Power Adapter 150W (12')
• Mini World Travel Adapter

Note: The DSMC and DSMC2 camera systems do not have a DC IN power port. A port expander or power module is required to power the camera.
DSMC AC Power Adapter Pack is not compatible with RED ONE, RED RANGER or KOMODOcamera systems.

150W DSMC AC Power Adapter Pack.

Features.

  • Lightweight & Compact DSMC3 Design
  • Up to 8K120 17:9, 6K198 S35 & 4K240 17:9
  • 35.4MP Full-Frame, Rolling Shutter CMOS
  • 17+ Stops Dynamic Range
  • Compact Micro-V Batteries
  • Canon RF Lens Support
  • CFexpress 2.0 Type-B Card
  • REDCODE Raw HQ, MQ & LQ Options
  • Right-Side LCD Screen User Interface
  • USB Type-C & Dual 12G-SDI Ports

Used Guarantee

30-day money back!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • RED Digital Cinema V-RAPTOR ST 8K VV 35.4MP DSMC3 Camera
  • 150W DSMC AC Power Adapter Pack
  • International Adapters
  • Original Box
  • Item Note: Missing V-RAPTOR Information Card; RED Logo Sticker
