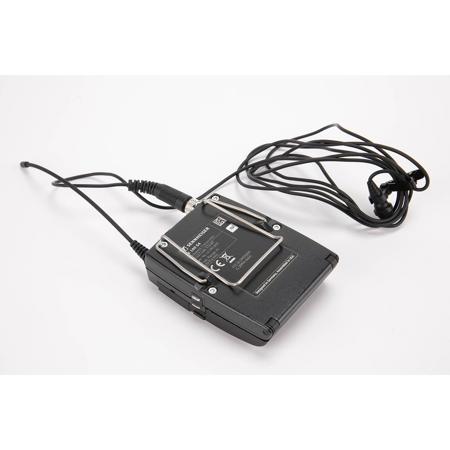

Name: Used Sennheiser SK 100 G4 Bodypack Transmitter, A1: 470 - 516 MHz undefined
Brand: Sennheiser
SKU: US1651265
Price: 159.00 USD
Availability: Discontinued

Sennheiser SK 100 G4 Bodypack Transmitter, A1: 470 - 516 MHz

Sennheiser SK 100 G4

Sennheiser

Buy it <b>New</b>

Sennheiser SK 100 G4 Bodypack Transmitter - A1: 470-516 MHz SKU#1651265

Adorama

Used

Audio

Microphones

Wireless Microphones

Wireless Transmitters & Receivers

Sennheiser Wireless Transmitters & Receivers

Sennheiser SK 100 G4

Buy: Used Sennheiser SK 100 G4 Bodypack Transmitter, A1: 470 - 516 MHz undefined

Robust bodypack transmitter for daily use on stage with evolution wireless G4 100 G4 systems. Architech's SpecificationThe compact bodypack transmitter is for use with a companion receiver as part of a wireless RF transmission system. The transmitter operates within twelve UHF frequency ranges, with a switching bandwidth of up to 42 MHz: 470 - 516 MHz, 516 - 558 MHz, 520 - 558 MHz, 566 - 608 MHz, 606 - 648 MHz, 626 - 668 MHz, 734 - 776 MHz, 780 - 822 MHz, 823 - 865 MHz, 806 - 810 MHz, 925 - 937.5 MHz, 1785 - 1800 MHz; transmission frequencies shall be 1,680 per range and shall be tunable in 25 kHz steps. The transmitter features 20 fixed frequency banks with up to 12 compatible frequency presets and 1 user bank with up to 12 user programmable frequencies. The transmitter is menu-driven with a backlit LCD display showing the current frequency, frequency bank and channel number, metering of AF level, transmission status, lock status, pilot tone transmission, muting function, and battery status. An auto-lock feature is provided to prevent settings from being accidentally altered. The transmitter parameters is either configurable in the associated receiver's menu and synchronized with the transmitter via an integrated infrared interface or is programmable in the transmitter menu. The transmitter is equipped with a mute switch, which is switchable between "AF on/off", "RF on/off" and "Disabled" via the user interface. The transmitter incorporates the Sennheiser HDX compander system and a defeatable pilot tone squelch. Audio frequency response ranges from 80 - 18,000 Hz (microphone) or 25 - 18,000 Hz (line). Signal-to-noise ratio at 1 mV and peak deviation is >= 110 dBA. Total harmonic distortion (THD) is  Power is supplied to the transmitter by two 1.5 V AA size batteries or by one Sennheiser BA 2015 rechargeable accupack. Nominal voltage is 2.4 V for a rechargeable battery or 3 V for a battery, current consumption is typical 180 mA at nominal voltage;  The transmitter is the Sennheiser SK 100 G4.

Used Sennheiser SK 100 G4 Bodypack Transmitter, A1: 470 - 516 MHz

Buy it New

Sennheiser SK 100 G4 Bodypack Transmitter, A1: 470 - 516 MHz
