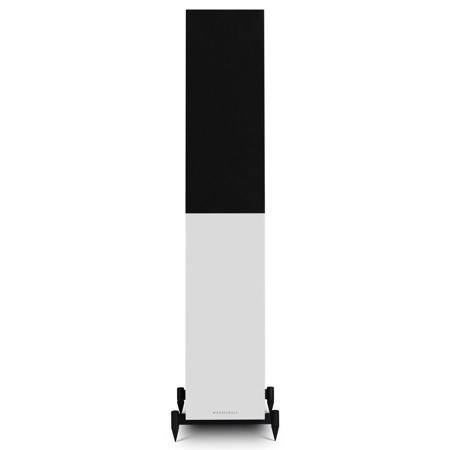

Used Wharfedale Diamond 12.3 Dual 5" 2.5-Way Tower Floor Standing Speaker, Light Oak

SKU: US1651657

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Wharfedale Diamond 12.3 Specifications

  • Color/Finish

    Light Oak

  • Speaker Type

    2.5-way Floor Standing Speaker

  • Enclosure type

    Bass reflex

  • Bass Driver

    5" (130mm) Advanced PP cone

  • Midrange driver

    5" (130mm) Advanced PP cone

  • Treble Drive

    1" (25mm) Textile Dome

  • AV shield

    No

  • Sensitivity (2.83V @ 1m)

    87.5dB

  • Recommended amp power

    30-150W

  • Peak SPL

    102dB

  • Nominal impedance

    8 Ohm compatible

  • Minimum Impedance

    4.6 Ohm

  • Frequency Response (+/-3dB)

    45Hz-20kHz

  • Bass Extension (-6dB)

    40Hz

  • Crossover Frequency

    2.2kHz

  • Cabinet Volume

    26.6L

  • Dimensions (H x W x D)

    38.38 x 7.08 x 13.70" (975 x 180 x 348mm)

  • Weight

    42.99 lbs (19.5kg) (Each)

About Wharfedale Diamond 12.3 Dual 5" 2.5-Way Tower Floor Standing Speaker SKU#1651657

An epitome of style and sophistication, the Diamond 12.3 Dual 5" 2.5-Way Tower Floor Standing Speaker in Light Oak is a testament to Wharfedale's commitment to high-quality audio equipment. This speaker, a part of the renowned DIAMOND series, continues the legacy of delivering exceptional sound quality at an affordable price point.

The DIAMOND series, a stalwart in the audio industry for over 38 years, has consistently been recognized for its excellence and innovation. The latest addition, the DIAMOND 12 series, is no exception. Developed in collaboration with world-renowned loudspeaker designer Karl-Heinz Fink, this speaker combines a contemporary design with the distinctive Wharfedale aesthetic, setting a new benchmark in the budget audio equipment category.

The Diamond 12.3 speaker features the new Klarity cone material, a blend of Polypropylene and mica, which adds stiffness and reduces flexing for a lightning-fast response. The cone is fitted with a low-damping surround, achieving low coloration and expressive dynamics. This balance of design and material choice results in a speaker that delivers a flat response curve without the need for a high-damping surround.

The precision-made magnet system with an aluminum compensation ring minimizes the effect of variations in inductance as the voice coil travels, resulting in reduced distortion and intermodulation. The voice coil itself is wound on a high-power epoxy/glass fiber bobbin, a feature uncommon in speakers at this price level, delivering greater power handling and rigidity.

The 25mm dome, made from a woven polyester film with a high-loss coating, delivers open and smoothly extended high frequencies. The magnet system and the front plate have been optimized for wide dispersion and uncompressed behavior, ensuring a superior sound experience.

The speaker's crossover network uses an acoustic LKR 24dB topology, including air core inductors typically found in high-end speakers. This design choice results in fast, clean bass with no distortion from the inductor. The cabinet features Intelligent Spot Bracing, connecting opposite walls with a specific form of wood brace for optimal reduction of cabinet resonance.

Finished in a choice of black, white, light oak, or walnut, the Diamond 12.3 Dual 5" 2.5-Way Tower Floor Standing Speaker is not just an audio device, but a statement piece that adds elegance to any space. Whether you're a music enthusiast or a casual listener, this speaker promises to enhance your audio experience.

Wharfedale Diamond 12.3 Dual 5" 2.5-Way Tower Floor Standing Speaker SKU#1651657 Features

  • Klarity affords focus - NEW Klarity cone material
  • A Magnet of forces - A precision-made magnet system with an aluminum compensation ring
  • A voice coil beyond this class - The voice coil is wound on a high-power epoxy/glass fiber bobbin
  • DIAMOND Highs - The 25mm dome is made from a woven polyester film with a high-loss coating
  • A crossover of style - The crossover network uses an acoustic LKR 24dB topology
  • Intelligent Spot Bracing connects opposite walls with a specific form of wood brace
  • Always on trend - Finished in Light Oak

What's in the box:

  • Diamond 12.3 Dual 5" 2.5-Way Tower Floor Standing Speaker (Light Oak)
  • Grille
  • 4x Spikes
  • Original Box
