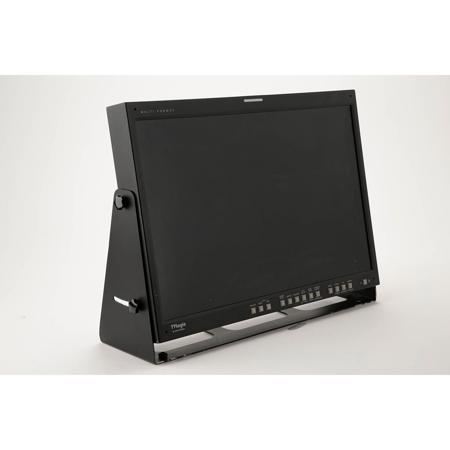

TVLogic XVM-245W 24" 10-bit Color Critical LCD Monitor - SKU#1654452
TV Logic XVM-245W: Picture 1 thumbnail
TV Logic XVM-245W: Picture 2 thumbnail
TV Logic XVM-245W: Picture 3 thumbnail
TV Logic XVM-245W: Picture 4 thumbnail
TV Logic XVM-245W: Picture 5 thumbnail
TV Logic XVM-245W: Picture 6 thumbnail
See all TV Logic items
$35 PRICE DROPUsed Condition: For Parts

Used TVLogic XVM-245W 24" 10-bit Color Critical LCD Monitor

Item Note: Monitor Severely Damaged. Large Cracks with Bleeding All Over Monitor Renders Unusable.May Have Additional Issues. Cosmetic Condition X. SOLD AS-IS; FOR PARTS ONLY; FINAL SALE

SKU: US1654452 MFR: XVM-245W
Be the first to review this item
$234.00
$269.00
Save: $35 (13%)
OR
$39/mo suggested payments with 6‑month special financing. Learn how.
Earn VIP Reward Points
See all Used options (1) from $234

What`s in the box:

  • TVLogic XVM-245W 24" 10-bit Color Critical LCD Monitor ** Item Note: Monitor Severely Damaged. Large Cracks with Bleeding All Over Monitor Renders Unusable.May Have Additional Issues. Cosmetic Condition X. SOLD AS-IS; FOR PARTS ONLY; FINAL SALE **
Calculate Shipping

See Options

Add to List

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

TV Logic XVM-245W Specifications

  • LCD Size

    24"

  • Resolution

    1920 x 1200 (16: 10)

  • Pixel Pitch

    0.270 (H) x 0.270 (W) mm

  • Color

    1,073,741,824 colors (true 10bit )

  • Viewing Angle

    178deg.(H) / 178deg.(V)

  • Luminance of White

    80 cd/m2 at Center (Max. 250cd/m2)

  • Contrast ratio

    1000:1

  • Display Area

    518.4(H) x 324.0(V) mm

  • Input

    1 X DVI-I: DVI IN
    3 X BNC: Analog Input
    2X BNC: SDI A / B Channel Input
    1 X HDMI: HDMI Input
    1 X BNC: EXT SYNC INPUT

  • Output

    3 x BNC: Analog (Passive Loop Through)
    2 x BNC: SDI A/B Channel Output (Active Loop Through)
    1 x BNC: External Sync. Output

  • Input Signal

    Analog: Composite / S-Video / Component / RGB
    3G-SDI: 2.970Gbps
    HD-SDI: 1.485Gb/s
    SD-SDI: 270Mbps
    DVI: VESA/IBM Modes
    HDMI: 480i/480 p/720p/1080i /1080 p& VESA/IBM Modes

  • Analog Input Signal Formats

    Composite: 1.0Vpp (With Sync)
    S-Video: 1.0Vpp (Y With Sync),0.286Vpp (C)
    Component Video: 1.0Vpp (Y With Sync), 0.7Vpp (Pb, Pr)
    RGB: 1.0Vpp (G With Sync), 0.7Vpp (B,R)

  • SDI Input Signal Formats 1

    SMPTE-425M-A/B: 1080p (60/59.94/50/30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF) / 1080i (60/59.94/50)
    SMPTE-372M (Dual Link): Dual HD-SDI YPbPr(4:2:2): 1080p(60/59.94/50)
    Dual HD-SDI YPbPr/RGB(4:4:4): 1080i(60/59.94/50); 1080p(30/29.97/25/24/24sF/23.98/23.98sF)
    SMPTE-274M: 1080i (60 / 59.94 / 50)
    1080p (30/29.97/25/24/24sF/23.98/23.98sF)

  • SDI Input Signal Formats 2

    SMPTE-296M: 720p (60/59.94/50)
    SMPTE-260M: 1035i (60/59.94)
    SMPTE-125M: 480i (59.94)
    ITU-R BT.656: 576i (50)
    2K Format: 2048 x 1080p (24/24sF/23.98/23.98sF)

  • Audio IN

    Embedded Audio / Analog stereo (Phone Jack)

  • Audio OUT

    Internal Speaker (Stereo) Analog stereo (Phone Jack)

  • Power

    DC 24V / AC 100 - 240 V

  • Power Consumption (Approx.)

    77 Watts( Typ.)

  • Operating Temperature

    0 deg.C to 40 deg.C (32 deg.F to 104 deg.F )

  • Storage Temperature

    -20 deg.C to 60 deg.C (-4 deg.F to 140 deg.F )

  • Dimensions

    Without Stand: 552.5 x 389 x 95 mm / 21.75 x 15.31 x 3.74"
    With Stand: 584 x 417 x 150 mm/ 23.00 x 16.41 x 5.90"

  • Weight

    11 Kg / 24.2 lb

About TVLogic XVM-245W 24" 10-bit Color Critical LCD Monitor - SKU#1654452

The TVLogic XVM-245W utilizes a high-purity RGB Matrix LED backlight array to reproduce the most accurate color possible on an LCD. The XVM-245W meets most of EBU grade 1 specifications for color critical monitors while retaining all of the broadcast features found in the popular LVM series. The XVM-245W features an integrated 3D LUT and supports import and export of popular color grading application LUT formats.

TVLogic XVM-245W 24" 10-bit Color Critical LCD Monitor - SKU#1654452 Features

  • 1920 x 1080 Native HD Resolution (Panel Resolution 1920 x 1200)
  • 10 bit - 1.07 Billion Colors Support
  • High-Purity Precision RGB Matrix LED Backlight Array
  • 2 x HD/SD SDI inputs
  • 1 x DVI-I input (W/HDCP) and 1 x HDMI input (W/HDCP)
  • Analog Component/Composite/S-Video/RGB Inputs
  • 1:1 Pixel Mapping Modes for SD/HD
  • Audio Disembedder & Speakers
  • Optional 19" Rack Mount Kit available (also VESA compatible)
  • Supports TVLogic Color Calibration Utility for proper color alignment
  • Dual-Link/3G Mode - 4:4:4/1080p/60 compatible
  • Matte Finish Panel
  • Waveform/Vector Scope (Line selectable)
  • Supports External Sync input
  • Supports 3D LUT & Adjustable Gamma (1.0 to 3.0) and user defined
  • Supports 3rd party 3D LUT formats for import and export
  • Supports Multi-point Calibration for RGB and White uniformity correction
  • Timecode Display (VITC/VTC), Dynamic UMD Display
  • Closed Caption: CEA-608/708
  • Embedded Audio Level Meter (16 Ch)
