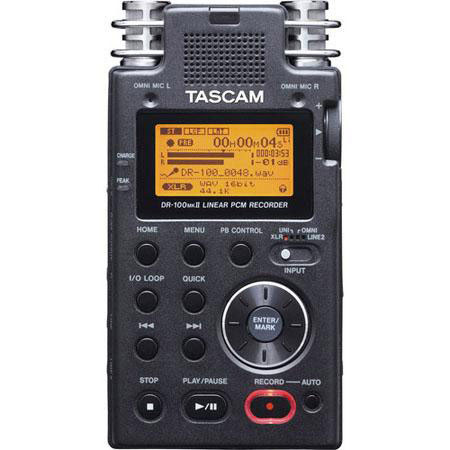

Tascam DR-100mkII - Portable 2-Channel Linear PCM Recorder

Picture does not represent the actual item
See what's in the box

See all Tascam items

Used Tascam DR-100mkII - Portable 2-Channel Linear PCM Recorder

SKU: US1656183

This item is no longer available.

Recommended Items

Tascam DR-60D MKII Recorder: Picture 1 regular
Tascam DR-60D MKII Portable Recorder for DSLR With Accessory Bundle
$240.99
Tascam : Picture 1 regular
Tascam DR-100 Portable Digital MP3/WAV Recorder/Player - SKU#1941617
$84.00
Tascam DR-60D MKII Recorder: Picture 1 regular
Tascam DR-60D MKII Portable Recorder for DSLR
$299.00$179.00
Tascam DR-60D MKII Recorder: Picture 1 regular
Tascam DR-60D MKII Portable Recorder for DSLR With 32GB SDHC Card/4AA Ni-MH Batt
$240.99
Tascam DR-10L Pro: Picture 1 regular
Tascam DR-10L Pro 32-Bit Float Digital Audio Recorder with Lavalier Mic, Black
$199.00$149.00
Tascam DR-05XP: Picture 1 regular
Tascam DR-05XP 2-Channel 32-Bit Float Portable Handheld Audio Recorder w/USB-C
$149.00$119.00
Tascam DR-40X: Picture 1 regular
Tasacam DR-40X Four-Track Digital Audio Recorder and USB Audio Interface
$279.00$179.00
Tascam DR-07XP: Picture 1 regular
Tascam DR-07XP 2-Channel 32-Bit Float Portable Handheld Audio Recorder w/USB-C
$209.00$159.00
Tascam DR-70D: Picture 1 regular
Tascam DR-70D 4-Channel Audio Recorder for DSLR Cameras With Accessory Bundle
$279.99
Tascam DR-70D Recorder: Picture 1 regular
Tascam DR-70D 4-Channel Audio Recorder for DSLR Cameras W/Headphones/ 2x Cables
$352.89$309.99
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Browse our FAQ

See Terms & Conditions

Tascam DR-100 Mark II Recorder Specifications

  • Recording Media

    SD card (64MB-2GB), SDHC card (4GB-32GB)

  • File System

    FAT16/32

  • File Format

    WAV, MP3

  • Recording/Playback Format: WAV

    44.1/48/96 (HS mode) kHz, 16/24-bit

  • Recording/Playback Format: MP3

    44.1/48kHz, 32/64/96/192/256/320kbps

  • Number of Channels

    2 channels (stereo)

  • Playback Speed Control (VSA)

    -50% - +16% (1% step)

  • MIC/LINE 1 IN (Phantom Power Compatible)

    XLR-3-31 (1: GND, 2: HOT, 3: COLD)

  • MIC: Input Impedance

    2.1kOhms

  • MIC: Nominal Input Level

    -14dBu

  • MIC: Maximum Input Level

    +2dBu

  • LINE 1: Input Impedance

    2.5kOhms

  • LINE 1: Nominal Input Level

    +4dBu

  • LINE 1: Maximum Input Level

    +24dBu

  • LINE 2 IN: Connector

    1/8" (3.5mm) stereo mini jack

  • LINE 2 IN: Input Impedance

    22 kOhms or more

  • LINE 2 IN: Nominal Input Level

    -10dBV

  • LINE 2 IN: Maximum Input Level

    +6dBV

  • LINE OUT: Connector

    1/8" (3.5mm) stereo mini jack

  • LINE OUT: Output Impedance

    200 kOhms

  • LINE OUT: Nominal Output Level

    - 14dBV

  • LINE OUT: Maximum Output Level

    +6dBV

  • Headphone Output

    1/8" (3.5mm) stereo mini jack

  • Connector

    25mW+25mW (With 32Ohms headphone connection)

  • Maximum Output

    25mW+25mW (With 32Ohms headphone connection)

  • Built-in Speaker

    0.4W (mono)

  • Digital Input

    3/32" (2.5 mm) TRS jack (using the conversion cable made for this unit)

  • Digital Input Format

    IEC60958-3 (S/PDIF)

  • USB

    Mini-B type

  • USB Format

    USB2.0 HIGH SPEED mass storage class

  • REMOTE

    3/32" (2.5 mm) TRS jack

  • Power Supply

    Lithium-ion rechargeable battery made for this unit (TASCAM BP-L2)
    Two AA batteries (Alkaline or Ni-MH batteries)
    AC adaptor (TASCAM PS-P520, sold separately)
    External battery pack (TASCAM BP-6AA, sold separately)

  • Power Consumption

    4W (maximum)

  • Battery Life

    Lithium ion batteries (BP-L2): Built-in mics (UNI/OMNI)
    About 5 hours (Recording WAV, 44.1kHz, 16 bit
    Ni-MH batteries (eneloop): Built-in mics (UNI/OMNI) About 4 hours (Recording WAV, 44.1kHz, 16 bit)

  • Operating Temperature range

    32-104Deg. F / 0-40Deg.C

  • Frequency response

    20-20kHz +1/ - 3dB (EXT IN-LINEOUT, Fs44.1kHz, JEITA)
    20-22kHz +1/ - 3dB (EXT IN-LINEOUT, Fs48kHz, JEITA)
    20-40kHz +1/ - 3dB (EXT IN-LINEOUT, Fs96kHz, JEITA)

  • Distortion

    Less than 0.01% (XLR LINE 1 IN-LINE OUT, Fs44.1kHz, +24dBu input, JEITA)

  • S/N Ratio

    92dB or more (XLR LINE 1 IN-LINE OUT, Fs44.1kHz, +24dBu input, JEITA)

  • Computer Requirements

    Windows:
    OS: Windows XP
    Windows Vista
    Windows 7
    CPU/Clock: Pentium 300MHz or better
    Memory: 128MB or more
    USB Port: USB2.0 recommended
    MAC:
    OS: Mac OS X 10.2 or later
    CPU/Clock: Power PC, iMac, G3, G4, G5 266MHz or more
    Memory: 64MB or more
    USB Port: USB2.0 recommended

  • Dimensions (W x H x D)

    3.15 x 6.02 x 1.38 inches / 80 x 153 x 35 mm

  • Weight

    10.23 oz / 290g (without batteries)

About Tascam DR-100mkII - Portable 2-Channel Linear PCM Recorder

The Tascam DR-100MKII is portable stereo digital audio recorder designed with high-end recording features aimed at musicians and engineers. The four built-in microphones, two cardioid and two omnidirectional, deliver great sound via the high-gain and low noise microphone preamps. A pair of XLR inputs can accommodate external microphones and provide switchable phantom power for use with condenser microphones.

The 24-bit/96kHz linear PCM recorder features dedicated stereo mini balanced line in and out connectors in addition to an S/PDIF digital input. Also available is the ability to connect balanced line inputs via the locking XLR connectors.

Tascam DR-100mkII - Portable 2-Channel Linear PCM Recorder Features

  • Portable four-microphone, two-channel handheld audio recorder
  • Improved uni-directional and omni-directional microphones over original DR-100
  • High gain and low noise microphone preamp
  • Up to 24-bit/96kHz WAV recording
  • 32 to 320kbps MP3 recording
  • Dual XLR inputs with locking latches
  • +4dBu line input available via XLR jacks
  • 1/8" TRS line input and output
  • S/PDIF input from an external device via remote jack
  • Limiter and low-cut filter
  • Variable playback speed from -50% to +16%
  • Records to SD or SD-HC cards (includes 2GB card)
  • Large thumbwheel for individual gain control
  • Dedicated back-panel switches
  • Built-in speaker
  • Tripod mount
  • Rugged aluminum casing

Used Guarantee

30-day money back!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Tascam DR-100 Mark II Portable 2-Channel Linear PCM Recorder
  • Li-ion Battery
  • 16GB SD Card
  • RC-10 Remote Control
  • Remote Control Holder
  • Windscreen
  • Firmware Ver.1.00 0025
  • Petrol Protective Bag
  • Carry Bag
  • Item Note: Missing USB Cable
