DJI Matrice 600 Specifications

  • Additional Item Includes

    6x Arm Stopper - 2x Landing Gear Stopper - GPS Mount - 6x Knob (With Gasket) - Screws - Double Sided Tape Set - Tape - Battery Stickers

  • Hovering Accuracy

    Vertical: +/-0.5m, Horizontal: +/-1.5m (P-Mode, with GPS)

  • Max Angular Velocity

    Pitch: 300 deg. /s, Yaw: 150 deg. /s

  • Max Pitch Angle

    25 deg.

  • Max Speed of Ascent

    5 m/s

  • Max Speed of Descent

    3 m/s

  • Max Wind Resistance

    8 m/s

  • Max Flight Altitude above Sea Level

    2500m

  • Max Speed

    18 m/s (No wind)

  • Hovering Time (with six TB47S batteries)

    No payload: 35 min, 6kg payload: 16 min

  • Hovering Time (with six TB48S batteries)

    No payload: 40 min, 5.5kg payload: 18 min

  • Propulsion System: Motor Model

    DJI 6010

  • Propulsion System: Propeller Model

    DJI 2170

  • Flight Control System

    Model: A3

  • Remote Controller: Operating Frequency

    920.6MHz to 928MHz (Japan)
    5.725GHz to 5.825GHz
    2.400GHz to 2.483GHz

  • Remote: Max Transmission Distance

    FCC Compliant: 3.1 miles (5km)
    CE Compliant: 2.1 miles (3.5km) (unobstructed, free of interference)

  • Remote Controller: EIRP

    10 dBm at 900 M/li>
    13 dBm at 5.8 G
    20 dBm at 2.4 G

  • Remote Controller: Video Output Port

    HDMI, SDI, USB

  • Remote Controller: Dual Users Capability

    Master-and-Slave control

  • Remote Controller: Mobile Device Holder

    Supports smartphones and tablets

  • Remote Controller: Output Power

    9W

  • Remote Controller: Operating Temperature

    14 to 104 deg. F / -10 to 40 deg. C

  • Remote Controller: Storage Temperature

    Less than 3 months: -4 to 113 deg. F / -20 to 45 deg. C
    More than 3 months: 72 to 82 deg. F / 22 to 28 deg. C

  • Remote Controller: Charge Temperature

    32 to 104 deg. F / 0 to 40 deg. C

  • Remote Controller: Built-in Battery

    6000 mAh, 2S LiPo

  • Remote Controller: Max Tablet Width

    170mm / 6.69"

  • Supported DJI Gimbals

    Zenmuse X3; Zenmuse X5 series; Zenmuse XT; Ronin-MX; Zenmuse Z15 series HD gimbals: Z15-A7, Z15-BMPCC, Z15-5D III, Z15-GH4

  • Retractable Landing Gear

    Standard

  • Charger: Model

    A14-100P1A

  • Charger: Voltage Output

    26.3V

  • Charger: Power Rating

    100W

  • Battery: Model

    TB47S

  • Battery: Capacity

    4500 mAh

  • Battery: Voltage

    22.2 V

  • Battery: Type

    LiPo 6S

  • Battery: Energy

    99.9 Wh

  • Battery: Operating Temperature

    14 to 104 deg. F / -10 to 40 deg. C

  • Battery: Storage Temperature

    Less than 3 months: -4 to 113 deg. F / -20 to 45 deg. C
    More than 3 months: 72 to 82 deg. F / 22 to 28 deg. C

  • Battery: Charge Temperature

    41 to 104 deg. F / 5 to 40 deg. C

  • Battery: Max Charging Power

    180W

  • Diagonal Wheelbase

    1133mm / 44.61"

  • Intelligent Flight Battery Quantity

    6

  • Operating Temperature

    14 to 104 deg. F / -10 to 40 deg. C

  • Dimensions

    1668 x 1518 x 759mm / 65.67 x 59.76 x 29.88" (Propellers, frame arms and GPS mount unfolded)
    640 x 582 x 623mm / 25.20 x 22.91 x 24.53" (Frame arms and GPS mount folded)

  • Weight

    With six TB47S batteries: 9.1kg / 20.06lbs
    With six TB48S batteries: 9.6kg / 21.16lbs
    Max Takeoff: 15.1kg / 33.29lbs
    Battery: 595g / 20.99oz

Related Articles & Videos

Drones 101: The Buyer’s Guide

Drones 101: The Buyer’s Guide

So many choices, which drone is right for you? Our buying guide will help you figure out the best drone for your budget and needs. Read on to find out more.
Read more

About DJI Matrice 600 Hexacopter with A3 Flight Controller - SKU#1658422

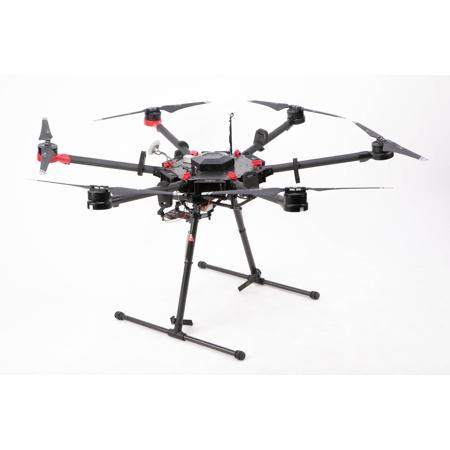

The Matrice 600 (M600) is DJI's new flying platform designed for professional aerial photography and industrial applications. It is built to closely integrate with a host of powerful DJI technologies, including the A3 flight controller, Lightbridge 2 transmission system, Intelligent Batteries and Battery Management system, for maximum performance and quick setup.

Total Integration
The modular design makes the M600 easy to set up and ready to use in just minutes. Its dust proof propulsion systems simplify maintenance while actively cooled motors make for reliable operation during extended periods of time. All Zenmuse cameras and gimbals are natively compatible and a maximum payload of 6 kg allows it to fly the Ronin-MX gimbal and a range of cameras from Micro Four Thirds systems to the RED Epic.

Smart Flight Safety
The M600 uses sine-wave driven, intelligent ESCs to ensure it performs accurately, safely and efficiently while A3's self-adaptive flight systems adjust flight parameters automatically based on different payloads. The A3 can be upgraded with two additional GNSS and IMU units to A3 Pro or with D-RTK GNSS for enhanced accuracy (Not Included).

Extended Flight Time And Transmission Range
The M600 features an extended flight time and a 5 km long-range, ultra-low latency HD image transmission for accurate image composition and capture. By using 6 small DJI Intelligent Batteries, allowing it to easily be shipped to wherever it is needed. A customized battery management system and power distribution board allows all six batteries to be turned on with one button press and keeps the system in flight in the event of a failure of a single battery and allows users to check the battery status in real-time during flight.

Professional HD Transmission
DJI Lightbridge 2 has been designed from the ground up to meet the requirements of professional broadcasting, offering high frame rates and HD live streaming. USB, mini-HDMI and 3G-SDI ports support video output at up to 1080p/60fps or a broadcast standard output of 720p/59.94fps and 1080i/50fps.

Powerful App Control
The M600 supports the DJI GO app and the brand new DJI Assistant 2. Get a live HD view, battery status, redundancy status, transmission strength and much more, straight from the DJI GO app. DJI GO is also the control center for the camera, giving access to shutter speed, ISO, photo or video capture on any Zenmuse X series camera and remote focus and aperture on the Zenmuse X5 and X5R cameras. The brand new DJI Assistant 2 supports firmware updates and the new Ground Station and comes with a built-in flight simulator.

Open To Development
The M600 is fully compatible with the DJI Onboard SDK and Mobile SDK to meet the requirements of those building software for industrial applications. It has a dual parallel CAN and API ports for connecting DJI devices including the Guidance sensor system, the RTK GNSS units or third party components of your choice.

What's in the box:

  • DJI Center Frame (With A3 & Lightbridge 2 Air System)
  • Remote Controller
  • 6X Intelligent Flight Battery
  • 2x Charging Hub
  • Battery Charger
  • Power Cable
  • 6x Frame Arm (With Propeller Holder)
  • 2x Landing Gear Leg
  • 2x Landing Skid
  • A3 Flight Controller
  • GPC Case
  • Item Note: Oxidation on Springs; 1x GPS Modual does not work properly; Missing Battery Charger; Power Cable
