Used screen Monitor with Camera Control for RED Komodo, Supports 4K HDMI/SDI

SKU: US1660749

This item is no longer available.

Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

2023-03-24T18:18:36

Rated 3 out of 5

it works.

It works, but I'd wait a bit longer and get a smallHD if you can afford it. I'd also take the OSEE G7 over it as well.

Justin C.

2023-01-01T22:38:52

Rated 5 out of 5

So far so good

Awesome monitor Great Value

robert p.

2022-09-14T09:07:42

Rated 5 out of 5

Great value for an awesome monitor

Fantastic touchscreen monitor for the price. Fully compatible with the RED Komodo. Only drawback was finding a list for pre-approved batteries that will display power levels easily. Can't beat the value though at this price point.

STEVEN W.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Portkeys BM5 III WR Specifications

  • Compatibility

    RED Komodo

  • Material

    Aluminum alloy + Tempered glass

  • Screen Size

    5.5"

  • Viewing Angle

    Horizontal: 178 Degree
    Vertical: 178 Degree

  • Brightness

    2200nit

  • Resolution

    1920 x 1080

  • Contrast Ratio

    1000:1

  • Color Depth

    10bit(8+2 FRC)

  • Maximum Power

    13W

  • Input Voltage

    4pin Aviation Connector IN 7.4-24V

  • Output Voltage

    4pin Aviation Connector OUT 7.4V(NPF)

  • Video Signal Input

    SDI/HDMI

  • Video Signal Output

    SDI

  • Motor Control Port

    5pin Aviation Connector

  • Camera Control Port

    Mini USB 10pin

  • USB-A

    Upgrade Firmware/Load LUT

  • Antenna

    2.4G

  • HDMI Signal

    1920 x 1080p@23.97Hz,24Hz,25Hz
    29.97Hz,30Hz,50Hz,59.94Hz,60Hz
    1920 x 1080psf@23.97Hz,24Hz
    25Hz,29.97Hz,30Hz
    1920 x 1080i@50Hz,59.94Hz,60Hz
    1280 x 720p@50Hz,59.94Hz,60Hz
    720 x 576i@50Hz
    720 x 576p@50Hz
    720 x 480p@59.94Hz,60Hz
    720 x 480i@59.94Hz,60Hz
    1280 x 720p@50Hz,59.94Hz,60Hz
    YUV444/YUv422/RGB444

  • SDI Signal

    1920 x 1080p@50fps,59.94fps,60fps
    1920 x 1080p@50Hz,59.94Hz,60Hz
    1920 x 1080p@23.98Hz,24Hz,25Hz
    29.94Hz,30Hz YUV444/YUV422/RGB444
    1920 x 1080i@50Hz,59.94Hz,60Hz
    YUV444/YUV422/RGB444

  • Battery Info

    required, not included

  • Battery Material

    lithium ion

  • Battery Type

    non-universal

  • Battery Quantity

    1

  • Dimensions

    5.72 x 4.75 x 1.79" (145.4 x 120.9 x 45.5mm)

  • Weight

    13.26 oz (376g)

14 Accessories for screen Monitor with Camera Control for RED Komodo, Supports 4K HDMI/SDI

  • All Accessories (14)
  • Batteries & Power Supply (7)
  • Brackets & Mounts (4)
  • Cables & Adapters (3)

About screen Monitor with Camera Control for RED Komodo, Supports 4K HDMI/SDI

FEATURED REVIEWS

So far so good

By robert p.

Awesome monitor Great Value

Great value for an awesome monitor

By STEVEN W.

Fantastic touchscreen monitor for the price. Fully compatible with the RED Komodo. Only drawback was finding a list for pre-approved batteries that will display power levels easily. Can't beat the value though at this price point.

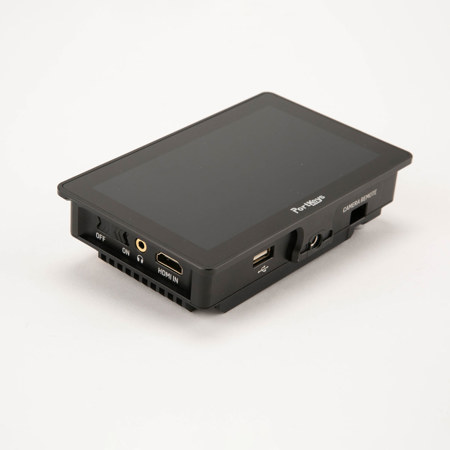

An innovative addition to the world of professional videography, the Portkeys BM5 III WR 5.5" Full HD Touchscreen Monitor is a versatile tool designed to enhance your filming experience. This high-performance monitor supports 4K HDMI/SDI and is specifically engineered with a built-in camera control module, offering seamless operation of your RED Komodo and BlackMagic pocket cameras.

The BM5 III WR monitor boasts a 2200 Nits ultra-clear 5.5-inch touch screen panel, crafted from durable aluminum alloy and tempered glass. With a resolution of 1920x1080, this monitor delivers vivid color details and crystal-clear images, ensuring you never miss a detail.

This advanced monitor offers a range of camera control features, including photo and video recording, AV, Tv, ISO, Auto Focus, Zoom, and Manual Focus. It also supports Wi-Fi control, providing a wireless connection to your RED Komodo camera for effortless operation.

The BM5 III WR monitor is not just about performance; it's also designed for durability. Its robust aluminum alloy shell is lightweight yet sturdy, weighing only 376g, making it an ideal companion for heavy-duty daily operations and on-the-go shooting.

With its 2200nits super brightness, this monitor ensures clear visibility even in broad daylight. It also features HDMI/SDI Loop Out, providing real-time monitoring with an image superimposed with 3DLUT and a new peak.

Every BM5 III WR monitor undergoes strict hardware color calibration before shipping, ensuring the widest color gamut and the most accurate colors. Its 10-bit color depth enhances color reproduction, delivering a more delicate image quality and richer levels.

The monitor also features a new peaking algorithm for accurate facial focus capture, high-precision full-screen waveform for precise frame-by-frame capture, and a semi-transparent superimposable frozen frame image for displacement correction.

In addition, the BM5 III WR can display the position of the iron head wireless follow focus scale, providing professional content creators with a reliable tool for various scenarios.

In summary, the Portkeys BM5 III WR 5.5" Full HD Touchscreen Monitor with Camera Control for RED Komodo is an all-in-one solution for professional videographers seeking superior performance, durability, and control in their filming equipment.

screen Monitor with Camera Control for RED Komodo, Supports 4K HDMI/SDI Features

  • Robust design
  • 2200nits Super Bright, Sees Everything Clearly in Daylight
  • HDMI/SDI Loop Out
  • Color calibration
  • 10-bit (8+2 FRC)
  • High-precision Waveform
  • Semi-Transparent Superimposable Frozen Frame Image
  • Tilta Cursor Display

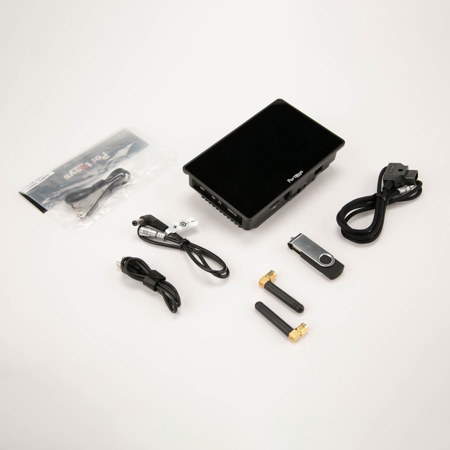

What's in the box:

  • Portkeys BM5 III WR 5.5" Full HD Touchscreen Monitor with Camera Control for RED Komodo (Supports 4K HDMI/SDI)
  • Power Cord 100cm (4-pin Aviation to D-Tap)
  • Power Cord 40cm (4-pin Aviation to DC)
  • 2x L-Type Antenna
  • LANC Control Cable 40cm
  • Type-C Control Cable 40cm
  • Warm Prompt Card
  • USB (Manual/3D LUTs/Firmware Inside)
  • Hard Case
