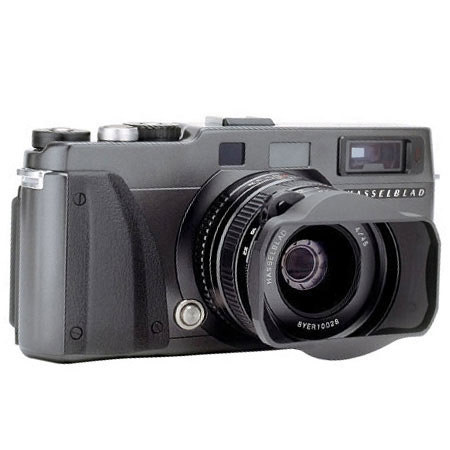

Hasselblad XPan II Panoramic 35mm Rangefinder Camera Kit with 45mm f/4 Lens

Picture does not represent the actual item

See all Hasselblad items

Used Hasselblad XPan II Panoramic 35mm Rangefinder Camera Kit with 45mm f/4 Lens

SKU: US1670607

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Browse our FAQ

See Terms & Conditions

Hasselblad XPan II Panoramic 35mm Rangefinder Camera Kit with 45mm f/4 Lens Specifications

  • Format

    35mm Rangefinder camera, Dual-format - 24x65 mm and 24x36 mm

  • Lens Mount

    Bayonet fitting

  • Focus

    Lens helicoid interlocked to coupled rangefinder.

  • Focus Modes

    n/a

  • Focus Screen

    none

  • Exposure Modes

    Aperture Priority, Manual

  • Exposure Metering

    TTL measured at shutter plane; Center-weighted averaging

  • ISO Range

    Auto DX setting and manual setting.

  • Exposure Bracketing

    0.5EV or 1.0EV step intervals. Order: standard, under, over.

  • Exposure Compensation

    +/- 2EV at 1/2EV step intervals.

  • Shutter and Release

    Focal plane shutter, B, 8 s - 1/1000 s, flash synchronization from B - 1/125 s.

  • Film Type

    35 mm

  • Multi Exposure

    Yes - up to 9 exposures

  • Self-Timer

    10 sec

  • Flash Sync

    speed up to 1/125 s

  • PC Terminal

    Yes

  • Film Wind

    Rewind of film with option to leave a film tip out of the cassette
    Frame rate 1.2 (0.9) frames per second for 24x36 mm (24x65 mm) format

  • Viewfinder

    Bright frame viewfinder (ambient light), automatic parallax compensation, automatic standard/panorama switchover via format selector, automatic bright frame switchover according to lens fitted, integral LED exposure metering indications. Field of view 85% or more.

  • LCD

    LCD display in the viewfinder showing shutter speed and exposure information

  • Depth Field Preview

    no

  • Diopter Correction

    Interchangeable from -4 to +2

  • Remote Control

    Optional; Accepts Electrical Remote Release Cord

  • Mirror Lock-Up

    no

  • Power Source/Battery

    CR2 x 2 (6v total).

  • Dimensions

    43.5 mm L x 166mm W x 82mm H. 45mm

  • Weight

    1.6 lb 720g (without batteries)

About Hasselblad XPan II Panoramic 35mm Rangefinder Camera Kit with 45mm f/4 Lens

Hasselblad XPan II Panoramic 35mm Rangefinder Camera Kit with 45mm f/4 Lens Features

  • Dual-format 24x65 mm and 24x36 mm
  • Integral viewfinder LCD
  • Shutter speeds from 8 s to 1/1000 s and B (max 540 s)
  • Frame rate 1.2 (0.9) frames per second for 24x36 mm (24x65 mm) format
  • Flash sync speed up to 1/125 s
  • Aperture priority center-weighted TTL metering system
  • Auto Bracketing
  • 45mm Lens extremely compact design
  • High image quality
  • For panorama images the lens has a true wide-angle horizontal coverage of 71°.

  • Improvements of Xpan II Relative to Old Style XPan:

  • LCD display in the viewfinder showing shutter speed and exposure information
  • Multi exposure (up to 9 exposures)
  • Self-timer delay 2 or 10 seconds
  • B-time 540 seconds
  • Improved IR film performance
  • Flash sync at the beginning or end of exposure
  • Rewind of film with option to leave a film tip out of the cassette
  • Lens shade for 45 and 90 mm lenses with locking device
  • Diopter lens with locking system
  • Electrical remote release (optional release cord)
