Sennheiser SK 100 G3 Wireless Compact Bodypack Transmitter, Frequency Band A1: 470-516MHz (Batteries Not Included)

Picture does not represent the actual item
See what's in the box

See all Sennheiser items

Used Sennheiser SK 100 G3 Wireless Compact Bodypack Transmitter, Frequency Band A1: 470-516MHz (Batteries Not Included)

SKU: US1677898

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Browse our FAQ

See Terms & Conditions

Sennheiser SK 100 Specifications

  • Modulation

    Wideband FM

  • No. Of Channels

    1680 (max. 20 Presets)

  • Frequency ranges

    A1: 470-516 MHz

  • Transmission frequencies

    1,680 frequencies, tunable in steps of 25 kHz
    20 frequency banks, each with up to 12 factory-preset channels
    1 frequency bank with up to 12 user programmable channels

  • Switching bandwidth

    42 MHz

  • Nominal/peak deviation

    +/-24 kHz / +/-48 kHz

  • Frequency Stability

  • RF Output power

    At 50Ohms, typ. 30mW

  • Pilot tone squelch

    Can be switched off

  • Compander system

    HDX

  • AF Frequency response

    Microphone: 80-18000Hz
    Line: 25-18000Hz

  • S/N ratio

    >/- 110 dBA (1 mV, peak deviation)

  • THD

  • Max. Input Voltage

    Microphone/Line: 3Vrms

  • Input Impedance

    Microphone/Line: 40kOhms, unbalanced/1MOhm

  • Input Capacitance

    Switchable

  • Audio input sensitivity

    60dB, adjustable in 3dB steps

  • Temperature range

    -10 to 55 deg. C / 14 to 131 deg. F

  • Power supply

    2 AA size batteries, 1.5 V or BA 2015 accupack

  • Nominal voltage

    2.4 V DC

  • Power consumption:

    At nominal voltage: typ. 180 mA(30mW)
    with switched-off transmitter:

  • In compliance with

    ETS 300422, ETS 300445, CE, FCC

  • Operating time

    Typ. 8 hrs

  • Dimensions

    82 x 64 x 24mm / 3.23 x 2.52 x 0.94" Approx.

  • Weight

    160g / 5.64oz Approx. (including batteries)

About Sennheiser SK 100 G3 Wireless Compact Bodypack Transmitter, Frequency Band A1: 470-516MHz (Batteries Not Included)

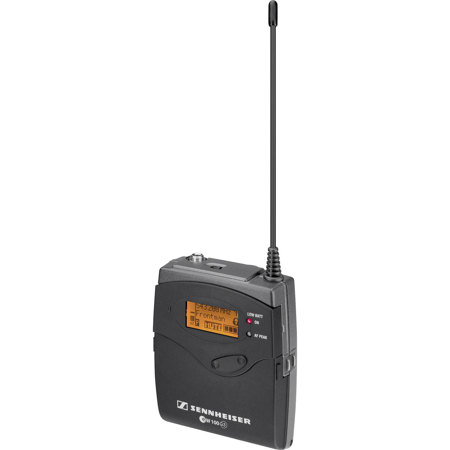

Lightweight, compact bodypack transmitter. User-friendly menu operation with backlit graphic display. Expanded AF frequency for authentic sound (25-18,000 Hz). Rugged metal housing.

The wireless body-pack standard gets even better. Sennheiser has packed many useful features in the 158g weight of the SK 100 G3. The SK 100 G3 has an easy-to-read graphic display, infrared sync, charging contacts, cable emulation, RF mute, an intuitive menu and much more. As features alone are no substitute for audio quality, the AF frequency response was expanded to 25-18,000 Hz for the truest sound.

Sennheiser SK 100 G3 Wireless Compact Bodypack Transmitter, Frequency Band A1: 470-516MHz (Batteries Not Included) Features

  • Sturdy metal housing
  • 42 MHz bandwidth: 1680 tunable UHF frequencies for interference-free reception
  • Enhanced frequency bank system with up to 12 compatible frequencies
  • Pilot tone squelch for eliminating RF interference when transmitter is turned off
  • Enhanced AF frequency range
  • Increased range for audio sensitivity
  • Wireless synchronization of transmitters via infrared interface from receiver
  • User-friendly menu operation with more control options
  • Illuminated graphic display
  • Auto-Lock function avoids accidental changing of settings
  • HDX compander for crystal-clear sound
  • Transmitter features battery indication in 4 steps, also shown on receiver display
  • Programmable Mute function
  • Contacts for recharging BA 2015 accupack directly in the transmitter
  • Wide range of accessories adapts the system to any requirement

Used Guarantee

30-day money back!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Sennheiser SK 100 G3 Wireless Compact Bodypack Transmitter
  • Sofware Revision: 1.7.8
  • Item Note: Missing Sennheiser CA2 Shoemount Adapter; Sennheiser CL1 3.5mm to 3.5mm Output Cable; Sennheiser CL-100 1/8"-Male Mini Jack to XLR-Male Connector Cable
