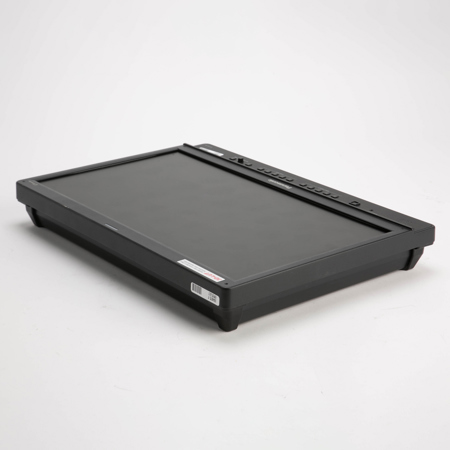

Used Panasonic 21.5" LCD Studio Monitor, 1920x1080 Resolution, 3G-SDI/HDMI/Video/DVI Connectivity, 3D Assist Functions

Item Note: HDMI Port Not Working; Missing Stand; 3x Stand Screws; 4x Panel Mounting Screws; Power Cord. Cosmetic Condition is V.

SKU: US1684675 MFR: BTLH2170PJ
Earn VIP Reward Points

What`s in the box:

  • Panasonic 21.5 LCD Studio Monitor ** Item Note: HDMI Port Not Working; Missing Stand; 3x Stand Screws; 4x Panel Mounting Screws; Power Cord. Cosmetic Condition is V. **
Free Shipping

See Options

Protect your gear with Adorama Protect.* Learn more

1 Year

$161.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Panasonic BTLH2170PJ Specifications

  • Panel Size

    55 cm (21.5 inches) (Effective display area)

  • Aspect Ratio

    16:9

  • Pixel Number

    1920 x 1080 (FULL HD)

  • Display colors

    Approx. 16,770,000 colors

  • View Angle

    178deg. horizontal, 178deg. vertical (contrast > 10:1)

  • Video Input:

    BNC x 1

  • SDI Input

    BNC x 2
    SMPTE ST 424/274/296/259/ITU-R BT.656-4 standard
    Embedded Audio supported
    HD SDI: SMPTE ST 299 standard, 48 kHz, synchronous, 8 CH
    SD SDI: SMPTE ST 272 standard, 48 kHz, synchronous, 4 CH

  • HDMI Input

    HDMI x 1 (Type A terminal)
    HDCP supported, Embedded Audio supported,
    VIERA Link not supported

  • DVI-I Input

    DVI-I x 1, single link (HDCP supported)

  • Audio input

    Pin jack x 2 (stereo), Input Signal Level: 0.31 Vrms

  • Video Output

    BNC x 1 (through-out)

  • SDI Output

    BNC x 2 (active through-out)

  • GPI

    D-SUB, 9 pins x 1

  • RS-232C

    D-SUB, 9 pins x 1

  • RS-485

    RJ-45 x 2 (input, output)

  • Headphones

    Stereo mini jack M3 x 1, 32 Ohms, level adjustable

  • Speaker Output

    Monaural 0.5 W

  • Tally Output (Display)

    Red, Green, Amber

  • Power Supply

    AC 100V - 240V, 50 Hz/60 Hz
    DC 12V (11V - 17V)

  • Power Consumption

    AC 0.55A - 0.25A
    DC 3.8 A

  • Operating Temperature

    5deg.C to 35deg.C (41deg.F to 95deg.F)

  • Operating Humidity

    20% to 85 % (no condensation)

  • Storage Temperature

    -20deg.C to 60deg.C (-4deg.F to 140deg.F )

  • Dimensions:(W xH xD)

    510x388x198 mm (20-1/16x15-1/4x7-13/16") (including stand)
    510x373x72(20-1/16x14-5/8x2-13/16") (monitor only, not including stand)

About Panasonic BTLH2170PJ 21.5" LCD Studio Monitor - SKU#1684675

The BT-LH2170 21.5" high performance LCD monitor offers native 1920 x 1080 full HD resolution, advanced 2D and 3D assist, high-quality IPS panel with wide viewing angle and a "production tough" aluminum die-cast front frame. The LH2170 has an array of advanced features such as multiple professional inputs including, HD-SDI, 3G-SDI and HDMI, true color processing with a 3D look-up table (LUT), HD/SD closed captioning, 12V DC operation for field use and an eco-friendly panel with mercury-free LED backlight and low power consumption.

The monitor's high brightness (250cd /m), high contrast (1000:1), horizontally-aligned IPS panel has 178 degree vertical and horizontal viewing angles. It delivers exceptional imagery with superb color accuracy and exhibits minimal changes in brightness and color due to the viewing angle. The LH2170's 3D LUT with six-pole color correction includes a look-up table for each signal level and applies 10-bit image processing to each RGB color to balance the six coordinate axes of the three primary colors (RGB) and their complementary colors (CMY), resolving color drifting at low light levels and keeping colors vividly natural. In addition, a black mode makes dark image areas in low-gradation scenes easier to view.

Its advanced 2D assist features include an in-monitor display; a Y-Map display that makes it easy to confirm a luminance level map; a Zebra display; and a two-window display, which allows for two separate HD/SDI inputs to be vie wed simultaneously for comparing different signals. The two-window display can also be combined with advanced assist display functions, including Y MAP, which allows you to see the image at each luminance level in one window, while looking at the standard image in the other window.

The LH2170 monitor's 3D assist functionality - including a 24p input for use with 3D camera rigs -- is ideal for production crews that require 3D review in the field. The LH2170's 3D assist functions include top and bottom display in addition to side-by-side display (for a 2D view of various 3D checks including composition, convergence, color and luminance, focus and zoom position and parallax); and a Focus-in-Red focus assist to emphasize sharply focused image areas.

The LH2170 incorporates diverse video inputs and remote terminals to deliver superb operability in a system configuration, including 3G-SDI and HD/SD-SDI (with loop-through), HDMI, digital and analog DVI-I (Single Link), composite and GPI inputs, as well as RS-232C and RS-485. The new RS-485 Serial Remote permits up to 32 monitors to be connected in a loop-through configuration, each of which can be designated and controlled by a distinct ID number. TSL commands allow text display (8 alphanumeric characters) and tally indication. It supports two audio channels and audio monitoring via Built-In Speakers and headphone output.

Panasonic BTLH2170PJ 21.5" LCD Studio Monitor - SKU#1684675 Features

  • Waveform, vectorscope, Y MAP and zebra displays
  • Pixel-to-pixel mapping
  • HV Delay: Displays the video blanking period
  • Mono mode
  • Supports the EIA/CEA-708 and EIA/CEA-608 SD-SDI closed captioning standards
  • Worldwide 59.94/50Hz compatibility
  • VESA screws for mounting and a supplied stand
  • Color audio level meter
  • Standard tilt stand, tally lamps and Key Lock function
  • Standard screw holes for mounting
  • Quiet operation (No cooling fan)

What's in the box:

  • Panasonic 21.5 LCD Studio Monitor
  • Item Note: HDMI Port Not Working; Missing Stand; 3x Stand Screws; 4x Panel Mounting Screws; Power Cord. Cosmetic Condition is V.
