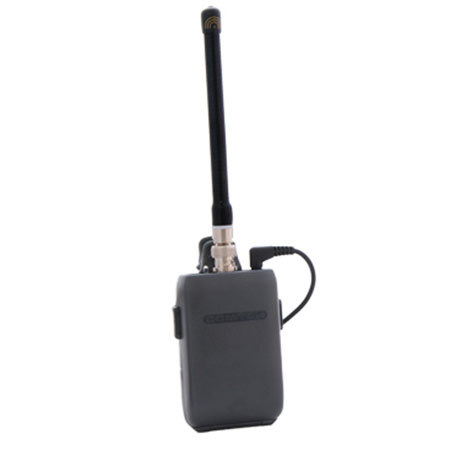

Used Comtek M-216 Option P7 Digitally Synthesized Wireless Portable Microphone Transmitter with BNC RF Output for PR-216 & PR-216 Option 7 Receivers, 216-217MHz

SKU: US1692747

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Comtek M-216 OPTION P7 Specifications

  • Audio Input

    Aux/Line input impedance - 10k ohm at 0 dB nominal

  • Connector

    Auxiliary - Mini 3.5 mm Stereo
    Audio - Tip and Sleeve
    Battery Charging - tip and Sleeve
    External 9V power - Ring and Sleeve

  • Controls and Indicators

    Power On/Off switch
    Synthesized channel selection switches
    Audio input gain control
    Power/Battery test and voice level indicator

  • Antenna System

    BNC short loaded whip antenna

  • Frequency Response

    80 Hz to 10 kHz

  • Modulation

    5 kHz deviation Ch. 1-40 (non-companded)
    10 kHz deviation Ch. 41-60 companded

  • RF Power Output

    10 mW to the antenna system

  • Out-of-Band Emissions

    Better than 45 dB below carrier

  • Current Drain

    17 mA constant current

  • Battery

    9 V alkaline for up to 35 hours of operation
    9 V Nickel-Metal Hydride rechargeable for up to 15 hours of operation

  • Dimensions

    1.06 x 2.50 x 3.25" (2.69 x 6.35 x 8.25cm)

  • Weight

    4oz (113.39g)

About Comtek M-216 Option P7 Digitally Synthesized Wireless Portable Microphone Transmitter with BNC RF Output for PR-216 & PR-216 Option 7 Receivers, 216-217MHz

Where high-quality sound transmission is a necessity, the Comtek M-216 Option P7 Digitally Synthesized Wireless Portable Microphone Transmitter with BNC RF Output (216-217MHz) stands out as an exceptional choice. This portable, battery-powered transmitter is specifically designed for on-location sound monitoring, making it an indispensable tool for directors, crew members, and clients who prioritize reliable and superior sounding wireless program monitoring.

Engineered to work seamlessly with the PR-216 or PR-216 Option 7 wireless receivers, this robust transmitter is built to meet the most demanding needs of field audio monitoring. Its design incorporates a flexible short whip antenna, ensuring superior RF transmission and an extended operating range, making it ideal for a variety of environments and distances.

One of the standout features of the M-216 Option P7 is its adjustable gain control, which allows for precise control over audio input levels. This is complemented by a single LED VU meter, providing a quick visual reference to monitor and adjust audio input levels on the fly.

For those seeking added convenience, the optional MBS-216 Mounting-Bracket Stand can be used to position the transmitter optimally and maintain a vertical antenna position, further enhancing the device's performance.

In summary, the Comtek M-216 Option P7 Digitally Synthesized Wireless Portable Microphone Transmitter with BNC RF Output (216-217MHz) is a performance-driven device that delivers the quality and dependability demanded by top sound mixers in the industry.

Comtek M-216 Option P7 Digitally Synthesized Wireless Portable Microphone Transmitter with BNC RF Output for PR-216 & PR-216 Option 7 Receivers, 216-217MHz Features

  • Compact, lightweight beltpack is ruggedly built for use in the field
  • Combined use of analog and digital technologies provides great sound quality
  • The 3.5mm line-level mini input allows you to connect a variety of audio sources
  • The 6" short whip antenna connects via a standard BNC connector to provide an extended range
  • Transmits on 38 standard channels and 19 high-fidelity channels
  • Built-in microcontroller automatically sets deviation, audio processing and EQ
  • Operates on a standard 9V alkaline battery for up to 40 hours

What's in the box:

  • Comtek M-216 Option P7 Digitally Synthesized Wireless Portable Microphone Transmitter with BNC RF Output
  • BC-216 Belt Clip
  • CB-36 XLR-F AUX Input Cable with RF Isolation
  • SLW-216 Loaded Flexible Helical Antenna with BNC Connector
