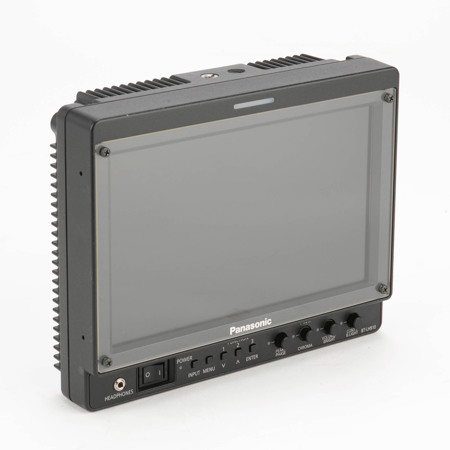

Used Panasonic BT-LH910G 9" LCD Video Monitor with 1280x768 Resolution, Built-in I/P Conversion Circuit (652 Hours)

SKU: US1695304

This item is no longer available.

Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Panasonic BT-LH910G Specifications

  • Screen Size

    9" (23cm) of effective display area

  • Aspect Ratio

    15:9

  • Resolution

    1280 x 768 (WXGA)

  • Display Colors

    Approx. 16,770,000 colors

  • Viewing Angle

    176deg. both of horizontal and vertical

  • Video Input

    Video: BNC x 1
    Y/PB/PR: BNC x 3 (Y shares with Video)
    HDMI: HDMI (type A) x 1 (HDCP supported, embedded audio supported, VIERA Link not supported)
    SDI: BNC x 2 (active through connector x 2), SMPTE274M/296M/259M-C/ITU-R BT.656-4 compliant Embedded Audio
    HD-SDI: SMPTE299M compliant
    SD-SDI: SMPTE272M compliant
    VF: D-SUB, 15 pins x 1

  • Headphone Output

    M3 stereo mini jack x 1

  • Remote

    GPI: D-SUB, 9 pin
    SERIAL: D-SUB, 9 pin

  • Power Input

    XLR, 4 pin

  • Operating Temperature

    32 to 104deg.F (0 to 40deg.C)

  • Power Requirements

    DC 12 V (11.0 V - 17.0 V), 1.9 A

  • Dimensions (W x H x D)

    9.06 x 7.20 x 3.06" (230 x 183 x 78 mm) - without stand

  • Weight

    3.7lb (1.7kg)

2 Accessories for Panasonic BT-LH910G 9" LCD Video Monitor with 1280x768 Resolution, Built-in I/P Conversion Circuit (652 Hours)

  • All Accessories (2)
  • Batteries & Power Supply (2)Required Item

About Panasonic BT-LH910G 9" LCD Video Monitor - (652 Hours) SKU#1695304

The Panasonic BT-LH910G LCD Video Monitor (9"), with IPS LCD panel and 16.7 million colors, delivers high quality images at a resolution of up to 1280 x 768 (WXGA). With an aspect ratio of 16:9, it can automatically adapt to the input resolution of the incoming video signal. A wide viewing angle of 176deg. (H / V) allows you view the images clearly even from room corners or when the display is mounted at a height. Using 3-dimensional LUT (Look Up Table), the featured 10-bit image processing provides accurate color reproduction from low to high brightness levels for each RGB color levels. In addition, the diagonal line compensation circuit reduces uneven noise on diagonal lines.

Built-in I/P conversion circuit offers a minimal delay of one field between input and panel display to provide excellent motion response. In addition, the improved response time displays clear images with less blurring effect. With RGB bias and gain function, the BT-LH910G LCD Video Monitor allows for fine tuning of color balance levels and facilitates color matching with other types of monitors. To reproduce rated gamma properties (g = 2.2), the LCD monitor allows color compensation in 256 discrete RGB steps to conduct for each monitor, thereby making it suitable for professional broadcasting applications.

Pre-installed software enables calibration without using a PC by connecting compatible color analyzer and measurement probe to the monitor. Equipped with cine-gamma (F-REC) compensation function, the BT-LH910G LCD monitor can be used as a monitor for Varicam camera recorders. Featured black mode displays dark images clearly in scenes with low-gradation and assists in producing movies, film-like HD programs and commercial movies.

Featured audio level meter displays the embedded audio level for inputs such as 3G-SDI (serial digital interface), SDI and HDMI. In addition, the audio level also features reference point setting, peak hold and overrange display functions. The LCD video monitor comes with a headphone terminal that can be monitored from the menu. Built-in waveform monitor and vectorscope can be used to output the input signal waveform and color gamut. Using Y, R, G and B, the input signal for the waveform display can be selected.

The Focus-in-Red functions highlights sharply focused area of the image by displaying it in red color for easy viewing. Equipped with a pixel-to-pixel mode, the BT-LH910G LCD Video Monitor displays images in their native resolution by avoiding the monitor's internal scaling function. In addition, the monitor can display Closed Captioning using SDI or Video input. With support for EIA-708, EIA608 closed captioning standards, the LCD monitor can display up to 8 windows at the same time.

With time code display, you can view time code on the screen. In addition, the time code mode supports LTC (linear time code), VITC (vertical interval time code) and UB (user bit) types of time codes. Using marker settings, you can control all on-screen markers and it is applicable for center markers, safe area markers and 16:9 markers. Incorporating Cross Hatch Overlay function, the LCD Video Monitor displays 40 or 80 pixel intervals grids that is useful for horizontal/vertical adjustment. The H/V Delay displays video blanking period that is time difference between the last line of one video frame and start of the first line of the next video frame. Featured monochrome mode displays only grayscale image by disabling all colors.

By connecting the left/right eye signals from a 3D camera to the 2 SDI input terminals, the LCD Video Monitor can check 3D on the 2D display. In addition, the LCD monitor supports functions such as mirror, shift, comparison, convergence, color, zoom focus, vertical and overlay.

The BT-LH910G LCD Video Monitor incorporates 3 function keys to assign various functions such as HV Delay, Blue Only, Gamma Select, SD Aspect, Scan, Sub Window, WFM, Vector, Marker, White Balance, Pixel To Pixel, Pixel Position, Focus-In-Red, Zebra, Rear Tally, Level Meter, Cross Hatch, Mono, Black Mode, Time Code, Closed Caption and Undef. In addition, the LCD monitor features input terminals for signals such as 3G-SDI, SDI (HD and SD), HDMI, composite (Video) and component (YPBPR). With viewfinder connector, the BT-LH910G LCD Video Monitor can be used as a viewfinder for compatible Panasonic camera recorders. You can power the monitor using a camera recorder's DC lighting output (using the optional Anton Bauer power supply adaptor).

Panasonic BT-LH910G 9" LCD Video Monitor - (652 Hours) SKU#1695304 Features

  • Features IPS LCD panel and 16.7 million colors
  • Delivers high quality images at a resolution of up to 1280 x 768 (WXGA)
  • Aspect ratio of 16:9 - can automatically adapt to the input resolution of the incoming video signal
  • Aspect ratio of 16:9 - can automatically adapt to the input resolution of the incoming video signal
  • Uses 3-dimensional LUT (Look Up Table)
  • Featured 10-bit image processing provides accurate color reproduction from low to high brightness levels for each RGB color levels
  • Diagonal line compensation circuit reduces uneven noise on diagonal lines
  • Built-in I/P conversion circuit offers minimal delay of one field between input and panel display to provide excellent motion response
  • Improved response time displays clear images with less blurring effect
  • RGB bias and gain function allows for fine tuning of color balance levels and facilitates color matching with other types of monitors
  • Allows color compensation in 256 discrete RGB steps to conducted for the each monitor to reproduce rated gamma properties (g = 2.2)
  • Suitable for professional broadcasting applications
  • Pre-installed software enables calibration without using a PC by connecting compatible color analyzer and measurement probe to the monitor
  • Equipped with cine-gamma (F-REC) compensation function
  • Featured black mode displays dark images clearly in scenes with low-gradation and assists in producing movies, film-like HD programs and commercial movies
  • Featured audio level meter displays the embedded audio level for inputs such as 3G-SDI (serial digital interface), SDI and HDMI
  • Audio level features reference point setting, peak hold and overrange display functions
  • Comes with a headphone terminal that can be monitored from the menu
  • Built-in waveform monitor and vectorscope can be used to output the input signal waveform and color gamut
  • Using Y, R,G and B, the input signal for the waveform display can be selected
  • Focus-in-Red functions highlights sharply focused area of the image by displaying it in red color for easy viewing
  • Pixel-to-pixel mode displays images in their native resolution by avoiding the monitor's internal scaling function
  • Can display Closed Captioning using SDI or Video input
  • Supports EIA-708, EIA608 closed captioning standards
  • Can display up to 8 windows at the same time

What's in the box:

  • Panasonic BT-LH910G 9 inch LCD Video Monitor
  • Item Note: Missing Tilt Stand
  • 4x Tilt Stand Mounting Screws
