Telex ICW-6 Specifications

  • Power Requirements

    50mA max at 110-240VAC, 5VDC 600mA max

  • System Frequency Response

    200 to 45kHz +/-3dB

  • Environmental

    0 deg. C to 50 deg. C / 32 deg. F to 122 deg. F, 0% to 90% humidity, non-condensing

  • External Speaker Output

    2W: 100dB SPL at 1' at 1kHz, C weighting

  • Internal Speaker Output

    2W: 100dB SPL at 1' at 1kHz, C weighting

  • Headphone

    80mW: 100dB peak SPL

  • Voice Range

    84 to 104dB SPL

  • Impedance

    50Ohms

  • Panel Microphone Input

    Electret: 15mV at 1kHz, typical into 1000Ohms source impedance

  • Headset Microphone Input

    Dynamic: 2mV at 1kHz, typical into 200Ohms

  • Source Impedance Dynamic Input

    200Ohms

  • Dimensions (H x W x D)

    5.13 x 5.13 x 3.5" / 130.3 x 130.3 x 88.9mm

  • Weight

    1.74lbs / 0.79kg

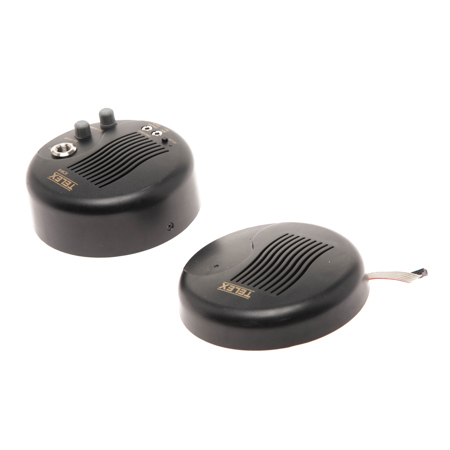

About Telex ICW6 Window Intercom System - SKU#1696886

The Telex ICW-6 represents the ultimate in reliable, rugged and flexible security and ticket booth communications equipment. Speeds ticket window traffic flow with superior audio quality and level control from unique audio-shaping circuitry ensure maximum voice intelligibility for quick and accurate transactions. Enhanced VOx and full duplex design eliminate frustrating interruptions in audio for more natural conversations leading to a substantial reduction in costly errors. Customize your user interface and maximize efficiency with your choice of two (2) hands-free operation modes. Gooseneck microphone operation enables users to move freely to access cash drawers or information sheets without being tethered by a headset. Headset operation provides a higher level of privacy and reduces ambient noise levels in multi-user environments.

Heavy duty mounting hardware and an easy mounting configuration make installing the ICW-6 fast and simple. Utilize your choice of a 2.5" mounting hole or four (4) smaller mounting holes. In addition, there are no external VOx adjustments. Internal microphone threshold adjustments allow the installer to set the sensitivity of the inside and outside microphones to the typical noise level at that location. This ensures optimum performance so the microphones are only active when in use. Superior audio quality with unique audio shaping circuitry, enhanced VOx operation and natural sounding full duplex design. Improved durability with super strong, high-tech polycarbonate fiber resin material makes the ICW-6 virtually indestructible. For years of dependable, maintenance-free operation, choose Audiocom.

What's in the box:

  • Telex ICW6 Window Intercom System
  • Switching Power Adapter
  • Cordset
  • Item Note: Missing Mounting Template
  • User Manual
  • Quick Start Guide.
