3x 1/3-type progressive 2.2 Mp CMOS
Prism color separation
22x optical zoom - 2x, 5x, 10x digital zoom - 3.9-86mm (28-616mm 35mm equivalent) - f/1.6-3.2 - 18 elements in 12 groups
Approx. 3.3' (1 m)
72mm
0.4 lux (f/1.6, gain +30 dB, shutter speed 1/30 second)
NTSC
ND filter: OFF, 1/4, 1/16, 1/64
3.45" (87.63mm) color LCD monitor with approx. 921K dots (16:9)
3.45" (87.63mm) color LCD monitor with approx. 921K dots (16:9)
0.45" (11.43mm) color LCoS monitor with approx. 1226K dots (16:9)
0.45" (11.43mm) color LCoS monitor with approx. 1226K dots (16:9)
2x SD/SDHC/SDXC slots
50i/50p: 1/50s (OFF), 1/60s 1/120s, 1/250s, 1/500s, 1/1000s, 1/2000s
25p: 1/25s, 1/50 (OFF), 1/60s, 1/120s, 1/250s, 1/500s, 1/1000s, 1/2000s
60i/60p: 1/60s (OFF), 1/100s, 1/120s, 1/250s, 1/500s, 1/1000s, 1/2000s
30p: 1/30s, 1/50s (OFF), 1/60s, 1/120s, 1/250s, 1/500s, 1/1000s, 1/2000s
24p: 1/24s, 1/50s (OFF), 1/60s, 1/120s, 1/250s, 1/500s, 1/1000s, 1/2000s
SYNC SCAN TYPE = sec.
50i/50p mode: 1/50.0 sec. to 1/250.0 sec.
25p mode: 1/25.0 sec. to 1/250.0 sec.
60i/60p mode: 1/60.0 sec. to 1/249.8 sec.
30p mode: 1/30.0 sec. to 1/249.8 sec.
24p mode: 1/24.0 sec. to 1/249.8 sec.
SYNC SCAN TYPE = deg.
All mode: 3.0 deg. to 360.0 deg. (by 0.5 degree step selectable) (default = 180.0 deg.)
Slow:
(VFR on SCENE FILE need to be "OFF".)
50i/50p mode: 1/6 sec., 1/12 sec. and 1/25 sec.
25p mode: 1/6 sec. and 1/12 sec.
60i/60p mode: 1/8 sec., 1/15 sec. and 1/30 sec.
30p mode: 1/8 sec. and 1/15 sec.
24p mode: 1/6 sec. and 1/12 sec.
60i mode: 1/8, 1/15, 1/30 second - 30p mode: 1/8, 1/15 second - 24p mode: 1/6, 1/12 second
AVCHD: MPEG-4 AVC / H.264
DV: AVI Type2
SD memory card: 512MB, 1GB, 2GB (FAT12, FAT16)
SDHC memory card: 4GB, 6GB, 8GB, 12GB, 16GB, 32GB (FAT32)
SDXC memory card: 48GB, 64GB, up to 2TB (exFAT)
Note: *PH/HA mode requires Class4 or faster Card / VFR recording requires Class6 or faster
30, 60 fps
SD memory card: 512MB, 1GB, 2GB (FAT12, FAT16)
SDHC memory card: 4GB, 8GB, 16GB, 32GB (FAT32)
SDXC memory card: 8GB, 64GB, up to 2TB (exFAT)
Note: DV recording requires Class6 or faster
AVCHD:
50 Hz mode:
PH mode: 1080/60p, 1080/50i, 1080/25p (over 50i), 720/50p and 720/25p (over 50p)
HA, HE mode: 1080/50i only
PM mode: 720/50p
59.94 Hz mode:
PH mode: 1080/59.94i, 1080/29.97p (over 59.94i), 1080/23.98p, 720/59.94p, 720/29.97p (over 59.94p), and 720/23.98p
HA, HE mode: 1080/59.94i only
PM mode: 720/59.94p
AVCHD:
PH mode: approx. 21 Mbps (VBR, max 24 Mbps)
PM mode: approx. 8 Mbps (VBR)
HA mode: approx. 17 Mbps (VBR)
HE mode: approx. 6 Mbps (VBR)
AVCHD: tandard (MPEG-4 AVC/H.264), DV standard (AVI Type2) OFF / 1 sec. / 10 sec. / 30 sec. / 1min. / 2 min. Note: Recording mode needs to be set in "PH 1080/25p" or "1080/23.98p"
Maximum continuous recording duration is 168 hours (7 days)
AVCHD:
50 Hz mode:
1080/25p: 2 (0 dB gain fixed, manual focus) / 6 / 9 / 12 / 15 / 18 / 20 / 21 / 22 / 23 / 24 / 25 / 26 / 27 / 28 / 30 / 32 / 34 / 37 / 42 / 45 / 48 / 50 fps
59.94 Hz mode: 1080/23.98p or 1080/29.97p: 2 (0 dB gain fixed, manual focus) / 6 / 9 / 12 / 15 / 18 / 20 / 21 / 22 / 24 / 25 / 26 / 27 / 28 / 30 / 32 / 34 / 36 / 40 / 44 / 48 / 54 / 60 fps
AVCHD:
SDI x1, .8Vp-p, 75 O, HD/SD auto-detect, but none-converting between HD/SD
HDMI x1, type A (1080i / 720p)
Pin jack x 1, 1.0Vp-p, 75 O, 480/60i (59.94Hz) or 576/50i (50Hz)
DV: SDI x1, 480/60i (59.94Hz) or 576/50i (50Hz)
Pin jack x1, 1.0Vp-p, 75 O, 480/60i (59.94Hz) or 576/50i (50Hz)
FireWire IEEE 1394 6-pin x1
AVCHD:
PH mode: Dolby Digital/2ch, linear PCM switchable
PM/HA/HE mode: Dolby Digital/2ch
DV:
Linear PCM (Digital 2ch)
AVCHD / DV: 48 kHz
AVCHD / DV: 16 bit
AVCHD:
PH mode: 384kbps PM/HA/HE mode: 256kbps
Stereo microphone
3-pin XLR x2 (Input 1, Input 2)
Line / Mic switchable, high-impedance
Line: 0 dBu
Mic: -40 / -50 / -60 dBu (selectable in menu)
Mic Power: +48V ON/OFF switchable
Headphone: 3.5 mm stereo mini jack x1
Headroom 12dB
Pin jack x2 (ch 1, ch 2), output: 316 mV, 600O ohm
SDI: 2 ch (linear PCM)
HDMI: 2 ch (linear PCM)
5.1ch (Dolby Digital)
Round built-in speaker: .78" (2 cm) x1
Camera remote:
2.5 mm super mini jack x1 for ZOOM and recording START/STOP
3.5 mm mini jack x1 for FOCUS and IRIS controls
INDEX remote:
2.5 mm super mini jack x1
In: 1.0 to 4.0 Vp-p, 10 kO
Out: 2.0+/-0.5 Vp-p, low impedance
They double as video out
Mini B type connector
7.2V DC via battery
7.3V DC via AC adapter
11.8W when recording
0 to 40 Deg.C (32 to 104 Deg.F)
10-80% (no condensation)
7 x 7.69 x 17.25" (180 x 195 x 438mm) excluding protrusions
5.3 lb (2.4 kg) Camcorder main body only
NAB 2013 Show Coverage. As the NAB 2013 show opens, the ARC (Adorama Rental Company) is there in full force, displaying a wide array of recently-announced pro video and digital cinema cameras, including..
This is my first year at the NAB Show and it?s even more than I expected. Everyone is here. We?re all demo-ing new gear and gadgets, giving awards and drawing prizes. It?s an exciting and really fun show. And I found even more very cool products to share with you: Panasonic is a name we all know,...

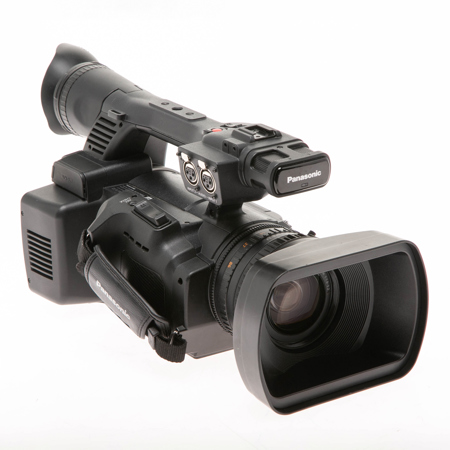

The Panasonic AG-AC160A is an upgrade version of the AG-AC160 camera. In addition to all the features of the AG-AC160, this AG-AC160A camera adds the ability to record in both 60p and 50p, an expanded focus assist functionality, and a "turbo speed" one-push auto focus function.
The advantages this AG-AC160A has over the AG-AC130A is the ability to record in both 60p and 50p, variable frame rate recording in 1080p for slow and fast motion recording, Linear PCM audio, and an HD-SDI output.
The AG-AC160A AVCCAM HD handheld camcorder offers a high-sensitivity 1/3", full-HD 2.2 megapixel U.L.T. (Ultra Luminance Technology) 3-MOS imager to capture native 1920 x 1080 or 1280 x 720 AVCHD utilizing the MPEG-4 AVC/H.264 codec. Coupling a 22x zoom lens with three independent adjustable rings (zoom, focus and iris), recordings look clean and crisp, without image degradation or dropouts and cover most shooting situations without the need for a wide-angle conversion lens.
The AC160A records video in four professional AVCCAM HD recording modes, including the highest-quality PH mode (average 21 Mbps/Max 24Mbps), the HA mode (approx.17 Mbps), the extended recording HE mode (approx. 6 Mbps) and a PM mode (approx. 8 Mbps, 720p only), which is ideal for shooting sports training and web video. With two SD Memory Card slots for relay or simultaneous recording, the AC160A can record up to 12 hours on two 64GB SD cards in PH mode, with automatic clip spanning across the two cards. In addition to SDXC and SDHC cards, the AC160A supports Panasonic's new SDHC full Class 10 UHS-1 (Ultra High Speed) Memory Cards, with transfer rates of 90MBs - 4-1/2 times as fast as the previous generation of SDHC media.
