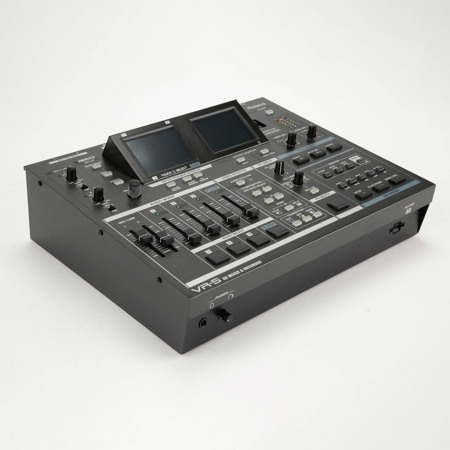

Used Edirol / Roland VR-5 AV Mixer & Recorder
SKU: US1704265
This item is no longer available.
Recommended Items
Share:
Overview
Compare
Specs
Protection
Q&A
About Edirol / Roland VR-5 AV Mixer & Recorder - SKU#1704265
The Roland VR-5 AV Mixer & Recorder is a soup-to-nuts device that includes a video switcher, audio mixer, recorder and preview monitors and provides video playback and output for web streaming. Featuring minimal hardware, an easy connection and a quick set up, it is ideal for school meetings, churches, council meetings, panels and corporate events.
Equipped with a 5-Channel Video Switcher, the VR-5 AV Mixer & Recorder can support up to 3 video sources, PC input video playback, 2 mono and 5 stereo mixable audio channels. The built-in scan converter allows you to adjust the vertical and horizontal scan frequency of video signal. You can select the video sources and PinP position changes with the help of dual touch-screen LCD monitors (program and preview monitors).
Alternatively, the dedicated video buttons can also be used for selecting a video source. It also has options for selecting transition effects such as Picture-in-Picture and Split. The sound from the sources can be monitored using headphones. Provided with 2 mono and 5 stereo audio inputs, the VR-5 AV Mixer & Recorder offers full digital audio processing and produces high-quality sound with effects such as "Noise Gate" for reducing background noise and a "Mastering Tool" to ensure consistent output volume.
The "Audio Follow" function enables the audio to fade from one source to another as the video source changes. With a built-in recorder, you can record the final output of the VR-5 to an SD memory card. The 4 GB SD card allows you to record videos up to 4 hours. Equipped with MPEG-4 capture format, the VR-5 AV Mixer & Recorder allows easy sharing of recorded videos and offers playback of videos, still images and audio files.
You can connect the mixer to a PC via a USB port and enable live streaming of videos. With Video Out and Audio Out knobs, you can enable independent video and audio fade-in/out Levels. The User Logo button adds a stored image such as a company logo, show name, or conference title to the displayed video. With a single knob, you can add advanced video compositions such as placing a person or a text over a background video source. The PC to the RGB with a single knob connector allows you to use the VR-5 AV Mixer & Recorder for various applications such as presentations, slide shows and movie playback.
Edirol / Roland VR-5 AV Mixer & Recorder - SKU#1704265 Features
- Connect to a PC via USB: Simply connect like a Web camera to enable easy live streaming
- Intuitive operation with Dual Touch Monitors: The Program and Preview monitors are operated by touching the screen such as when selecting video sources and PinP position changes. The sound from the sources can be monitored using headphones
- Simple video compositing: In addition to Transition effects, Picture in Picture (PinP) and SPLITare also available. Simply select an effect and the respective video sources
- Control transparency with a single knob: Advanced video composition such as placing a person or text over a background video source can be fine-tuned using a single knob
- Audio and video from a PC: Connect a PC to the RGB connector for various applications such as presentation, slide shows and movie playback
- Full digital audio mixing: Two mono and five stereo audio inputs (total of 12Ch) are mixed with full digital audio processing. This results in a high quality sound with effects such as "Noise Gate" for reducing background noise and a "Mastering Tool" to ensure consistent output volume
- Record to SD memory card: The built-in recorder can record the final output of the VR-5 to SD memory card. Up to four hours of recording is possible when using a 4GB card. The MPEG-4 capture format enables easy sharing of recorded video
- VR-5 Image Converter: Software for preparing data to be played back from the VR-5 will be available from this website. Supported Formats: AVI, MPG, MOV, WMV, MP4, DV
- Output controls: VIDEO OUT and AUDIO OUT knobs enable independent video and audio fade-in/out levels. Press the "USER LOGO" button to display a stored image such as company logo, show name or conference title
