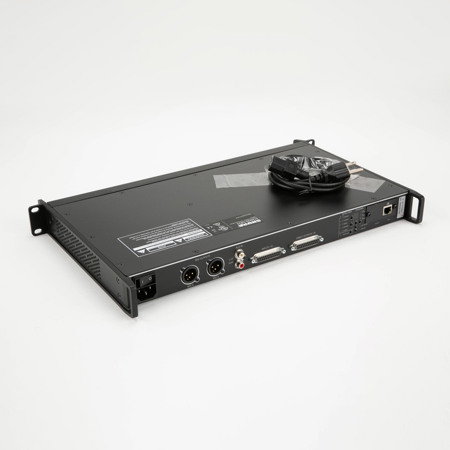

Shure SCM820-DB25 8-Channel Digital IntelliMix Automatic Mixer - SKU#1707149
Shure SCM820-DB25 8-Channel Digital Inte...: Picture 1 thumbnail
Shure SCM820-DB25 8-Channel Digital Inte...: Picture 2 thumbnail
Shure SCM820-DB25 8-Channel Digital Inte...: Picture 3 thumbnail
See all Shure items
$49 PRICE DROPUsed Condition: Average

Used Shure 8 Channel Digital IntelliMix Automatic Mixer, DB25 Connectors, 5kOhm Impedance, 10/100 Mbps Ethernet

SKU: US1707149 MFR: SCM820-DB25
Be the first to review this item
$391.00
$440.00
Save: $49 (11%)
OR
$66/mo suggested payments with 6‑month special financing. Learn how.
Earn VIP Reward Points
See all Used options (1) from $391

What`s in the box:

  • Shure 8 Channel Digital IntelliMix Automatic Mixer
  • Power Cable

INCLUDES FREE WARRANTY

  • This used item comes with a free 180-day warranty. ?
Free Shipping

See Options

Add to List

Protect your gear with Adorama Protect.* Learn more

1 Year

$42.99

2 Year

$58.99

3 Year

$91.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Browse our FAQ

See Terms & Conditions

Shure SCM820-DB25 8-Channel Digital IntelliMix Automatic Mixer - SKU#1707149 Specifications

  • Dynamic Range

    Analog-to-Analog: 110dB

  • Output Noise (Mix output/Direct output)

    Output Pad
    Line (+0): -90 dBV
    Aux (-20): -110 dBV
    Mic (-46): -135 dBV

  • Equivalent Input Noise

    Input Gain Setting
    Line (+0): -93 dBV
    Mic (+26): -118 dBV
    Mic (+46): -130dBV (20 Hz to 20 kHz, A-Weighted, input terminated with 150ohms, digital gain at +18 dB)

  • THD+N

    <0.05% (1kHz, +4 dBu out, mix output (MASTER) at +0 dB)

  • Common Mode Rejection Ratio

    >70 dB (150ohm balanced source, at 1kHz)

  • Polarity

    Non-inverting, any input to any output

  • Housing

    Steel; Extruded aluminum

  • Analog Connection: Channel Input

    Configuration: Active Balanced
    Impedance: 5 kohm
    Clipping Level:
    Line (-0): +20 dBV
    Mic (+26): -6 dBV
    Mic (+46): -26 dBV

  • Analog Connection: Phantom Power

    48 V DC, selectable per channel, 14 mA max
    Mic level settings only. Phantom power automatically switched off in LINE position

  • Analog Connection: Aux Input

    Configuration: Stereo, Unbalanced
    Impedance: 10 kohm
    Clipping Level: +10 dBV

  • Analog Connection: Mix Output

    Configuration: Active Balanced
    Impedance: 350ohm
    Clipping Level: Line (+/-0): +20 dBV
    Aux (-20): 0 dBV
    Mic (-46): -26 dBV

  • Analog Connection: Direct Output

    Configuration: Impedance Balanced
    Impedance: 150ohm
    Max Output Level: +20 dBV

  • Analog Connection: Headphone Output

    6.35mm (1/4") TRS, 100 mW, 350ohm, dual mono

  • Connector

    DB25

  • Signal Processing: AD/DA Converter

    24-bit, 48 kHz, 113 dB dynamic range typical

  • Signal Processing: Internal

    32-bit

  • Signal Processing: Latency

    Analog to Analog
    Single Device: 0.51 ms, In a Link Group 0.76 + 4TN

  • Signal Processing: Channel Input

    Gain Adjustment Range: -110 to +18 dB
    Low Cut: Corner: 25 Hz to 320 Hz, Slope: 12 dB/octave
    High Shelf: Corner: 5 kHz, Slope: 12 dB/octave, Gain: -18 to +18dB

  • Signal Processing: Mix Output

    Gain Adjustment Range: -110 to +18 dB
    Low Shelf: Corner: 25 Hz to 20 kHz, Slope: 12 dB/octave, Gain: -18 to +18 dB
    High Shelf: Corner: 25 Hz to 20 kHz, Slope: 12 dB/octave, Gain: -18 to +18 dB
    6-Band PEQ: 25 Hz to 20 kHz, +/-18 dB, Bandwidth: 1/70 to 4 octaves
    Limiter: Ratio: 10:1
    Threshold: -50 to -2 dBFS
    Attack: 0.1 ms
    Decay: 100ms

  • Networking: Interface

    Single Port, 10/100 Mbps Ethernet

  • Networking: Cable Requirements

    Cat 5e or higher, shielded, 100 m maximum

  • Networking: Addressing Capability

    DHCP, link-local, static

  • Power Requirements

    100 to 240 V AC, 50-60 Hz, 1A

  • Operating Temperature Range

    -18deg.C (0deg.F) to 63deg.C (145deg.F)

  • Storage Temperature Range

    -29deg.C (-20deg.F) to 74deg.C (165deg.F)

  • Dimensions (H x W x D)

    44 x 483 x 289mm / 1.73 x 19.01 x 11.37"

  • Weight

    5.5 kg (12lbs)

About Shure SCM820-DB25 8-Channel Digital IntelliMix Automatic Mixer - SKU#1707149

The Shure 8 Channel Digital IntelliMix Automatic Mixer (DB25 Connectors) is an 8-channel digital automatic mixer designed for use in speech applications, including sound reinforcement, broadcasting and audio recording. It uses Intellimix technology to dramatically improve audio quality in any application where multiple microphones are required.

Shure SCM820-DB25 8-Channel Digital IntelliMix Automatic Mixer - SKU#1707149 Features

  • Seamless automatic mixing and reduced background noise through dynamic channel gating and attenuation
  • IntelliMix modes offer five different mixer mode presets of reliable automixing styles (Classic, Smooth, Extreme, Custom or Manual) to quickly tailor the mix for a particular application
  • DB25 or logic-enabled block connector models available, each with 8 inputs
  • Per channel direct outputs for use as an insert to a mixing console or recording
  • Mix A and B outputs with selectable mic or line level connect to a sound reinforcement system, mixing console, or recording device
  • Individual channel control for quick adjustment of gain, limiter, EQ, and solo/mute
  • LED meter rings vibrantly display real-time settings and output levels
  • Browser-based control software delivers comprehensive software control, monitoring, routing and configuration
  • 3rd party control system (AMX, Crestron) compatible
  • Comes with Dante digital networked audio for multi-channel audio networking over Ethernet
  • Dante upgrade card available for standard Ethernet
  • Dante Virtual Soundcard license included with Dante-equipped models to enable recording and playback capabilities between a computer and Dante-equipped devices
