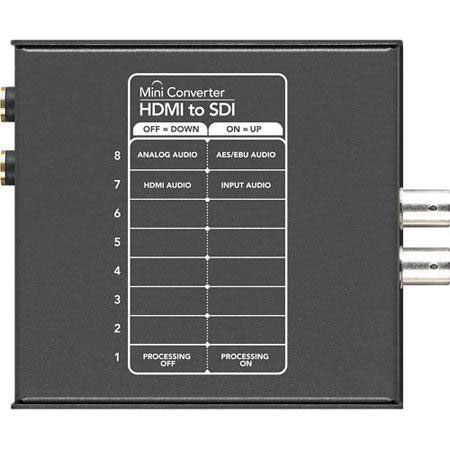

Blackmagic Design Mini Converter HDMI to SDI
Blackmagic Design Mini Converter HDMI to...: Picture 1 thumbnail
Blackmagic Design Mini Converter HDMI to...: Picture 2 thumbnail
Blackmagic Design Mini Converter HDMI to...: Picture 3 thumbnail
Blackmagic Design Mini Converter HDMI to...: Picture 4 thumbnail

Picture does not represent the actual item
See what's in the box

See all Blackmagic Design items
$3 PRICE DROPUsed Condition: Well Used

Used Blackmagic Design Mini Converter HDMI to SDI

Item Note: Item Was Not Fully Tested; Missing Power Supply

SKU: US1709075 MFR: CONVMBHS2
Be the first to review this item
$33.00
$36.00
Save: $3 (8%)
Earn VIP Reward Points
See all Used options (3) from $33

What`s in the box:

  • Blackmagic Design Mini Converter HDMI to SDI ** Item Note: Item Was Not Fully Tested; Missing Power Supply **

INCLUDES FREE WARRANTY

  • This used item comes with a free 180-day warranty. ?
Calculate Shipping

See Options

Add to List

Protect your gear with Adorama Protect.* Learn more

1 Year

$6.99

2 Year

$10.99

3 Year

$16.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Browse our FAQ

See Terms & Conditions

Blackmagic Design Mini Converter HDMI to SDI Specifications

  • Input

    HDMI (x1)

  • Output

    SDI (x2) - switchable between SD, HD & 3Gbs SDI

  • Audio

    Analog: (2) channels of professional balanced analog with standard 1/4" jack connections
    Digital: (2) channels of professional balanced digital with standard 1/4" jack connections, AES/EBU standard

  • SDI Format Support

    625/25 PAL, 525/29.97 NTSC, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080i50, 1080i59.94, 1080i60, 720p50, 720p59.94 and 720p60

  • SDI Compliance

    SMPTE 292M, SMPTE 259M, SMPTE 296M, ITU-R BT.656, ITU-R BT.601 and SMPTE 297M for Optical Fiber SDI

  • SDI Video Sampling

    4:2:2

  • SDI Video Rates

    SDI video connections are switchable between standard definition and high definition

  • SDI Color Precisio

    4:2:2

  • SDI Color Space

    YUV

  • SDI Audio Sampling

    Television standard sample rate of 48 kHz and 24 bit

  • SDI Auto Switching

    Automatically selects between SD SDI, HD-SDI and 3 Gb/s SDI

  • Analog Format Support

    625/25 PAL, 525/29.97 NTSC, 1080PsF23.98, 1080PsF24, 1080i50, 1080i59.94, 1080i60, 720p50, 720p59.94 and 720p60

  • Analog Color Precision

    4:2:2

  • Analog Color Space

    YUV

  • HDMI Format Support

    625/25 PAL, 525/29.97 NTSC, 625/50p PAL, 525/59.94p NTSC, 1080p23.98/24, 1080i50, 1080i59.94/60, 720p50 and 720p59.94/60

  • HDMI Color Precision

    4:2:2 and 4:4:4

  • HDMI Color Space

    YUV and RGB

  • Power

    12VDC

About Blackmagic Design Mini Converter HDMI to SDI

The Mini Converter HDMI to SDI from Blackmagic Design will accept an HDMI signal and convert it to 2 SDI outputs. You can also choose to embed audio from balanced AES/EBU or analog audio inputs. Use this device to add SDI output to cameras with HDMI connections or add SDI outputs to computers with HDMI or DVI connectors.

Blackmagic Design Mini Converter HDMI to SDI Features

  • Embedded Audio: This unit can embed SDI audio from balanced AES/EBU or analog audio inputs
  • Universal Power: A power supply with international socket adapters for all countries is included

Warranty Information

This used item has a FREE 180-day warranty. See details.

Used Guarantee

30-day money back!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Blackmagic Design Mini Converter HDMI to SDI
  • Item Note: Item Was Not Fully Tested; Missing Power Supply
