Kramer VM-4HDXL 1:4 3G HD-SDI Video Distribution Amplifier - SKU#1711032
Kramer Electronics VM-4HDXL: Picture 1 thumbnail
Kramer Electronics VM-4HDXL: Picture 2 thumbnail
Kramer Electronics VM-4HDXL: Picture 3 thumbnail
Kramer Electronics VM-4HDXL: Picture 4 thumbnail
See all Kramer Electronics items
CloseoutUsed Condition: Well Used

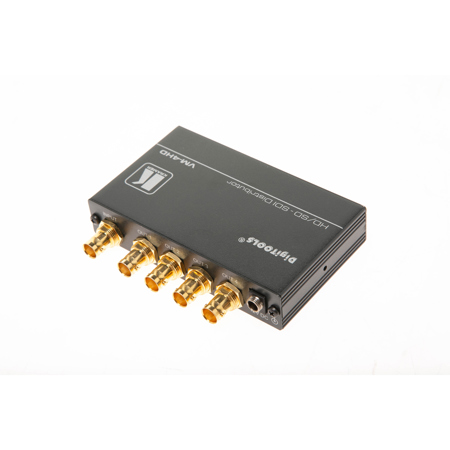

Used Kramer Electronics VM-4HDXL 1:4 3G HD-SDI Video Distribution Amplifier

Item Note: Missing Mounting Bracket

SKU: US1711032 MFR: VM4HDXL
Be the first to review this item
$59.00
Earn VIP Reward Points
See all Used options (1) from $59

What`s in the box:

  • Kramer VM-4HDXL 1:4 3G HD-SDI Video Distribution Amplifier
  • Power Supply ** Item Note: Missing Mounting Bracket **

INCLUDES FREE WARRANTY

  • This used item comes with a free 180-day warranty. ?
Calculate Shipping

See Options

Add to List

Protect your gear with Adorama Protect.* Learn more

1 Year

$11.99

2 Year

$18.99

3 Year

$28.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Browse our FAQ

See Terms & Conditions

Kramer Electronics VM-4HDXL Specifications

  • Input

    1 SMPTE-259M/292M/344M/424M serial video 75 Ohm on a BNC connector

  • Outputs

    4 equalized and reclocked SMPTE-259M/292M/344M/424M outputs 75 Ohm on BNC connectors

  • Maximum Data Rate

    2.97Gbps

  • Max. Output Level

    800mVpp/75 Ohm

  • Coupling

    AC

  • Power Source

    12V DC, 250mA

  • Dimensions

    12.02cm x 7.08cm x 2.42cm (4.73" x 2.79" x 0.95") (W x D x H)

  • Weight

    0.3kg (0.31lbs) approx

  • Warranty

    Kramer 7 years limited warranty

About Kramer VM-4HDXL 1:4 3G HD-SDI Video Distribution Amplifier - SKU#1711032

The Kramer VM-4HDXL is a high-performance distribution amplifier for SDI (SMPTE 259M and SMPTE 344M), HD-SDI (SMPTE 292M) and 3G HD-SDI (SMPTE 424M) signals. The unit takes one input, provides reclocking and equalization and distributes the signal to four identical outputs.

Kramer VM-4HDXL 1:4 3G HD-SDI Video Distribution Amplifier - SKU#1711032 Features

  • Max Data Rate - 3Gbps
  • Multi-Standard Operation - SDI, HD-SDI or 3G HD-SDI
  • Kramer re-Klocking & Equalization Technology - Rebuilds the digital signal to travel longer distances
  • HD-SDI & SDI Input Indication LEDs
  • Compact DigiTOOLS - 3 units can be rack mounted side-by-side in a 1U rack space with the optional RK-3T rack adapter

Warranty Information

This used item has a FREE 180-day warranty. See details.

Used Guarantee

30-day money back!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Kramer VM-4HDXL 1:4 3G HD-SDI Video Distribution Amplifier
  • Power Supply
  • Item Note: Missing Mounting Bracket
