Epiphan Pearl-2 Base Video Mixer - SKU#1717125

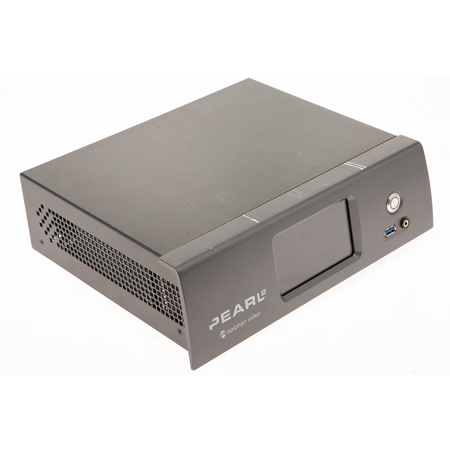

Picture does not represent the actual item
See what's in the box

See all Epiphan items

Used Epiphan Pearl-2 Base Video Mixer

SKU: US1717125

This item is no longer available.

Buy it New

Epiphan Pearl-2 Base Video Mixer
Epiphan Pearl-2 Base Video Mixer
$7999.00
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Browse our FAQ

See Terms & Conditions

Epiphan Pearl-2 Video Mixer Specifications

Video Inputs

Video Inputs

Jump to...

  • Connectors

    2 x 12G-SDI
    2 x HDMI / DVI
    2 x 4K HDMI / DVI

  • Network Inputs

    RTSP Sources over IP (e.g. IP Cameras, or Channels from Pearl or Pearl-2 Systems)

  • Resolutions Supported

    Up to 4096 x 2160 (DCI 4K)

  • HD Video Format Options

    4K HDMI, HDMI
    12G/6G/3G/HD/SD-SDI
    DVI Single-Link (Through Adapter)

Audio Input

Jump to...

  • Connectors

    2 x XLR, Stereo
    1 x RCA, Stereo
    2 x SDI, Embedded
    4 x HDMI, Embedded

  • Analog Audio

    XLR Maximum Signal: 12.3 V (RMS), +24 dBu
    RCA Signal: -10 dBV

Video Output

Jump to...

  • Connectors

    2 x 4K HDMI, with Audio for Local Video Display or Larger Confidence Monitoring

  • Built-In Display

    Front Touchscreen Display Used for System Information, Confidence Monitoring, Simple Configuration, and Recording Control

Audio Output

Jump to...

  • Aux 3.5 mm Mini-Jack Line-In

    Front-Mounted Jack for Confidence Monitoring

  • Built-In Display

    Front Touchscreen Display for Live Switching, Confidence Monitoring, Quick Configuration, System Information, Recording Control, and Streaming Control

Video

Jump to...

  • Video Codecs

    H.264, MPEG-4

  • Video Bit Rates

    1 to 20 Mb/s

  • Key Frame Intervals

    Programmable

  • Color Resolution

    4:2:0

  • Output Frame Size

    Configurable up to 4096 x 2160

  • Program

    Encoded: 2 x Simultaneous 1080p60 Programs (with up to Six HD Sources)
    6 x Simultaneous 1080p30 Programs (with up to Six HD Sources)
    1 x UHD 4K Program at 30 fps (with up to two 4K and two HD Sources)

Audio Encoder

Jump to...

  • Audio Codecs

    MP3: 64-320 kb/s
    22/44/48 kHz

    PCM: 22/44/48 kHz

    AAC: 64-320 kb/s
    16/22/44/48 kHz

Network Interface

Jump to...

  • Connector

    1 x 10/100/1000 Ethernet RJ45

  • Streams

    MPEG-TS and FLV
    RTSP over TCP/UDP
    Publish to Streaming Server/CDN (RTSP, RTMP, RTMPS)
    HLS: Native Apple HTTP Stream for iPad, iPhone, and iPod Touch

  • Multicast Streams

    RTP, MPEG-TS & RTP, and MPEG-TS over UDP

  • Network Discovery / Announce

    UPnP, SAP

  • Network Security

    802.1x EAP Methods: PEAP, EAP-TLS, EAP-TTLS

Video and Audio

Jump to...

  • Internal Storage

    512 GB SSD
    Automatically Removes Oldest Recordings from Internal Storage as Space is Required
    File Maintenance Through Admin Panel (Web Interface)

  • Local Storage

    3 x USB 3.0 Ports for Automatic/Manual Copy to Local USB Drives

  • Network Storage

    FTP Server and FTP Client Capabilities (Automatic/Manual)

  • Playback and Recorded Formats

    Download Recorded Videos (AVI, MOV, MP4, or MPEG-TS) Using Admin Panel; Play Back Through Compatible Player

  • Administration

    Admin Panel for Full Administration
    On-Screen Display and Mobile UI for Confidence Monitoring and Simple Administration/Control
    Multiple User Accounts/Passwords
    Included API for Integration into Existing Environments (via HTTP/HTTPS or RS-232)

  • Time Synchronization

    NTP, TIME (RFC 868), PTP v1 (IEEE-1588-2002 v1)

  • Dimensions

    11.81 x 9.45 x 3.54" (30.0 x 24.0 x 9.0cm)

  • Weight

    8.38 lbs (3.8kg)

About Epiphan Pearl-2 Base Video Mixer - SKU#1717125

How can you elevate your live video production The answer lies in the advanced Pearl-2 Base Video Mixer, a sophisticated, high-tech solution designed to streamline your 4K live streaming, switching, and recording needs. This innovative system is more than just a video encoder; it's a comprehensive video production system that manages all your streaming, recording, and live switching tasks in one convenient location.

The Pearl-2 Base Video Mixer supports SRT, HLS, and DASH, enabling a more efficient way to incorporate remote guests and stream with reduced latency. This professional-grade video mixer is designed to broadcast your content to a wide audience. It allows simultaneous live streaming to platforms like YouTube, Facebook, and other content delivery networks and content management systems using SRT, HLS, MPEG-DASH, custom RTMP/RTMPS, and RTSP.

In addition to its broad streaming capabilities, the Pearl-2 Base Video Mixer also features a built-in streaming server for local streaming to web browsers, smart TVs, and set-top boxes. Its seamless integration with Kaltura and Panopto CMSs eliminates the need for complicated stream URLs setup. Simply schedule your webcast event and start streaming.

The Pearl-2 Base Video Mixer also allows you to locally share unicast or multicast streams to up to 50 viewers using popular streaming protocols such as HTTP, HLS, FLV, ASF, UPnP, and SAP.

Security is a priority with the Pearl-2 Base Video Mixer. It ensures secure streaming with Secure Reliable Transport (SRT) end-to-end 256 bit AES encryption, HLS and MPEG-DASH over HTTPS, as well as Real Time Messaging Protocol Secure (RTMPS).

The Pearl-2 Base Video Mixer leverages the Secure Reliable Transport (SRT) protocol, utilizing the latest in live streaming technology to maintain the high quality of your live video productions. Add a remote guest or contributor over SRT to bring professional-quality sources into your Pearl-powered productions.

In summary, the Pearl-2 Base Video Mixer is a versatile, advanced, and innovative solution for all your video mixing and switching needs.

Epiphan Pearl-2 Base Video Mixer - SKU#1717125 Features

  • Advanced Pearl-2 Base Video Mixer for professional 4K live streaming, switching, and recording
  • Supports SRT, HLS, DASH for efficient remote guest addition and low-latency streaming
  • Simultaneous live streaming capability to platforms like YouTube, Facebook, and other content delivery networks
  • Built-in streaming server for local streaming to web browsers, smart TVs, and set-top boxes
  • Secure streaming with Secure Reliable Transport (SRT) end-to-end 256 bit AES encryption, HLS and MPEG-DASH over HTTPS, and Real Time Messaging Protocol Secure (RTMPS)
  • Utilizes the latest in live streaming technology to maintain high-quality video productions

Used Guarantee

30-day money back!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Pearl-2 Base Video Mixer
  • Ethernet Cable
  • 6' Power Cable
  • 3' SDI Cable
  • 3' HDMI Cable
  • DVI Female to HDMI Male Adapter
  • Hard Case
