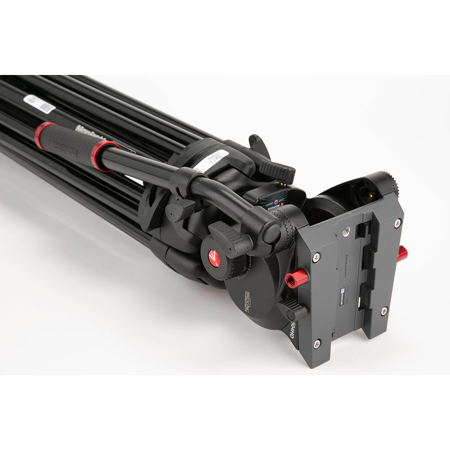

Used Manfrotto 504HD VD Fluid Video Head with 546B Aluminum Tripod Legs,

SKU: US1728483 MFR: 504HD,546BK
Earn VIP Reward Points

What`s in the box:

  • Manfrotto 504HD Fluid Video Head
  • 546B Pro Video Tripod
  • Middle Spreader
  • Padded Carrying Bag

INCLUDES FREE WARRANTY

  • This used item comes with a free 180-day warranty. ?
Free Shipping

See Options

Protect your gear with Adorama Protect.* Learn more

1 Year

$43.99

2 Year

$60.99

3 Year

$101.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Learn
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

2020-03-04T06:51:36

Rated 5 out of 5

Winner here!

Great sturdy product. Highly recommend. Buy once and buy right.

STEVEN B.

2019-06-23T11:37:41

Rated 5 out of 5

tripod with fluid head

This is an awesome set up..period. What more can I say? The tripod in Manfrotto quality and the fluid head is also Manfrotto quality.

THOMAS F.

2018-12-25T16:47:12

Rated 5 out of 5

All in one tripod.

I already have this tripod so buying it again was a simple decision.I love it.It's light, portable, reliable, and can transfer from low mode around 18" to 7 ft high in seconds.If you need a tripod that can do almost anything give this a peak.Extra bonus extra plates are easy to find.If you want a heavier duty tripod head grab the 509I use this all the time with the Blackmagic URSA Mini Pro and some heavier lenses like the Atlas Anamorphic, Cooke, and Canon 17-120servo.I wouldn't use the 504 head for anything larger than that.

Clint B.

2016-09-05T20:47:17

Rated 5 out of 5

Good Product

Recommend to others

GEORGIE J.

2013-07-13T21:00:00

Rated 4 out of 5

great but cheaper than former versions

This is the best value for the price, however compared to older models, it feels cheaper. As heavy as the legs are, they feel flimsy and not as sturdy as imagined. The mid-level spreader can be helpful in some situations, but the ground spreader is much better as you can hold it down with your foot to spread the legs. WIth the mid-level it's more tedious. The head is great, but I had to return the first one because the tension adjustment was clicking tighter or looser as I adjusted it. The head does move really smoothly though, and there's nothing cheaper that's worth it if you're shooting video.

John R.

2013-03-18T21:00:00

Rated 4 out of 5

Awesome

I use this with my Red Scarlet and it works like a charm. The bubble level is easy to use and it feels well constructed for a tripod at this price level. I don't particularly like the plastic locks on the aluminum legs, but they work just fine and definitely feel like they're locking things down.

IAN M.

2011-10-16T21:00:00

Rated 5 out of 5

Fluidly Better Than anything Under $1200

Strongly Recommended for its quality features, strong build and beautiful style. This tripod is better than anything south of $1200, and quite honestly, I cant see anyone telling me they have a better one at $2,000. Fluid Head works well... locking plate is very durable, screw in areas for accessories like TV monitor, mics, PA Mics, etc makes this tripod ahead of most... the legs are very versitle and strong... did I mention the sexy Italian design??? well... what else could you want? Buy & enjoy.... stuff the savings into another lens or buy you girlfriend some jewlery.... ;-)

GoodPixelProductions

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Manfrotto 504HD Specifications

  • 504HD Head: additional pan handle

    504HLV

  • 504HD Head: attachment

    3/8'' male thread attachment type

  • 504HD Head: attachment number

    1/4'' and 3/8'' screws attachment type

  • 504HD Head: balance control

    4 step: 0Kg - 2.5Kg - 5Kg - 7.5Kg

  • 504HD Head: front tilt

    -60° / +90° tilt range

  • 504HD Head: half ball diameter

    2.95 in

  • 504HD Head: independent pan lock

    yes

  • 504HD Head: independent tilt lock

    yes

  • 504HD Head: leveling bubble

    illuminated

  • 504HD Head: load capacity

    19.84 lbs

  • 504HD Head: maximum working temperature

    60

  • 504HD Head: minimum working temperature

    -20

  • 504HD Head: pan bar positions

    2 number

  • 504HD Head: pan bars included (no.)

    1 number

  • 504HD Head: pan drag

    continuously adjustable from 0 to max level

  • 504HD Head: panoramic rotation

    360 °

  • 504HD Head: plate type

    504PL

  • 504HD Head: quick release

    yes

  • 504HD Head: secondary safety system

    yes

  • 504HD Head: sliding travel of plate

    3.27 in

  • 504HD Head: tilt drag

    continuously adjustable from 0 to max level

  • 546B Tripod Leg: Material

    Aluminum

  • 546B Tripod Leg: carry loads

    up to 20kg (44lb)

  • 504HD Head: height

    6.10 in

  • 504HD Head: weight:

    6.39 lbs

  • Kit: load capacity

    19.84 lbs

  • Kit: maximum height

    65.94 in

  • Kit: minimum height

    17.32 in

  • Kit: weight

    13.89 lbs

Related Articles & Videos

Light Painting Photographer, Jason D. Page: How'd They Do That?

Light Painting Photographer, Jason D. Page: How'd They Do That?

Adorama Photography TV presents "How'd They Do That?" featuring light painting fine art photographer, Jason D. Page.
Read more

About Manfrotto 504HD VD Fluid Video Head with 546B Aluminum Tripod Legs - SKU#1728483

FEATURED REVIEWS

Fluidly Better Than anything Under $1200

By GoodPixelProductions

Strongly Recommended for its quality features, strong build and beautiful style. This tripod is better than anything south of $1200, and quite honestly, I cant see anyone telling me they have a better one at $2,000. Fluid Head works well... locking plate is very durable, screw in areas for accessories like TV monitor, mics, PA Mics, etc makes this tripod ahead of most... the legs are very versitle and strong... did I mention the sexy Italian design??? well... what else could you want? Buy &...

View full Review

Winner here!

By STEVEN B.

Great sturdy product. Highly recommend. Buy once and buy right.

The Manfrotto 504HD Head with 546B 2-Stage Aluminum Tripod System combines the innovative and stylish 504HD Fluid Video Head with the 2-stage aluminum 546B Pro Video Tripod--creating an ideal combo of affordability, stability and smooth, precise control. This compact, versatile system was designed with independent video and DSLR shooters in mind and provides the level of ergonomics and support required by today's small crews and one-man bands.

Manfrotto 504HD VD Fluid Video Head with 546B Aluminum Tripod Legs - SKU#1728483 Features

  • Wider, longer platform for your camera and accessories.
  • High rigidity structure delivers maximum response and strength.
  • Ergonomic controls for easy use in all conditions.
  • Easy-link connections for accessories.
  • 4-step counterbalance system ensures a quick set-up with optimal balance.
  • Ball Bearing drag system for precise, smooth movements.
  • Light weight modern materials for optimum balance of strength and weight.

Warranty Information

This used item has a FREE 180-day warranty. See details.

What's in the box:

  • Manfrotto 504HD Fluid Video Head
  • 546B Pro Video Tripod
  • Middle Spreader
  • Padded Carrying Bag
