Used HP DesignJet T230 Wireless 24" Large Format Color Inkjet Plotter Printer

SKU: US1737611

This item is no longer available.

Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

2024-04-28T20:00:00

Rated 4 out of 5

paper size options

this is my 3rd HP plotter, for architectural work. this one is not as user friendly as my last one HP 430) as I still have not been able to change paper sizes at will. so far I have to plot with the A-1 size.

CLAD

2023-02-28T19:00:00

Rated 1 out of 5

Poor durability/longevity and customer suppport

I bought this in Feb 2021. I have only used 150ml of ink as its used very infrequently. Last week, the black ink ran out. We replaced it with a genuine HP 712 High Fill. The cartridge leaked out of the box. HP said the cartridge is defective and the leaking damaged your print head. They then said the print head is out of warranty so you will be on your own to replace it. They said its not how much the print head is used, but it only has one year of coverage. I would avoid this printer and brand in the future due to this experience.

Andre J.

2022-11-15T19:00:00

Rated 5 out of 5

It's a Worthy Replacement for My DesignJet 111.

I was NOT happy with HP's decision to discontinue the HP 11 and HP 82 cartridges, thereby rendering my HP DesignJet 111 as useless. That printer served me very well for 12 years, requiring only a replacement of print heads 4 yers ago. It was relatively fast for an entry level wide format printer. That being said, its replacement, the DesignJet T230, is now online. I have it hooked up to the USB connection. Communication is fast. Print quality, under "speed" is excellent and crisp. Print speed is acceptable and twice as fast as the 111 winter printing a D size sheet. Page setup with the Mac is also simple- I found it did a great job setting up an "Arch D" sheet. Only gripe is that HP did not have a recycling program for the DesignJet 111. Also I had to use a local source for that. Overall I like the T230 and would recommend it.

johncruet48

2022-09-19T20:00:00

Rated 5 out of 5

Does an awesome jobDoes the awesome job

The ink cartridges don't fit right the power cord doesn't fit right but everything else is good

Wade C.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

HP T230 with Ext Warranty Specifications

Print
  • Print speed

    35 sec/page on D, 68 D prints per hour

  • Print resolution

    Up to 2400 x 1200 optimized dpi

  • Technology

    HP Thermal Inkjet

  • Margins

    Roll: 0.2 x 0.2 x 0.2 x 0.2" (5 x 5 x 5 x 5mm)
    Sheet: 0.2 x 0.2 x 0.2 x 0.2" (5 x 5 x 5 x 5mm)

  • Ink types

    Dye-based (C, M, Y); pigment-based (K)

  • Page Yield

    20ml of ink yields 101 A1/D pages, taking into account maintenance routines

  • Ink drop

    5.5 pl (C, M, Y); 12 pl (K)

  • Printheads

    1 (cyan, magenta, yellow, black)

  • Printhead nozzles

    1376

  • Line accuracy

    +/-0.1%

  • Minimum line width

    0.0008" (0.020mm)

  • Max optical density

    8 L min/2.10 D

  • Handling

    Sheet feed, roll feed, automatic horizontal cutter

  • Roll size

    11 to 24" (27.94 to 60.96cm)

  • Sheet size

    8.3 x 11 to 24 x 74.7" (21 x 27.94 to 60.96 x 189.73cm)

  • Standard sheets

    A, B, C, D

  • Grammage

    60 to 280g/sq. m

  • Thickness

    Up to 11.8 mil

  • Applications

    Line drawings
    Presentations
    Renderings

  • Memory

    512MB

  • Hard disk

    None

Connectivity

Jump to...
  • Interfaces

    Gigabit Ethernet (1000Base-T), Hi-Speed USB 2.0, Wi-Fi 802.11a/b/g/n, Wi-Fi Direct

  • Native print languages

    JPEG, URF

  • Printing paths

    Print Anywhere with HP Smart app, HP Click, HP driver for macOS, HP driver for Windows, printing support for Chrome OS, email printing, HP Print Service Plugin for Android, Apple AirPrint

  • Drivers

    Raster driver for Windows and macOS

General

Jump to...
  • HP Software and solutions

    HP Click, HP Smart app, HP Print Preview for Windows, HP Easy Start, HP DesignJet Utility for Windows, HP Support Assistant

  • Remote print enabled

    Yes

  • One-click multi-size printing

    Yes

Environmental ranges

Jump to...
  • Recycled plastic in printer

    30%

  • Operating temperature

    41 to 104 Degree F (5 to 40 Degree C)

  • Operating humidity

    20 to 80% RH

  • Operating altitude

    Up to 9843' (3000m)

  • Storage temperature

    -13 to 131 Degree F (-25 to 55 Degree C)

Acoustics

Jump to...
  • Sound pressure

    42 dB(A) (operating), <16 dB(A) (idle)

  • Sound power

    5.8 B(A) (operating), <3.4 B(A) (idle)

  • Consumption

    <35 W (printing), <5.6 W (ready), <2.1 W (sleep), <0.2 W (standby)

  • Requirements

    Input voltage (auto ranging): 100-240 V ( +/-10%), 50/60 Hz ( +/-3 Hz), 1200 mA max

Certification

Jump to...
  • Safety

    USA and Canada (CSA certified), EU (LVD, EN 60950-1 and EN 62368-1 compliant),Russia, Belarus, Khazakstan (EAC), Ukraine (UA), Singapore (PSB), China (CCC), Argentina (IRAM), India (BIS), Mexico (NYCE)

  • Electromagnetic

    Compliant with Class B requirements, including: USA (FCC rules), Canada (ICES), EU (EMC/RED Directives), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI), Certified as Class B product: Korea (KCC)

  • Environmental

    ENERGY STAR, WEEE, EU RoHS, EAEU RoHS, REACH, ErP, EPEAT Gold

Physical

Jump to...
  • Dimensions (W x D x H)

    39.9 x 17.3 x 11.2" (101.34 x 43.94 x 28.44cm)

  • Weight

    47.4 lbs (21.5kg)

21 Accessories for HP DesignJet T230 Wireless 24" Large Format Color Inkjet Plotter Printer

  • All Accessories (21)
  • Ink (8)
  • Paper (1)
  • Extended Warranty (4)
  • Spindle (1)
  • Printer Stand (1)
  • Roll Cover (1)
  • Sheet Feeder (1)
  • PrintHead (1)
  • Printer Paper (3)

About HP DesignJet T230 Wireless 24" Large Format Color Inkjet Plotter Printer

FEATURED REVIEWS

It's a Worthy Replacement for My DesignJet 111.

By johncruet48

I was NOT happy with HP's decision to discontinue the HP 11 and HP 82 cartridges, thereby rendering my HP DesignJet 111 as useless. That printer served me very well for 12 years, requiring only a replacement of print heads 4 yers ago. It was relatively fast for an entry level wide format printer. That being said, its replacement, the DesignJet T230, is now online. I have it hooked up to the USB connection. Communication is fast. Print quality, under "speed" is excellent and crisp. Print speed...

View full Review

Does an awesome jobDoes the awesome job

By Wade C.

The ink cartridges don't fit right the power cord doesn't fit right but everything else is good

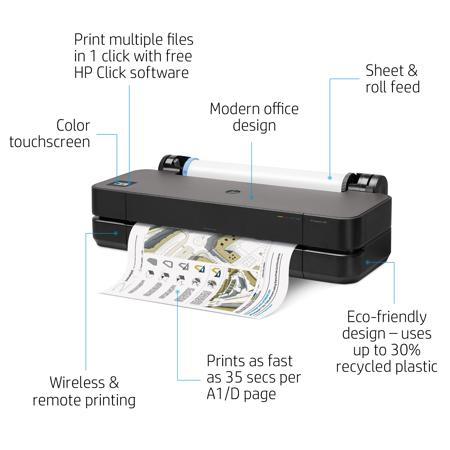

With the DesignJet T230 Wireless 24" Large Format Color Inkjet Plotter Printer, experience a harmonious blend of compact design and professional performance that caters to your precise printing needs. This state-of-the-art plotter is engineered to seamlessly integrate into your workspace and workflow, offering a remarkable space-saving solution without compromising on functionality.

The DesignJet T230 is the epitome of efficiency, boasting high-speed printing capabilities that deliver an A1/D plot in a swift 35 seconds. Its robust 500 MB memory ensures smooth processing of complex files, making it an ideal choice for AEC, GIS, and MCAD professionals who demand sharp, accurate line quality and clear text for their maps, technical drawings, posters, and renders.

Embrace simplicity with the world's smallest wide-format printer, designed to minimize ink usage by up to 95% for routine maintenance, leading to significant cost savings and a reduction in waste. The intuitive HP Click software streamlines your workflow, allowing you to send multiple files with a single click, while the true print preview feature ensures that what you see is what you get.

Sustainability is at the heart of the DesignJet T230, with a design that incorporates up to 30% UL Validated recycled plastic, reducing CO2e emissions by up to 7.3 tons per year for each unit sold. Partnering with HP Planet Partners, the printer facilitates free and convenient recycling of ink cartridges and printheads, supporting your eco-friendly initiatives. Additionally, the printer supports FSC-certified papers and a range of recyclable HP media, further emphasizing its environmental commitment.

The DesignJet T230 is ENERGY STAR certified and EPEAT registered, reflecting its compliance with stringent energy efficiency standards. Its innovative design not only fits your office and budget but also aligns with your eco-conscious values.

Designed for the modern professional, the printer allows for remote management and printing through the HP Smart app, enabling you to stay productive from anywhere at any time. With HP Bright Office Inks, expect up to 31% more line accuracy and up to 65% more color gamut, ensuring that your prints are vibrant and precise.

Note that this printer is tailored to operate exclusively with cartridges equipped with a new or reused HP chip, utilizing dynamic security measures to prevent the use of cartridges with non-HP chips. Regular firmware updates are applied to uphold these security measures, ensuring compatibility with cartridges that adhere to HP's standards.

In summary, the DesignJet T230 Wireless 24" Large Format Color Inkjet Plotter Printer is a compact, efficient, and environmentally responsible printing solution that delivers professional-quality prints with ease, making it a valuable addition to any office that prioritizes precision, productivity, and sustainability.

HP DesignJet T230 Wireless 24" Large Format Color Inkjet Plotter Printer Features

  • 35 sec/page on D, 68 D prints per hour
  • Letter size to 24" x 150'
  • Print Resolution Color (best): Up to 2400 x 1200
  • Sheet feed, roll feed, automatic horizontal cutter

What's in the box:

  • HP DesignJet T230 Wireless 24" Large Format Color Inkjet Plotter Printer
  • Printhead
  • Introductory Ink Cartridges
  • Spindle
  • Setup Poster
  • Power Cord
  • User Manual
  • Original Box
