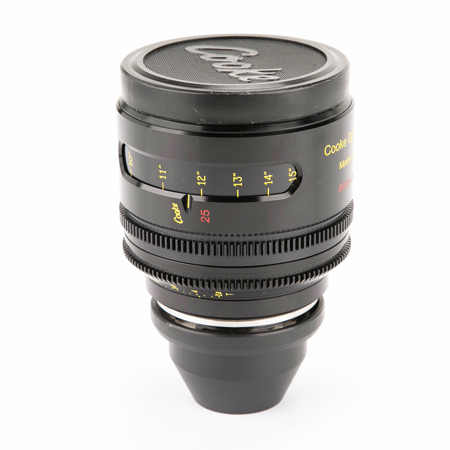

Used Cooke 25mm T2.8 miniS4/i Cine Lens - Focus Scales Marked in Feet - PL Mount
SKU: US1737925
This item is no longer available.
Share:
Overview
Compare
Specs
Protection
Q&A
About Cooke 25mm T2.8 miniS4/i Cine Lens - Focus Scales Marked in Feet - PL Mount
Discover the Cooke miniS4/i Primes 25mm T2.8 Cine Lens for PL Mount, a revolutionary product that meets the demands of contemporary filmmakers. This lens is compact and lightweight, yet it doesn't compromise on resolution, optical quality, or reliability. It matches the performance of the S4/i lenses, delivering exceptional results at a T2.8 speed.
In the era of advanced digital cameras, the T2.8 speed of this lens has become the new, cost-effective T2.0. The Mini S4/i's are fully interchangeable with the S4/i and 5/i lenses, making them versatile for shooting both film and digital images. They are capable of producing high-quality images up to and beyond a 4K resolution, making them a perfect choice for professional cinematography.
The Cooke miniS4/i Prime lenses come in a range of focal lengths including 18, 25, 32, 40, 50, 65, 75, 100, and 135mm, offering a comprehensive selection for any filming requirement. Each lens is equipped with /i Technology, a feature that provides cinematographers and camera operators with crucial information on lens setting, focusing distance, aperture, and depth-of-field.
This technology also provides data on hyperfocal distance, serial number, owner data, lens type, and focal length in both metric and footage measurements. For zoom lenses, the zoom position is also displayed. Designed for all PL mounted professional motion picture film and electronic cameras, the Cooke miniS4/i Primes 25mm T2.8 Cine Lens for PL Mount is a valuable addition to any filmmaker's toolkit.
Cooke 25mm T2.8 miniS4/i Cine Lens - Focus Scales Marked in Feet - PL Mount Features
- Optical Design: The optics are designed to give maximum performance at full aperture with superior control of flare, distortion and spherical aberration.
- i Electronics: Accessible via contacts in PL mount that sync with /i compatible cameras.
- Colour Balance: All miniS4/i prime lenses are colour balanced to a specification within parameters approved by Kodak.
- Aperture: All miniS4/i primes have a true T2.8 aperture and cover Super 35mm format.
- Index Marks: Every index mark is labelled. More detailed markings allow for more detailed focus control.
- Focus Movement: Cooke cam-style focus movement coupled with the added benefit of a large lens barrel diameter, has allowed for an increased number of focus markings, particularly at close focus. Spherical aberration has been controlled throughout the range of focal lengths to eliminate compensation of changes in back focus with aperture
- Camera Mounts: Arriflex PL Mount
- Focus Scaling: Large, clear numerals on both sides of the focus barrel benefit thefocus puller when shooting under difficult lighting conditions. Plus the the Entrance Pupil position is engraved on the lens.
- Compatibility: All Cooke miniS4/i primes have a common fixed front diameter of 87mm, with a focus drive gear of 121T x 0.8 mod and an iris drive gear of 119T x0.8.
- External Finish: A scratch resistant PTFE hard anodised finish is provided on all Cooke lenses, providing a durable, hard-wearing surface to meet the most demanding environmental conditions.
- Iris: An eight-leaf linear module iris assembly is fitted into miniS4/i primes with an aperture range of T2.8 to T22.
- Weight/Size Ratio: The lenses are designed for all shooting applications, including handheld and Steadicam, providing comfortable balance ratio with the latest compact cameras.
- Reliability and Service: miniS4/i prime lenses are designed to meet a market requirement for fully reliable performance with a minimum of downtime.
