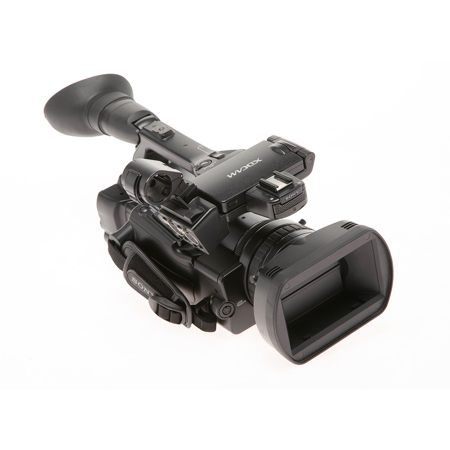

Sony PMW-200 3-1/2" Exmor CMOS XDCAM HD422 Memory Handy Camcorder (242 Hours)

Picture does not represent the actual item
See what's in the box

See all Sony items

Used Sony PMW-200 3-1/2" Exmor CMOS XDCAM HD422 Memory Handy Camcorder, 1920x1080(HxV) Effective Picture Elements, 14x (Optical) Zoom Ratio (242 Hours)

SKU: US1746061

This item is no longer available.

Overview
Compare
Learn
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

2013-02-04T19:00:00

Rated 5 out of 5

Perfectly stated! All the info I needed!

I wanted a high quality camera for my family home videos and with this product I got that and so much more! I Love it and will enjoy it for years to come!

Super D.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Browse our FAQ

See Terms & Conditions

Sony PMW-200 Specifications

  • Imaging Device

    3 x 1/2" Exmor CMOS Sensors

  • Effective Picture Elements

    1920 x 1080 (HxV)

  • Slow Shutter

    2, 3, 4, 5, 6, 7, 8, 16, 32 and 64-frame accumulation

  • Sensitivity

    2000 lx, 89.9% reflectance (F11 typical)

  • Gain Selection

    -3, 0, 3, 6, 9, 12 and 18dB

  • Video Recording Format 1

    UDF Mode (HD Recording):
    MPEG HD422 (MPEG-2 422P@HL):
    CBR (50 Mbps)
    MPEG HD420 (1440 x 1080, MPEG-2 MP@HL):
    HQ mode (VBR, maximum bit rate: 35 Mbps)
    SP mode (CBR, 25 Mbps) - playback only
    LP mode (VBR, maximum bit rate: 18 Mbps) - playback only
    UDF Mode (SD Recording)
    DVCAM (CBR, 25 Mbps)
    FAT Mode (HD Recording)

  • Video Recording Format 2

    MPEG HD420 (1920 x 1080, MPEG-2 MP@HL):
    HQ mode (VBR, maximum bit rate: 35 Mbps)
    SP mode (CBR, 25 Mbps)
    Fat Mode (SD Recording)
    DVCAM (CBR, 25 Mbps)

  • Audio Recording 1

    UDF Mode (HD Recording)
    MPEG HD422 (MPEG-2 422P@HL):
    4 channels, 48 kHz (24-bit LPCM)
    MPEG HD420 (1440 x 1080, MPEG-2 MP@HL):
    4 channels, 48 kHz (16-bit LPCM)
    UDF Mode (SD Recording)
    DVCAM: 4 channels, 48 kHz (16-bit)

  • Audio Recording 2

    UDF Mode (HD Recording)
    MPEG HD422 (MPEG-2 422P@HL):
    4 channels, 48 kHz (24-bit LPCM)
    MPEG HD420 (1440 x 1080, MPEG-2 MP@HL):
    4 channels, 48 kHz (16-bit LPCM)
    UDF Mode (SD Recording)
    DVCAM: 4 channels, 48 kHz (16-bit)

  • Recording Media

    SxS Express 34 Cards (SBP-8/16/32GB)

  • Recording Time (UDF Mode) 1

    50 Mbps MPEG HD422 (MPEG-2 422P@HL)
    Approx. 120 min with 64 GB SxS memory card
    Approx. 60 min with 32 GB SxS memory card
    Approx. 30 min with 16 GB SxS memory card
    35 Mbps VBR, HQ Mode MPEG HD420 (1440x1080, MPEG-2 MP@HL)
    Approx. 180 min with 64 GB SxS memory card
    Approx. 90 min with 32 GB SxS memory card
    Approx. 45 min with 16 GB SxS memory card

  • Recording Time (UDF Mode) 2

    25 Mbps DVCAM
    Approx. 220 min with 64 GB SxS memory card
    Approx. 110 min with 32 GB SxS memory card
    Approx. 55 min with 16 GB SxS memory card

  • Recording Time (FAT Mode) 1

    35 Mbps VBR, HQ Mode - MPEG HD420 (MPEG-2 MP@HL)
    Approx. 200 min with 64 GB SxS memory card
    Approx. 100 min with 32 GB SxS memory card
    Approx. 50 min with 16 GB SxS memory card
    25 Mbps CBR, SP Mode - MPEG HD 420 (MPEG-2 MP@HL-14)
    Approx. 280 min with 64 GB SxS memory card
    Approx. 140 min with 32 GB SxS memory card
    Approx. 70 min with 16 GB SxS memory card

  • Recording Time (FAT Mode) 2

    25 Mbps DVCAM
    Approx. 220 min with 64 GB SxS memory card
    Approx. 110 min with 32 GB SxS memory card
    Approx. 55 min with 16 GB SxS memory card

  • Inputs/Outputs: Genlock Input

    1 x BNC (switchable to composite video out), 1.0 Vp-p, 75 ohms

  • Inputs/Outputs: TC Input

    1 x BNC (switchable to TC Out), 0.5-1.8 Vp-p, 10 kohms

  • Inputs/Outputs: Audio Input

    2 x 3-pin female XLR (line, mic, mic +48 V selectable)

  • Inputs/Outputs: SDI Output

    1 x BNC (HD/SD switchable)

  • Inputs/Outputs: Composite Video Output

    1 x BNC (switchable to Genlock In), HD-Y / composite switchable, 1.0 Vp-p, 75 ohms

  • Inputs/Outputs: Audio Output

    1 x A/V output jack (10-pin connector)

  • Inputs/Outputs: TC Output

    1 x BNC (switchable to TC In), 1.0 Vp-p, 10 kohms

  • Inputs/Outputs: Headphone Jack

    1 x 3.5 mm mini-jack (stereo)

  • Inputs/Outputs: Speaker

    1 x monaural 250 mW monitor speaker

  • Inputs/Outputs: Microphone

    1 x omni-directional stereo electret condenser microphone

  • Inputs/Outputs: DV I/O (i.LINK)

    1 x 4-pin IEEE-1394 HDV (HDV 1080i) / DV I/O, S400

  • Inputs/Outputs: USB Port

    1 x USB 2.0 (device), mini-B type

  • Lens: Zoom Ratio

    14x (optical) (servo/manual)

  • Lens: Focal Length

    5.8 - 81.2 mm

  • Lens: Aperture

    f/1.9 - f/16 (auto/manual selectable)

  • Lens: Focus

    AF/MF/Full MF selectable
    Macro

  • Monitoring: Viewfinder

    Electric Viewfinder (EVF)
    Approx 1.2 million pixels
    852 x 3 x 480 (HxRGBxV)

  • Monitoring: LCD Monitor

    3.5" (8.9 cm) color LCD
    852 x 3 x 480 (HxRGBxV)
    Aspect Ratio: 16:9

  • Media Type

    2 x ExpressCard/34 slots

  • Power Requirements

    DC 12 V

  • Power Consumption

    13 W (runs up to 4 hrs using BP-U60 battery)

  • Operating Temperature

    32 to 104deg.F (0 to 40deg.C)

  • Storage Temperature

    -4 to 140deg.F (20 to 60deg.C)

  • Humidity

    10 to 90% (relative humidity)

  • Dimensions (W x H x D)

    6.9 x 6.5 x 16.5" (17.52 x 16.51 x 41.91 cm)

  • Weight

    Camcorder Only: 5.1 lbs (2.3 kg)
    Fully Loaded: 6 lbs (2.7 kg)

Related Articles & Videos

Sony Announces Two Professional Camcorders, Lens

Sony Announces Two Professional Camcorders, Lens

Sony today released its latest XDCAM solid-state memory camcorder, the Sony PXW-X200. Built around an improved 1/2-inch type Exmore 3COMOS sensor, the camera boasts a 17x optical zoom lens and XAVC Intra/Long GOP recording with..

Read more
Why Smart Videographers Will Attend NAB

Why Smart Videographers Will Attend NAB

"Future-Proof" your career as a media professional and business owner.While the Read more

About Sony PMW-200 3-1/2" Exmor CMOS XDCAM HD422 Memory Handy Camcorder (242 Hours)

FEATURED REVIEWS

Perfectly stated! All the info I needed!

By Super D.

I wanted a high quality camera for my family home videos and with this product I got that and so much more! I Love it and will enjoy it for years to come!

The Sony PMW-200 Camcorder is equipped with three 1/2" Full HD 1920 x 1080 Exmor CMOS sensors, which support 1000 TV1 high resolution, F11 (2000 lx) high sensitivity, low 56 dB noise and a wide dynamic range. It works for SD/HD recording and features a 14x zoom lens with a unique focus ring mechanism.

The camera is equipped with dual Express Card SxS memory card slots and supports up to four hours of 50 Mbps MPEG HD422 recording. It supports both UDF and FAT file format modes as well. Other functions include Slow/Quick motion playback, focus magnification, slow shutter, shutter angle settings and picture cache recording. The PMW-200 features four-channel audio recording, as well as HD/SDI and composite/HD-Y outputs. There's six Gamma settings, four Hyper Gamma settings and a USB port for using the camcorder as a card reader.

Sony PMW-200 3-1/2" Exmor CMOS XDCAM HD422 Memory Handy Camcorder (242 Hours) Features

  • Three 1/2" Full HD Exmor 3CMOS sensors
  • 50 Mbps MPEG HD422 recording as MXF files (UDF mode only)
  • SD recording and playback (DVCAM) standard
  • 14x fixed zoom lens (servo/manual switchable) with unique focus ring mechanism
  • Two ExpressCard SxS memory card slots
  • Record up to four hours or 50 Mbps MPEG HD422 in camcorder using two 64 GB SxS-1A memory cards (not included)
  • UDF (Professional Disc compatible) or FAT (XDCAM EX compatible) file format mode shooting in order to have similar high-res files and workflows with existing Professional Disc and XDCAM EX camcorders
  • Low power consumption
  • Compact and lightweight design for better mobility
  • 3.5" (8.9 cm) color LCD display with 16:9 aspect ratio
  • Slow and Quick motion
  • Focus Magnification for focus assistance
  • Shutter Angle Settings
  • Picture Cache Recording
  • High-quality four-channel audio recording
  • HD/SD-SDI output and composite/HD-Y output
  • USB interface for connecting camcorder as card reader
  • Six Standard Gamma settings and four HyperGamma settings

Used Guarantee

30-day money back!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • "Sony PMW-200 3-1/2"" Exmor CMOS XDCAM HD422 Memory Handy Camcorder
  • Lens Hood with Shutter
  • BP-U30 Lithium-Ion Battery
  • BC-U1 Battery Charger
  • Mounting Bracket
  • Item Note: Missing Software; Shoulder Strap; AV Multi Cable; Remote Control; USB Cable
