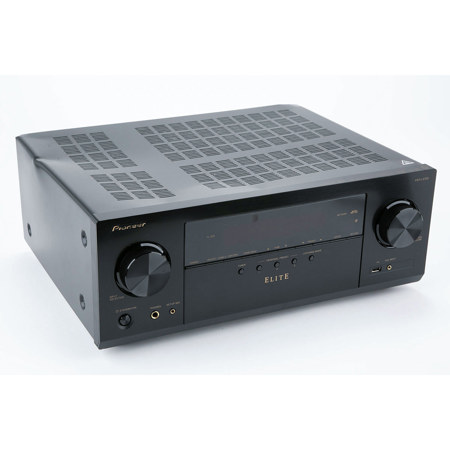

Used Elite VSX-LX105 100W 7.2-Channel Network A/V Receiver

Item Note: Received dented on top; crushed in; sold for parts only

SKU: US1778451 MFR: VSX-LX105
$88.00
New: $799.00
Used Savings: $711 (89%)
Earn VIP Reward Points

What`s in the box:

  • Pioneer Home Audio Elite VSX-LX105 100W 7.2-Channel Network A/V Receiver
  • RC-974R Remote Controller- Speaker Setup Microphone
  • Indoor FM Antenna
  • AM Loop Antenna
  • Power Cord
  • ** Item Note: Received dented on top; crushed in; sold for parts only **
Calculate Shipping

See Options

Protect your gear with Adorama Protect.* Learn more

1 Year

$19.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Pioneer Home Audio VSX-LX105 Specifications

Amplification

Amplification

Jump to...
  • Channels

    7

  • Amplification Type

    Direct Energy

  • 100 W/ch

    Yes (8 ohms, 20 Hz-20 kHz, THD 0.08 %, 2ch Driven FTC)

  • 210 W/ch

    Yes (6 ohms, 1 kHz, THD 10 %, 1ch Driven)

Audio Features

Jump to...
  • Dolby Atmos

    Yes (Dolby Surround Upmixer supports DTS Formats)

  • DTS:X

    Yes (DTS Neural:X Upmixer supports Dolby Formats)

  • Reflex Optimizer

    Yes

  • Dolby Atmos Height Virtualizer

    Yes

  • DTS Virtual: X

    Yes (Dolby TrueHD, Dolby Digital Plus)

  • DTS-HD Master Audio

    Yes (DTS-HD High Resolution Audio, DTS 96/24, DTS-ES, DTS Express)

  • DSD Disc (SACD) Playback

    Yes (via HDMI (2.8 MHz/2ch, 5.1ch))

  • Digital Quad-Core 32-bit DSP

    Yes (Cirrus Logic)

  • 192 kHz/24-bit D/A Conversion

    Yes (for Hi-Res Audio)

  • eARC on HDMI OUT (MAIN)

    Yes

  • Advanced Sound Retriever (2ch)

    Yes

  • Advanced Surround Modes

    Classical, Unplugged, Entertainment Show, Drama, Advanced Game, Action, Rock/Pop, Sports, Extended Stereo, Mono Music, Front Stage Surround Advance

Video Features

Jump to...
  • Support HDMI 2.1

    (HDMI IN 1-3) with 8K, VRR (Variable Refresh Rate), ALLM (Auto Low Latency Mode), QFT (Quick Frame transport), DSC (Display Stream Compression), and QMS (Quick Media Switching) pass-through

  • Supports HDR10+ and HLG

    8K/60p (4:2:0/10-bit), 8K/30p (4:4:4/10-bit, 4:2:2/12-bit), 4K/120p (4:4:4/10-bit, 4:2:2/12-bit), 4K60p (4:4:4/12-bit) and BT.2020 color; DeepColor (36-bit), "x.v.Color", LipSync, and HDCP 2.3

  • Dolby Vision Compatible

    Yes

  • Ultra HD Upscaling

    4K to 8K, 1080p to 8K/4K

Home Network Features

Jump to...
  • Works with Alexa

    Yes (supporting multi-room music)

  • Works with Hey Google and Chromecast

    Yes (built-in)

  • DTS Play-Fi w/Pioneer Music Control App

    Yes

  • Apple AirPlay 2 with Siri Voice Control

    Yes

  • Works with SONOS

    Yes (supporting multiple Sonos Connect control and Volume Pass Through mode)

  • Amazon Music HD

    Yes (Pandora, Spotify, TIDAL, and Deezer Hi-Fi Music- Streaming Services Ready)

  • Internet Radio with TuneIn

    Yes

  • Hi-Res Audio File Playback

    Yes (via USB/Network)

  • Up to 192 kHz/24-bit

    Yes (ALAC, AIFF, FLAC, WAV (RIFF) and 5.6 MHz DSD)

Convenience Features

Jump to...
  • Personal Preset

    Yes

  • Dialog Enhancement

    Yes

  • Dual Band (5GHz/2.4GHz) Wi-Fi Built-in

    Yes

  • Bluetooth Wireless Technology

    Version: 4.2, Profile: A2DP 1.2/AVRCP 1.3, Codec: SBC/aptX/aptX HD (TX), SBC/AAC(RX) Built-in

  • Pioneer Remote App Ready

    Multi-room Entertainment Control and Network Streaming

  • User-Friendly GUI w/System Setup Menu

    Yes

  • On-Screen Information

    Yes (for Audio, Video and Network)

  • Web Setup

    Yes

  • Auto Power Off in HDMI Standby Through

    Yes

  • AM/FM Tuner

    40 Presets

  • Sleep Timer

    Yes

  • User-Friendly Simple Remote Control

    Yes

Front Terminals

Jump to...
  • USB 1 In for USB Drive

    Yes

  • MCACC Setup MIC In

    Gold-Plated

  • Audio 1 In

    Mini Stereo Jack, Gold-Plated

  • Phones 1 Out

    Gold-Plated

Rear Terminals

Jump to...
  • HDMI 6 In (4 Assignable)

    Yes

  • HDMI 2 Out

    1 for MAIN, 1 for SUB/ZONE 2

  • Ethernet 1 In

    Yes

  • USB 1 In for USB Drive

    Yes

  • Audio 4 In

    Assignable

  • Phono (MM) 1 In

    Assignable

  • Digital Coaxial 1 In

    Assignable

  • Digital Optical 1 In

    Assignable

  • Subwoofer 2 Pre Out

    Yes

  • ZONE 2 Pre/Line Out/ZONE B Line Out

    Yes

  • Speaker 9-channel Out

    FRONT, CENTER, SURROUND/HEIGHT, HEIGHT/SURROUND BACK/Bi-AMP, ZONE 2

  • IR 1 In

    Yes

  • 12 V Trigger 1 Out

    Yes

  • RS-232C

    Yes

  • FM/AM Antenna

    Yes

Physical

Jump to...
  • Power Requirements

    AC 120 V, 60 Hz

  • Power Consumption/Standby

    635 W/0.1 W

  • Dimensions (W x H x D)

    17.12 x 6.81 x 14.58" (435 x 173 x 370.5mm)

  • Weight

    21.6 lbs (9.8kg)

About Pioneer Elite VSX-LX105 100W 7.2-Channel Network A/V Receiver - SKU#1778451

Explore the world of immersive audio and high-definition visuals with the Elite VSX-LX105 100W 7.2-Channel Network A/V Receiver. This sleek and sophisticated device from Pioneer Home Audio is designed to elevate your home entertainment experience with its advanced features and high-tech integrations.

Experience the power of a 7.2-channel AV receiver, capable of a 5.2.2 configuration. With five traditional speaker channels, two dedicated to height or surround sound with Dolby Atmos or DTS:X, and two subwoofer outputs, this receiver ensures a rich and detailed sound experience. The VSX-LX105 also features Dolby Atmos Height Virtualizer and DTS:X, enabling you to enjoy height-oriented sounds even without up-firing speakers.

The VSX-LX105 is not just about superior sound, it also delivers exceptional visuals. With Ultra HD, HDR10+, HLG, and Dolby Vision pass-through, you can enjoy stunning imagery. The receiver supports HDMI 2.1 for 8K, VRR, ALLM, and QFT pass-through, ensuring high-resolution picture quality and next-generation gaming experiences.

Personalize your entertainment with presets, two HDMI outputs, and voice control with Alexa or Google Assistant. Stream your favorite music effortlessly via Bluetooth, or connect your entire music library through Roon. The VSX-LX105 is also compatible with a variety of music streaming services, offering endless musical opportunities.

The VSX-LX105 is equipped with Pioneer's Multi-Channel Acoustic Calibration System (MCACC) that adjusts sound according to your listening area and speakers. It also features Auto Phase Control Plus for real-time phase difference analysis and compensation, ensuring strong bass and clear high-frequency sound.

With bi-directional Bluetooth, you can stream from your device to the AVR or transmit audio playing through the AVR to compatible wireless headphones. The VSX-LX105 also offers discrete 2-zone switching, allowing you to set up two distinct entertainment zones in your home.

Experience the future of home entertainment with the Elite VSX-LX105 100W 7.2-Channel Network A/V Receiver, a perfect blend of style, sophistication, and advanced technology.

Pioneer Elite VSX-LX105 100W 7.2-Channel Network A/V Receiver - SKU#1778451 Features

  • Enhanced gaming
  • Discrete zone 2 HDMI switching
  • Immersive sound from your tv apps
  • HDMI 2.1 with 8K

What's in the box:

  • Pioneer Home Audio Elite VSX-LX105 100W 7.2-Channel Network A/V Receiver
  • RC-974R Remote Controller- Speaker Setup Microphone
  • Indoor FM Antenna
  • AM Loop Antenna
  • Power Cord
  • Item Note: Received dented on top; crushed in; sold for parts only
