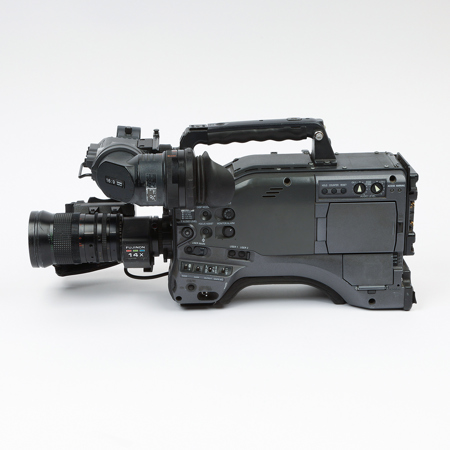

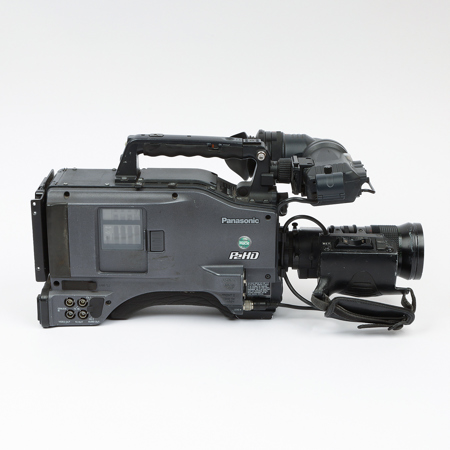

Used Panasonic AG-HPX500 2/3" Shoulder Mounted P2 Camcorder Kit

SKU: US1794578

This item is no longer available.

Overview
Compare
Learn
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

2015-08-02T21:00:00

Rated 5 out of 5

Excelent equipment

I use that equipment in My life production and work great

CHARLES S.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Panasonic AG-HPX500 Specifications

  • Signal System

    1080/60i, 30p, 24p
    1080/50i, 25p
    720/60p, 30p, 24p
    720/50p, 25p
    720pN Variable Frame Rates
    60 Hz mode: 12, 18, 20, 22, 24, 26, 30, 32, 36, 48, 60 fps
    50 Hz mode: 12, 18, 20, 23, 25, 27, 30, 32, 37, 48, 50 fps
    NTSC: 480/60i, 30p, 24p
    PAL: 576/50i, 25p

  • Image Device

    2/3" 3CCD

  • Lens

    No

  • Horizontal Resolution

    1080 Lines

  • Sensitivity

    F10 at 2000 lux

  • Built-in Filters

    ND: Clear, 1/4, 1/16, 1/64

  • LCD Monitor

    3.5"

  • Viewfinder

    1.5" CRT B/W, NTSC/PAL Switchable

  • Scan Matching

    Yes, Different Ranges for Different Record Modes

  • Memory Card Slot

    SD Memory Cards for Scene-File Sharing
    4 P2 Card Slots for Video

  • Shutter Speed Range

    1/12 to 1/2000 sec (Range depends on Record Mode)

  • Gain Selection

    0-18 dB Range

  • Audio Signal Format

    16 bit/48kHz Four Channels

  • Audio Frequency Response

    20Hz to 20kHz

  • Input and Output Connectors

    Composite: BNC (x1 Output)
    Component: D4 Terminal (x1 Output)
    SDI/HD-SDI: BNC (x1 Output)
    Timecode: BNC (x1 Input, x1 Output)
    FireWire: 6-Pin
    DC Power: XLR (x1 Input, x1 Output)
    Remote: 10-Pin
    Lens: 12-Pin
    EVF: 20-Pin
    USB 2.0: 4-Pin (Type-B)
    Microphone: XLRx2 (x1 Input)
    Analog Audio: XLRx2 (x1 Input)
    Line Out: Pin Jack
    Headphone: 3.5mm Stereo Mini Jack

  • Power Requirements

    12 VDC (11-17V)

  • Power Consumption

    23W

  • Operating Temperature

    32-104 Deg. F (0-40 Deg. C)

  • Dimensions (W x H x D)

    5.6 x 10.4 x 12.6" (14 x 26.1 x 31.8 cm)

  • Weight

    8.4 lb (3.8 kg)

Related Articles & Videos

NAB: 4K Capture, Display Dominate Pro Show

NAB: 4K Capture, Display Dominate Pro Show

NAB 2013 Show Coverage. As the NAB 2013 show opens, the ARC (Adorama Rental Company) is there in full force, displaying a wide array of recently-announced pro video and digital cinema cameras, including..

Read more

About Panasonic AG-HPX500 2/3" Shoulder Mounted P2 Camcorder Kit

FEATURED REVIEWS

Excelent equipment

By CHARLES S.

I use that equipment in My life production and work great

Panasonic AG-HPX500 2/3" Shoulder Mounted P2 Camcorder
If you’re looking for a camera system that is lightweight enough to be carried virtually anywhere but still conforms to the shoulder-mount form factor that many ENG production pros require, the Panasonic AG-HPX500 offers both form and function. The HPX500 delivers full-HD video thanks to its ?-inch Progressive CCD sensor while its advanced signal processor allows for 14-bit A/D conversion for unbeatable accuracy. Unlike similar priced camcorders, the AG-HPX500 can shoot a variety of standard definition and high definition resolutions, including 720p, 1080i and 1080p. All footage is recorded to the industry-standard DVCPRO, DVCPRO50, DVCPRO HD formats, which can be used in almost every professional editing suite.

Key Features

  • 2/3" Progressive CCD Sensor captures Full-HD video at 1080/24p and 1080/30p
  • Advanced Signal Processor uses 14-bit A/D conversion and 19-bit inner processing to attain unprecedented accuracy
  • Includes a Panasonic AJ-P2AD1G and a Panasonic AJ-P2M032AG for use with broadcast-standard P2 Flash Memory
  • Wealth of professional inputs including HD-SDI and SDI inputs

Built for news organizations and freelancers who demand the flexibility of a ?-inch system, the Panasonic AG-HXP500 offers both a familiar form factor coupled with the industry-standard features that allow for ease of use with existing workflows. This bundle includes the Panasonic HXP500 camera body along with Panasonic AJ-P2AD1G and a Panasonic AJ-P2M032AG.

From the Manufacturer

The Panasonic AG-HPX500 is a 2/3" CCD high definition camcorder designed for use with the P2 memory-based recording system. The camera truly shines in a wide variety of applications previously only possible on the highest-end Varicam. The unit is lightweight enough to take almost anywhere while still conforming to the shoulder-mounted form factor professionals require. Four P2 slots allow for up to 256 minutes of continuous recording.

Unlike similar priced camcorders, the AG-HPX500 can shoot a variety of standard definition and high definition resolutions, including 720p, 1080i and 1080p. All footage is recorded to the industry-standard DVCPRO, DVCPRO50, DVCPRO HD formats, which can be used in almost every professional editing suite.

It Features such as variable frame rates, 60p, chromatic aberration compensation (CAC), cine-like gamma and many others provide limitless possibilities for dramatic, news and sports productions. No matter what the task the AG-HPX500 has it covered.

Panasonic AG-HPX500 2/3" Shoulder Mounted P2 Camcorder Kit Features

  • P2 Flash Memory Recording Storage: The AG-HPX500 is the first high definition ENG camcorder to feature P2 (professional plug-in) capability. P2 was developed as a recording system for professionals and is widely used amongst broadcasters and independent videographers
  • High-Quality 2/3" CCDs: Borrowing technology from the highly acclaimed AG-SDX900, the AG-HPX500's advanced 2/3" progressive CCDs provide the kind of high sensitivity not available in comparably cameras
  • Advanced Digital Signal Processor: The AG-HPX500 digital signal processor uses 14-bit A/D conversion and 19-bit inner processing to attain unprecedented accuracy. While camera does not record 1080/60p, it is from this capture that all other signals are made, which includes both 1080/24p and 1080/30p
  • DVCPRO HD Codec: Thanks to a low compression ratio at a bit rate of 100 Mbps (1080/59.94i, 720/59.94p) along with the easy-to-edit intraframe compression system, DVCPRO HD is suitable for recording fast-moving subjects with no motion artifacts whatsoever, making it ideal for slow-motion capture
  • Professional Camera Features: The camera features almost every conceivable input, including HD-SDI. Serial Digital Interface (SDI) allows users to output and view digital video without any digital to analog conversion
  • Chromatic Aberration Compensation: Chromatic aberration (CA) usually appears as a hard pink glow at and around high contrast areas and lines. The phenomenon often results from imperfections in the camera lens' optics
  • Super Reliable Work Flow Process: The P2 card is a new solid state recording media that Panasonic developed to bridge the gap between information technology and professional video. About the same size as a PC card, the P2 card stores large amounts of video and audio data in MXF-format files

What's in the box:

  • Panasonic AG-HPX500 2/3 Shoulder Mounted P2 Camcorder
  • 16:9 Wide Display Viewfinder
  • Fujinon Pegasus II 14x9 BERM-28B Zoom Lens
  • Lens Cap
  • Panasonic P2 Card (32GB)
  • P2 Card Reader
  • 2x USB Cables
  • Gold Mount Battery Plate
  • Mic Holder- Eyecup
  • Shoulder Strap
  • Item Note: Mic Holder Has A Crack But Still Works Fine; Missing Microphone
