Used Sony EVI-D70 Pan/Tilt/Zoom Security Camera with Telemetrics Control Panel & RS-232C Cable, 18x Optical Zoom, White

SKU: US1795002

This item is no longer available.

Recommended Items

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Sony EVI-D70 Specifications

  • EVI-D70 Camera: Application

    Video Conferencing, Web Casting, Day and Night Security

  • EVI-D70 Camera: Image Device

    1/4" CCD

  • EVI-D70 Camera: Signal System

    NTSC

  • EVI-D70 Camera: Lens

    4.1-73.8mm (18x Optical Zoom) f/1.4-3.0
    Additional 12x Digital Zoom

  • EVI-D70 Camera: Number of Pixels

    379,000 Pixels

  • EVI-D70 Camera: Horizontal Resolution

    470 TV Lines

  • EVI-D70 Camera: Minimum Illumination

    1 Lux with f/1.4

  • EVI-D70 Camera: Signal-to-Noise Ratio

    >50dB

  • EVI-D70 Camera: Max Field-of-View

    Horizontal: 48deg.

  • Sony EVI-D70 Security Camera: Pan Angle

    +/-170deg. from Center

  • EVI-D70 Camera: Pan Speed

    100deg. /s (max)

  • EVI-D70 Camera: Tilt Angle

    90deg. Up, -30deg. Horizontal

  • EVI-D70 Camera: Tilt Speed

    90deg. /s

  • EVI-D70 Camera: Signal Connectors

    Composite Video: RCA (x1 Output)
    S-Video: 4-Pin (x1 Output)
    Control: RS-232C (x1 Input, x1 Output)
    Control:RS-422 (x1 Input)
    Power: Coaxial (x1 Input)

  • EVI-D70 Camera: Power Requirements

    10.8-13.2VDC

  • EVI-D70 Camera: Power Consumption

    12W

  • EVI-D70 Camera: Operating Temperature

    32 to 104deg. F / 0 to 40deg. C

  • RS-232C Cable: Connectors

    mini-din (8-pin) to D-Sub (9-pin)

  • RS-232C Cable: Cable Length

    9.8' / 2.98mm

  • Telemetrics CP-ITV4-S: Application

    Sony EVI-HD1 / HD3 / HD7 / H100 / D90 / D80 / D100 / D70 / D30 /BRC-330 / Z700 / H700 / H900

  • Telemetrics CP-ITV4-S: Connections

    RS-232g

  • Dimensions (W x H x D)

    EVI-D70 Camera: 5.3 x 5.8 x 5.8" / 13.46 x 14.73 x 14.73cm

  • Weight

    EVI-D70 Camera: 2.12lbs / 0.961kg

About Sony EVI-D70 Pan/Tilt/Zoom Security Camera - White SKU#1795002

Sony EVI-D70 Pan/Tilt/Zoom White Security Camera, a Telemetrics CP-ITV4-S Four Camera Control Panel and a Sony 9.8' EVI/BRCRS-232 Cable. This kit provides you with a remotely-operated motorized pan, tilt and zoom camera and a manual control panel. The included cable connects the camera and the control panel, providing you remote control of the camera. The kit can be used for security, teleconferencing and educational applications. This is a basic setup that provides for expansion as your needs increase.

The camera features RS-232 and RS-422 ports for remote control functionality. The included CP-ITV4-S remote unit uses RS-232 protocols to individually control up to four available cameras, either with each camera connected directly to the panel or with the cameras daisy chained together. Daisy chaining the cameras together may allow you to run less cable than if you ran a separate RS-232 cable to each camera and you can still control each camera individually. The remote panel features joystick control with adjustments for speed of the camera's pan, tilt and zoom functions, it also allows you to manually adjust the camera's iris, to brighten or darken the video as necessary. The remote panel has storage for six camera positions presets that you can program and store.

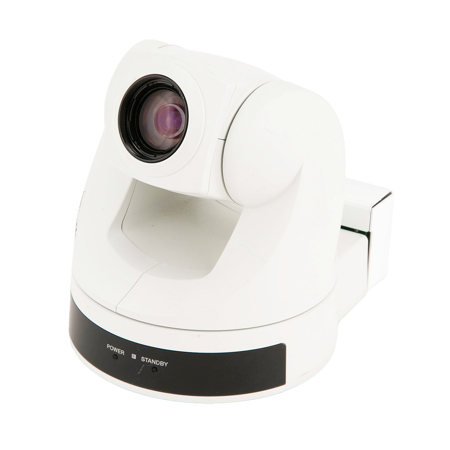

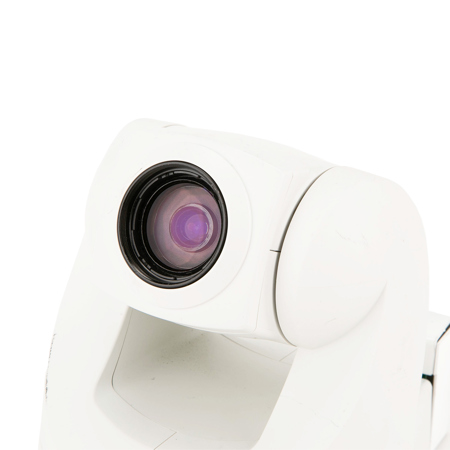

Sony EVI-D70 Pan / Tilt / Zoom Security Camera (White)

The Sony EVI-D70 Pan / Tilt / Zoom Security Camera (White) is a remote controlled communication video camera that is compact, easy to use and is ceiling mountable. Incorporating an 18x optical zoom lens, the camera allows a user to zoom in on a small or distant object with exceptional clarity. The unit comes with a wireless remote controller. This "W" model comes with a white housing.

High Speed and Wide Range Pan and Tilt
The camera offers a wide pan angle of 170 degrees from center. And it has a maximum pan speed of 100 degrees per second. The unit will tilt upward a full 90 degrees and downward 30 degrees. Its tilt speed is a maximum of 90 degrees per second.

18 x Optical Zoom
The EVI-D70 offers a high quality 18 times zoom lens that, at its widest, offers 48 degrees of horizontal view and at full zoom 2.7 degrees. The camera has a digital zoom feature that adds 12x power to the optical lens zoom.

Six Pre-Set Positions
The user may store up to 6 predetermined positions of the pan/tilt/zoom for instant recall. The presets also include picture parameters like white balance and exposure features.

Alarm Feature
These communication cameras provide an alarm function that can detect changes within the user-designated area of an image. When a change is noticed, the camera outputs an alarm trigger signal to external equipment via the VISCA protocol.

Control Protocols
The EVI-D70 camera can be remotely controlled via either RS-232C or RS-422. RS-422 offers control connections up to about 4000 feet. An RS-232C controller (a computer) can be up to about 150 feet from the camera.

Infrared Filter
The camera, in extreme low-light conditions, is sensitive to infrared beams not visible to the human eye. The infrared-cut filter makes the camera effective in both day and night conditions.

Sony 9.8' EVI-Series RS-232C Cable

The Sony 9.8' EVI-Series RS-232C Cable provides a connection between Sony's EVI-series PTZ cameras and a computer, enabling remote control.

Sony EVI / BRC Camera CP-ITV4-S Control Panel by Telemetrics

The Sony EVI / BRC Camera CP-ITV4-S Control Panel by Telemetrics is an RS-232 joystick panel that controls up to four Sony PTZ cameras from the EVI and BRC line of models. It connects directly to one and the rest get daisy-chained in. Please see specs tab for a compatibility list.

The panel features a proportionally-rated joystick that controls pan, tilt and zoom and switch buttons that adjust the focus and iris of each camera's lens. Six of the switch buttons are preset with memory positions for pan, tilt, zoom and focus and are applicable to all the connected cameras. Also, you can interconnect the panel with other RS-232 panels, both local and remote ones and thus control cameras from more than one location.

What's in the box:

  • Sony EVI-D70 Pan/Tilt/Zoom Security Camera
  • Vaddio Camera Cable Shoe
  • Item Note: Missing AC Adapter for Sony EVI-D70 Security Camera; Wireless Remote Control for Sony EVI-D70 Security Camera; Ceiling Mount Bracket for Sony EVI-D70 Security Camera
