Sony PDW-U1 XDCAM Disk Drive Unit - SKU#1802323
Sony PDW-U1: Picture 1 thumbnail
Sony PDW-U1: Picture 2 thumbnail
Sony PDW-U1: Picture 3 thumbnail
See all Sony items
CloseoutUsed Condition: Well Used

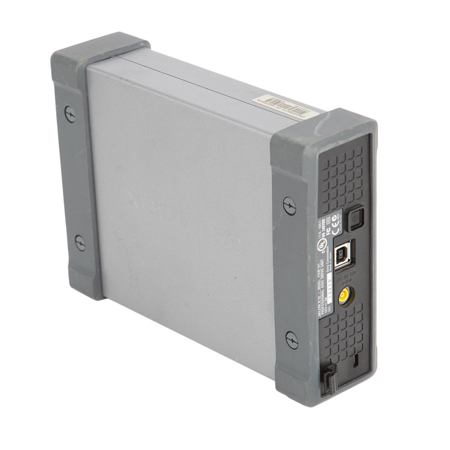

Used Sony PDW-U1 XDCAM Disk Drive Unit.

Item Note: Missing AC Adapter

SKU: US1802323 MFR: PDW-U1
Be the first to review this item
$101.00
Earn VIP Reward Points
See all Used options (2) from $101

What`s in the box:

  • Sony PDW-U1 XDCAM Drive Unit ** Item Note: Missing AC Adapter **

INCLUDES FREE WARRANTY

  • This used item comes with a free 180-day warranty. ?
Free Shipping

See Options

Add to List

Protect your gear with Adorama Protect.* Learn more

1 Year

$18.99

2 Year

$31.99

3 Year

$43.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Browse our FAQ

See Terms & Conditions

Sony PDW-U1 Specifications

  • Signal System

    XDCAM

  • Inputs/Outputs

    USB: High Speed Series B

  • Power Requirements

    12 VDC

  • Power Consumption

    10 W

  • Operating Temperature

    5-40 deg C (41-104 deg F)

  • Humidity

    20 to 90% (relative humidity)

  • Recording/Playback Format

    Video: MPEG HD422 (50 Mb/s), MPEG HD (35/25/18 Mb/s), MPEG IMX (50/40/30 Mb/s), DVCAM (25 Mb/s)
    Proxy Video: MPEG-4
    Audio: MPEG HD422: 8 ch/24 bits/48 kHz, MPEG HD: 4/2 ch/16bits/48kHz, MPEG IMX: 8 ch/16 bits/48 kHz, or 4 ch/24 bits/48 kHz, DVCAM: 4 ch/16 bits/48 kHz
    Proxy Audio: A-law (8/4/2 ch/8 bits/8 kHz)

  • Recording/Playback Time 1

    MPEG HD422: 50 Mb/s: Approx. 95 min., Approx. 43 min.
    MPEG HD: 35 Mb/s, 4-ch audio: More than 145 min., More than 65 min., 35 Mb/s, 2-ch audio: More than 150 min. (PFD50DLA), More than 68 min., 25 Mb/s, 4-ch audio: Approx. 190 min., Approx. 85 min., 25 Mb/s, 2-ch audio: Approx. 200 min., Approx. 90 min., 18 Mb/s, 4-ch audio (playback only): More than 248 min., More than 112 min., 18 Mb/s, 2-ch audio: More than 265 min., More than 122 min.

  • Recording/Playback Time 2

    MPEG IMX: 50 Mb/s: Approx. 100 min. (PFD50DLA), Approx. 45 min. (PFD23A), 40 Mb/s: Approx. 55min. (PFD23A), 30 Mb/s: Approx. 150 min. (PFD50DLA), Approx. 68 min. (PFD23A)
    DVCAM: 25 Mb/s: Approx. 185 min. (PFD50DLA), Approx. 85 min. (PFD23A)

  • Dimensions (W x H x D)

    2.4 x 6.5 x 9" (5.9 x 16.4 x 22.6 cm)

  • Weight

    3.1 lbs (1.4 kg)

About Sony PDW-U1 XDCAM Disk Drive Unit - SKU#1802323

The Sony PDW-U1 is a drive unit designed specifically for XDCAM cameras, acting as a conduit between the camera and your NLE of choice. The unit is capable of handling both standard and high definition professional disc media using Sony's patented blue-violet laser, as well as the PFD50DLA dual layer disc. The PDW-U1 is a effective and useful solution for lightning-fast transfers, providing faster workflow and overall greater efficiency.

Sony PDW-U1 XDCAM Disk Drive Unit - SKU#1802323 Features

  • Handles files in all formats of XDCAM HD and SD
  • Both single-layer disc (PFD-23A) and dual-layer disc (PFD-50DLA) support
  • Hi-speed USB (USB2.0) interface
  • Highly compact and lightweight design
  • Direct access to files on Professional Disc media from a USB-connected PC

Warranty Information

This used item has a FREE 180-day warranty. See details.

Used Guarantee

30-day money back!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Sony PDW-U1 XDCAM Drive Unit
  • Item Note: Missing AC Adapter
