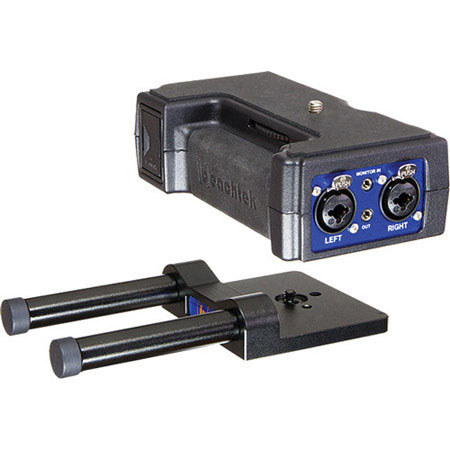

Used BeachTek DXA-SLR ULTRA 2-Channel Active XLR Adapter, 20Hz to 20kHz Frequency Response

The Beachtek DXA-SLR ULTRA 2-Channel Active XLR Adapter is very easy to set up and use. The Neutrik brand combo XLR / 1/4" inputs makes it easy to attach a variety of audio gear including wireless systems, mixers, sound boards and professional condenser microphones that require phantom power to operate.

The inputs are transformer balanced for isolation and enhanced circuit protection. Built-in VU meters makes it easy to verify the proper input levels at a glance, while the level controls allow you to adjust the output signal for optimum recording. Built-in fast acting limiters prevent distortion from overly hot inputs for worry free operation. The phone jack lets you monitor the audio from the adapter during recording, or camera during playback. A unique feature of the DXA-SLR ULTRA is the sleek detachable rod support system to easily attach a matte box, follow focus and other gear for incredible versatility. Extra rods can be simply threaded on to extend to any length needed. The adapter mounts neatly to the bottom of the camera and can also be mounted to any standard tripod.

It is designed to be extremely easy to use, from the ergonomic all metal ergonomic chassis with nice rubber grips, to the bright easy to read VU meter and drift free volume controls. Nothing could be easier to use or provide better performance.

Inputs
It has two Neutrik combo XLR / 1/4" connectors and loop back for playback monitoring.

Outputs
The output is unbalanced stereo mini-plug jack for connection to the camera.

Headphone Monitor
Built-in headphone amplifier with volume control and 3.5 mm phone jack.

Phantom Power
Switchable 12V/OFF/48V phantom power for both channels.

VU Meter
Easy to read level meters indicate e proper signal level for each channel.

Limters
Fast acting limiters prevent distortion from overly hot inputs.

Gain Switch
High / Low gain setting for each channel.

Level Controls
Adjusts signal level output on each channel.

MIC/LINE Switches
Allows connections of microphones or mixers for versatility.

Low Noise Preamplifiers
Exceptionally low noise circuitry for superb audio and wide-bandwidth for full rich sound.

Rod Support Base
It is Detachable and includes two threaded 3" rods.

Playback Monitor
It Provides an easy way to monitor audio on playback.

Power
Easily replaceable 9 volt battery and low battery indicator.

Case
Sturdy die-cast aluminum enclosure.
