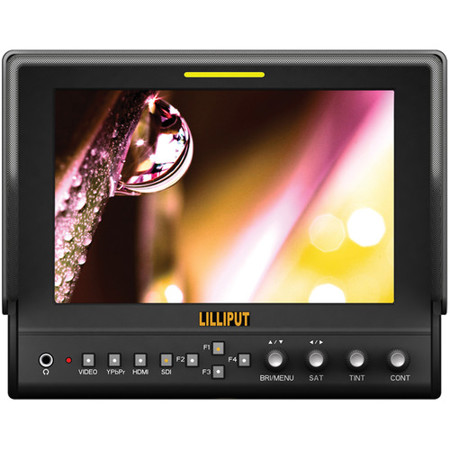

Used Lilliput 663/S2 7" Camera-Top Monitor with Waveform, 1280x800, BlackMagic Compatible, 3G-SDI Input & Output

SKU: US1812581

This item is no longer available.

Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Lilliput 663/S2 Specifications

  • LCD Size

    7.0" (17.8 cm) (IPS)

  • Display Resolution

    1280 x R.G.B. x 800 (Dot)

  • Active Area

    149.76 (H) x 93.6 (V) mm

  • Dot Pitch

    0.117 (H) x 0.117 (V) mm

  • Aspect Ratio

    16:10

  • Brightness

    400 cd/m2

  • Contrast Ratio

    800:1

  • Light Source

    LED

  • Surface Treatment

    Hard coating

  • Response Time

    TR: 15 ms (typical), 20 ms (maximum)
    TF: 20 ms (typical), 30 ms (maximum)

  • Viewing Angle

    Left/Right/Up/Down: 89 deg.
    178 deg. wide viewing angle

  • Video: Input Signal

    Analog RGB

  • Video: Interface

    HDMI, YPbPr, Video, Audio, SDI, XLR, DC Power, Earphone

  • Video: Input / Output Connectors

    SDI, HDMI, YPbPr, Composite, Audio L&R, TALLY
    Output: SDI, HDMI

  • Video: Format Support

    SDI
    SMPTE-425M-A: 1080p (60/59.95/50/30/29.97/25/24/23.976/24sf)
    SMPTE-274M: 1080p (30/29.97/25/24/24Sf/23.976), 1080i (60/59.94/50)
    SMPTE-296M: 720p (60/59.94/50/30/25)
    SMPTE-125M: 480i (60/59.94)
    ITU-R BT.656: 576i (50)

  • Control

    Basic: Video, YPbPr, HDMI & SDI bottoms. F1-F4 User-definable buttons, BRI/MENU knob, SAT knob, TINT knob, CONT knob
    Advance: Brightness, Contrast, Saturation, Tint, Sharpness, Volume, Center Marker, Aspect Marker, Screen Marker, Marker Color, Marker Mat, Thickness

  • Control (Cont.)

    Check Field, Color Bar, Camera, PIP, Image Flip, Zoom, Pixel-to-Pixel, Freeze Input, Underscan, H/V delay, Peaking, False Color, Exposure, Histogram, Level Meter and Wave/Vector, Waveform Trans, Waveform Size, Language, SDI, Input Format OSD, LOGO, Manufacturer Default, Back Light, IPS

  • Speaker

    Built-in 1 W

  • Language

    English/Chinese

  • Power Requirements

    7 to 24 VDC (XLR Connector)

  • Power Consumption

    =11 W

  • Temperature

    Operating: -4 to 140 deg. F / -20 to 60 deg. C
    Storage: -22 to 158 deg. F / -30 to 70 deg. C

  • Operating Humidity

    80% RH maximum

  • Dimensions (W x H x D)

    Monitor Without Sun Hood: 7.5 x 6 x 1.2" / 190.50 x 152.40 x 30.48mm
    Monitor With Sun Hood: 7.5 x 6 x 5.5" / 190.50 x 152.40 x 139.70mm
    Case: 12.2 x 9.7 x 3.8" / 309.88 x 246.38 x 96.52mm

  • Weight

    Monitor Without Sun Hood: 1.7lbs / 0.77kg
    Monitor With Sun Hood: 2.1lbs / 0.95kg
    Monitor with Suitcase: 4.8lbs / 2.18kg

9 Accessories for Lilliput 663/S2 7" Camera-Top Monitor with Waveform, 1280x800, BlackMagic Compatible, 3G-SDI Input & Output

  • All Accessories (9)
  • Batteries & Power Supply (9)

About Lilliput 663/S2 7" Camera-Top Monitor with Waveform, 1280x800, BlackMagic Compatible, 3G-SDI Input & Output

Why settle for anything less than professional-grade monitoring when the Lilliput 663/S2 7" Camera-Top Monitor is designed to elevate your filming experience This robust, metal-framed LED field monitor is not just durable; it's a compact and portable powerhouse, perfect for on-the-go videographers and filmmakers who demand high-quality equipment.

With a high-resolution 1280x800 IPS panel, the Lilliput 663/S2 ensures that every detail is crisply displayed, offering a more accurate representation of your footage. The 7-inch widescreen aspect ratio is the ideal size for camera-top mounting, fitting neatly into your camera bag without sacrificing screen real estate.

Versatility is at the heart of this monitor's design. It is fully compatible with BlackMagic cameras and other devices, thanks to its comprehensive range of inputs and outputs, including 3G-SDI, HDMI, YPbPr (via BNC), and Composite video. This wide compatibility ensures that the Lilliput 663/S2 can seamlessly integrate into any professional video production setup.

Advanced on-screen functions like Histogram, Waveform, Vector Scope, and Audio Level Meter make this monitor a vital tool for achieving perfect exposure and color balance. These features assist in real-time adjustments, ensuring that your footage is captured correctly from the start, reducing post-production time.

The Histogram provides RGB, Color, and Luminance histograms, allowing you to visually monitor and adjust the exposure of the whole image or individual RGB channels. The Waveform monitoring includes R, G, B, V/Luminance, Cb, and Cr waveforms, crucial for measuring various aspects of the video signal and aiding in color correction. The Vector Scope feature helps monitor color saturation and gamut range, while the Audio Level Meter ensures your audio is recorded at the right levels, preventing errors during monitoring.

For outdoor shoots, the Lilliput 663/S2's collapsible sun hood doubles as a screen protector, safeguarding the monitor's display from scratches during transit and reducing glare in bright conditions. The monitor's high contrast ratio of 800:1 delivers vivid, rich, and accurate colors, making it easier to judge your shots.

Customization is key, and with four programmable function buttons (F1-F4), you can tailor the monitor's operation to your specific needs, enhancing your workflow efficiency. The wide viewing angles of 178 degrees, both vertically and horizontally, mean that you can view the monitor from almost any position without color shifts or contrast loss.

Finally, the HDMI output feature allows you to duplicate the video content onto a second monitor without the need for annoying splitters, ensuring that picture quality remains pristine on both screens.

Choose the Lilliput 663/S2 7" Camera-Top Monitor with Waveform for a professional, refined, and reliable monitoring solution that will keep pace with your creative vision.

Lilliput 663/S2 7" Camera-Top Monitor with Waveform, 1280x800, BlackMagic Compatible, 3G-SDI Input & Output Features

  • High-resolution 7" camera-top monitor with 1280x800 LED-backlit IPS panel
  • Versatile inputs and outputs including 3G-SDI, HDMI, YPbPr (via BNC), and Composite video
  • Advanced on-screen functions such as Histogram, Waveform, Vector Scope, and Audio Level Meter
  • Collapsible sun hood that doubles as a screen protector for outdoor shoots
  • Four programmable function buttons (F1-F4) for tailored operation
  • Wide viewing angles of 178 degrees both vertically and horizontally for flexible positioning

What's in the box:

  • Lilliput 663/S2 7 " Camera-Top Monitor with Waveform
  • Sun Shade
  • Canon LP-E6-Type Battery Plate
  • Sony F-970-Type Battery Plate
  • HDMI A/C Cable
  • Power & TALLY Cable
  • Shoe Mount
  • 12 VDC Adapter
  • Suitcase
  • Adapter Panel
  • Gimbal Bracket
  • Item Note: Case has a crack
