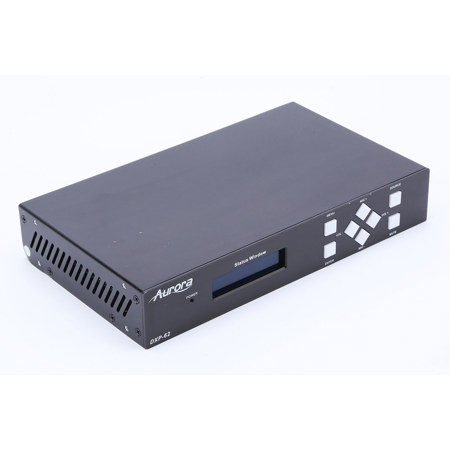

Used Aurora Multimedia DXP-62 Presentation Switcher/Scaler with Integrated HDBaseT Output

Item Note: Missing 2x Mounting Ears (separate from the DXP-62); 1x RS232 Cable; 2x VGA Converting Cables; 7x Captive Screw Connectors; 4x Screws; 6x Plastic Cushions

SKU: US1812587 MFR: DXP-62
$275.00
New: $1,598.00
Used Savings: $1323 (83%)
OR
Earn VIP Reward Points

What`s in the box:

  • Aurora Multimedia DXP-62 Presentation Switcher/Scaler with Integrated HDBaseT Output
  • Power Cable (DC 12V) ** Item Note: Missing 2x Mounting Ears (separate from the DXP-62); 1x RS232 Cable; 2x VGA Converting Cables; 7x Captive Screw Connectors; 4x Screws; 6x Plastic Cushions **

INCLUDES FREE WARRANTY

  • This used item comes with a free 180-day warranty. ?
Free Shipping

See Options

Protect your gear with Adorama Protect.* Learn more

1 Year

$40.99

2 Year

$54.99

3 Year

$85.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Aurora Multimedia DXP-62 Specifications

  • Max HDBT Distance

    230' / 70.10m

  • Max Resolution

    1920x1200 at 60Hz

  • Color Depth

    36bit

  • Bandwidth

    HDMI: 1.65Gbps per color, C-Video:150MHz, YPbPr: 170MHz, VGA: 375MHz

  • RS-232

    Max 115kbps

  • HDMI Inputs

    4

  • VGA/YPbPr/Video Inputs

    2

  • HDMI Outputs

    1

  • HDBaseT Outputs

    1 PoH (Video, RS-232, IR)

  • Audio Inputs

    4 Stereo 3 pin 3.81mm Euro / 1 Mic 3 pin 3.81mm Euro

  • Audio Outputs

    1 Stereo 3 pin 3.81mm Euro / 0db Gain.

  • RS-232 Ports

    1

  • IR Input Ports

    1

  • IR Output Ports

    1

  • IR Frequency Range

    20KHz - 60KHz

  • HDBaseT Connector

    RJ-45 WE/SS 8P8C

  • RS-232 Connector

    Euro Style 3.81mm

  • IR Connector

    3.5mm TRS

  • HDMI Connector

    Type A 19 pin

  • Power Connector

    IEC Male

  • Audio Bandwidth

    20Hz - 20KHz

  • Housing

    Black Aluminum Enclosure

  • Mounting

    1 RU Rack Mounting

  • Power supply

    12v 16Watt

  • Operation temperature

    0 to 40 deg. C / 32 to 104 deg. F

  • Dimensions (L x D x H)

    8.66 x 5.83 x 1.75" / 22.00 x 14.81 x 4.45cm

About Aurora Multimedia DXP-62 Presentation Switcher/Scaler - SKU#1812587

Become the master of your presentations with the DXP-62 Presentation Switcher/Scaler, a versatile and high-performance device designed for seamless multi-signal processing. This advanced switcher/scaler is capable of handling a variety of inputs including HDMI, VGA, Component (YPbPr), and Composite, scaling all to a high-definition resolution output of up to 1900x1200.

The DXP-62 is equipped to accept up to four HDMI inputs and two VGA/YPbPr/Composite inputs, all of which can be scaled to the on-board HDMI and HDBaseT simultaneous outputs. This ensures a high-quality, consistent display across all your devices.

One of the standout features of the DXP-62 is its integrated HDBaseT output. This innovative feature allows for the transmission of uncompressed high-definition video, audio, power, and control signals over a single cable. With the ability to pass PoH power to the included HDBaseT Receiver, as well as RS232 and IR control for the display, this presentation switcher/scaler simplifies your setup and reduces cable clutter.

But the DXP-62 doesn't stop at video. It also offers superior audio capabilities with four external audio inputs, an additional MIC input with independent volume control, and a de-embedding line level stereo output. This ensures your audio matches the quality of your visuals, providing a complete multimedia experience.

With its auto sensing/switching video inputs, the DXP-62 is an ideal solution for a variety of settings, including classrooms, conference rooms, and AV cart applications. The device also comes with 1RU rack-mount hardware included, making installation a breeze.

In summary, the DXP-62 Presentation Switcher/Scaler with Integrated HDBaseT Output is a comprehensive solution for all your presentation needs, delivering high-quality audio and video performance in a user-friendly package.

Aurora Multimedia DXP-62 Presentation Switcher/Scaler - SKU#1812587 Features

  • High-performance presentation switcher/scaler with multi-signal processing capabilities
  • Handles HDMI, VGA, Component (YPbPr), and Composite inputs, scaling all to 1900x1200 HD resolution
  • Integrated HDBaseT output for transmission of uncompressed HD video, audio, power, and control signals
  • Features four HDMI inputs, two VGA/YPbPr/Composite inputs, and simultaneous on-board HDMI and HDBaseT outputs
  • Superior audio capabilities with four external inputs, additional MIC input, and de-embedding line level stereo output
  • Ideal for classrooms, conference rooms, and AV cart applications with included 1RU rack-mount hardware

Warranty Information

This used item has a FREE 180-day warranty. See details.

What's in the box:

  • Aurora Multimedia DXP-62 Presentation Switcher/Scaler with Integrated HDBaseT Output
  • Power Cable (DC 12V)
  • Item Note: Missing 2x Mounting Ears (separate from the DXP-62); 1x RS232 Cable; 2x VGA Converting Cables; 7x Captive Screw Connectors; 4x Screws; 6x Plastic Cushions
