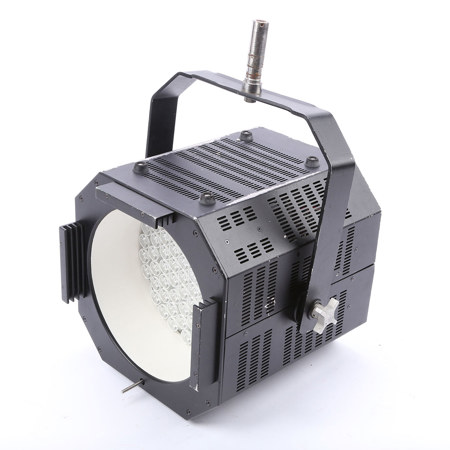

Used AAdynTech Original Series Punch Plus Daylight LED Fixture with Wireless DMX and RDM Receiver, 7454 FC at 10'

Item Note: Half of the LEDs do not work. May Have Additional Issues. Cosmetic condition is Heavy Use.

SKU: US1814799 MFR: PCH-RDM-004
Earn VIP Reward Points

What`s in the box:

  • AAdynTech Original Series Punch Plus Daylight LED Fixture with Wireless DMX and RDM Receiver
  • AC Power Input Cable with Plug
  • 5 Degree Lens
  • 15 Degree Lens
  • 30 Degree Lens
  • 55 Degree
  • Yoke with Junior Pin
  • Barndoors ** Item Note: Half of the LEDs do not work. May Have Additional Issues. Cosmetic condition is Heavy Use. **
Overview
Compare
Accessories
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

AAdynTech Punch Plus Specifications

  • Control

    UIM, Wired & Wireless DMX/RDM

  • Source

    LED, 5600K CCT

  • Cooling

    Passive/Active

  • Mounting

    Junior Pin/28mm Spigot

  • Certifications

    ETL, UL, CSA, CE and RoHS Compliant

  • Input Voltage

    100-277 VAC

  • Input Frequency

    50/60 Hz

  • Input Current

    4.87 Amp at 120V 584.4 W at full

  • Connection

    US NEMA 5-15

  • No Diffuser

    At 10': 80237 Lux; 7454 FC
    At 15': 39104 Lux; 3633 FC
    At 20': 21950 Lux; 2040 FC

  • 5 deg. Diffuser

    At 10': 62933 Lux; 5846 FC
    At 15': 27893 Lux; 2591 FC
    At 20': 16276 Lux; 1512 FC

  • 15 deg. Diffuser

    At 10': 35500 Lux; 3300 FC
    At 15': 16432 Lux; 1527 FC
    At 20': 9145 Lux; 850 FC

  • 30 deg. Diffuser

    At 10': 17368 Lux; 1613 FC
    At 15': 7749 Lux; 720 FC
    At 20': 4326 Lux; 401 FC

  • 55 deg. Diffuser

    At 10': 6069 Lux; 564 FC
    At 15': 2867 Lux; 266 FC
    At 20': 1648 Lux; 153 FC

  • Beam Angle

    No Diffuser: 13.3 deg.
    5 deg. Diffuser: 16.2 deg.
    15 deg. Diffuser: 18.3 deg.
    30 deg. Diffuser: 28.1 deg.
    55 deg. Diffuser: 45.3 deg.

  • Field Angle

    No Diffuser: 18.9 deg.
    5 deg. Diffuser: 26.3 deg.
    15 deg. Diffuser: 33.4 deg.
    30 deg. Diffuser: 50.1 deg.
    55 deg. Diffuser: 76.7 deg.

  • Operating Temperature

    -20 to 50 deg. C (-4 to 122 deg. F)

  • Dimensions (L x W x H)

    17 x 18.5 x 20.3" (43.18 x 46.99 x 51.56cm)

  • Weight

    48.50 lbs (22kg)

3 Accessories for AAdynTech Original Series Punch Plus Daylight LED Fixture with Wireless DMX and RDM Receiver, 7454 FC at 10'

  • All Accessories (3)
  • Barndoors (1)
  • Filters (2)

About AAdynTech Original Series Punch Plus Daylight LED Fixture - SKU#1814799

The AAdynTech Punch Plus is the most powerful daylight-balanced white light professional LED fixture available today. The fixture delivers an incredible output of 7,454 fc at 10 feet, compares to a 4,000 watt HMI, while consuming less than 5 amps of power. The Punch Plus is self-contained with a universal power supply and the need for heavy and expensive head cables, ballasts or spare lamps is eliminated, dramatically reducing transport weight.

Crew and talent safety is always a concern and the Punch Plus generates so little heat and can be held with bare hands and harmful UV or IR emissions are virtually eliminated. Instant 'ON' ensures no warm-up wait time on set. The Punch Plus Daylight DMX can either be wired or wireless with a built in Wireless DMX/RDM receiver. Flicker free up to 12,000 fps.

AAdynTech Original Series Punch Plus Daylight LED Fixture - SKU#1814799 Features

  • 7,454 footcandles @ 10 feet
  • Consumes 4.78 Amps @ 120 Vac
  • Universal built in power supply
  • No ballast or heavy cables
  • No UV or IR radiation
  • No multiple shadows with lenses
  • 5, 15, 30 & 55 degree lenses
  • Lightning & Strobe Effects
  • Full DMX control w/loop through
  • Brightness control; no color shift
  • Flicker free up to 12,000 fps @ full power

What's in the box:

  • AAdynTech Original Series Punch Plus Daylight LED Fixture with Wireless DMX and RDM Receiver
  • AC Power Input Cable with Plug
  • 5 Degree Lens
  • 15 Degree Lens
  • 30 Degree Lens
  • 55 Degree
  • Yoke with Junior Pin
  • Barndoors
  • Item Note: Half of the LEDs do not work. May Have Additional Issues. Cosmetic condition is Heavy Use.
