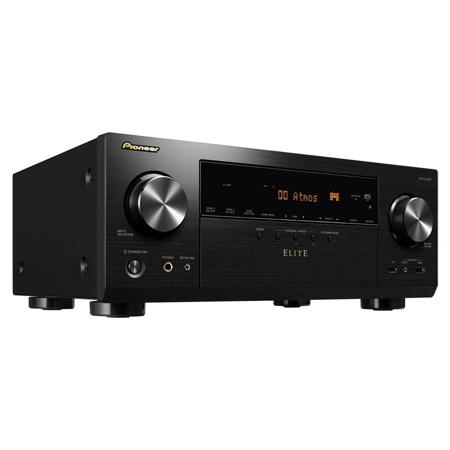

Used Pioneer Home Audio Elite VSX-LX305 100W 9.2-Channel Network A/V Receiver

Item Note: Missing RC-974R Remote Controller with 2x AAA Batteries; Power Cord; Connection issues. Blue screen. May have additional uissues. Cosmetic Condition is Average. SOLD AS-IS; FOR PARTS ONLY; FINAL SALE **

SKU: US1816748 MFR: VSX-LX305
$117.00
New: $1,199.00
Used Savings: $1082 (90%)
Earn VIP Reward Points

What`s in the box:

  • Pioneer Home Audio Elite VSX-LX305 100W 9.2-Channel Network A/V Receiver
  • Speaker Setup Microphone
  • DAB/FM Antenna
  • Indoor FM Antenna
  • AM Loop Antenna
  • User Manual
  • Original Box ** Item Note: Missing RC-974R Remote Controller with 2x AAA Batteries; Power Cord; Connection issues. Blue screen. May have additional uissues. Cosmetic Condition is Average. SOLD AS-IS; FOR PARTS ONLY; FINAL SALE ** **
Calculate Shipping

See Options

Protect your gear with Adorama Protect.* Learn more

2 Year

$44.99

3 Year

$79.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

2024-09-15T13:35:32

Rated 5 out of 5

You should own this, if you want Dolby Atmos.

Very powerful 9.2 channel Dolby Vision/Atmos receiver.

Michael G.

2024-03-15T08:25:25

Rated 5 out of 5

The sound is gorgeous

Runs absolutely quiet. I added a small 120mm fan on top with a speed controller (PWM fans) and it took the lukewarm metal top to a cool top. Internal fan never kicked in anyways but I figured what the heck, take it an extra step. The relay sometimes can be heard clicking once when it switches formats but not too often. Dirac was easy to setup and my Jamo speakers sound way better with it and not veiled. The dialogue and subwoofer buttons on the remote are exceptionally convenient compared to Onkyo or even the barebones Denon remotes because you don't have to use an onscreen display to change them. It's super quick. The dialogue setting 0 to 5, spreads center channel to left and right, which is great, but it seems to reduce the bass for some reason. Perhaps a symptom of center spread essentially being a speaker virtualization? Anyways, I just turn up the subwoofer via the remote to counter. Also, the remote has amazing IR range. You can literally be pointing it completely away from the receiver and button presses still register . Lastly, I am using a 5.1 setup and it has more than enough power for my speakers, but if you are thinking about using many speakers, I would recommend the VSX-LX505 instead that has gone on sale here for $630 new.

Richard I.

2024-02-13T16:49:23

Rated 4 out of 5

Pioneer vsc-ls305

Purchased from Adorama. Arrived less than 1wk as stated and finally installed the following weekend. No problem with setting up. Lots of features vs my old Onkyo unit. Haven't tried the Dirac yet, just the standard speaker configuration with the included microphone.

GHOZALI S.

2024-01-16T07:55:51

Rated 5 out of 5

This receiver is so awesome I bought it when I wasn't even shopping for one!

I purchased this Pioneer VSX-LX305 to replace a 10-yr-old Pioneer Receiver. This is for our Great Room with an open floor concept. I have a 7.1 speaker setup with 6 in-wall Infinity speakers, Infinity 351 center channel, and sub. I also have a single in-ceiling stereo speaker in the garage for Zone 2. This receiver powers all of it like a champ. The old receiver was working fine but a little dated. For the price offered by Adorama right at Christmas it pushed me over the edge to purchase this even though I wasn't in the market. I like the latest technologies including Dolby Atmos, Dirac calibration and 8K ready for a bit of future-proofing. The app works very well to stream audio to the garage while I am working out there. I'm glad I purchased and am enjoying the features of this receiver. I also have the Pioneer VSX-LX505 in my theater room with 7.1.4 system, and the LX305 is very similar just lacking a few features but perfect for my Great Room.

MARTIN K.

2023-12-14T08:36:40

Rated 5 out of 5

Solid 7.2.2 AVR without breaking the budget

upgrading from a Denon AVR-X3500h to the Pioneer Elite VSX-LX305 has been a good experience. Have not had a Pioneer receiver since 2000 but this was a good choice. The LX305 can handle 4K/120 Hz passthrough, the device input change works much better than it did on the Denon even if there is a slight delay sometimes, and the ability to use extra Atmos or back surround speakers is a nice plus with the LX305 being a 7.2.2 or 5.2.4 receiver. I watch mostly movies and streaming shows and the sound quality is as good as any Onkyo and Denon receivers I have had in the past. The auto-calibrate setup is easy and standard practice with all the AVRs I have owned over the last 2 decades. However, I have not been able to get Dirac setup to work properly yet. You have to use your cellphone to do it and the app gets an error during the setup. Overall, a worthy investment that I can see lasting for at least 6+ years with timely firmware updates.

Shailesh P.

2023-12-12T03:13:05

Rated 5 out of 5

works great

Had it about a month. Not an expert in this area, but so far everything works well. HDMI CEC is flawless and switches quickly which was one of my big concerns. Doesn't run hot, no fan noise. No delays in audio start after pausing or starting new content. Things I wish were different: Death to blue LED's. The product has a wonderful amber color for the screen. Just use the same color for the LED. More customizability, particularly when it comes to volume control. Let me choose what increment volume up or down does. 0.5 db increments are very slow and annoying especially when changing between content that has 20-30+ differences in base level.

Noah S.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Pioneer Home Audio VSX-LX305 Specifications

Amplification

Amplification

Jump to...
  • Channels

    9

  • Amplification Type

    Direct Energy

  • 225 W/ch

    Yes (6 ohms, 1 kHz, THD 10 %, 1ch Driven)

  • 100 W/ch

    Yes (8 ohms, 20 Hz-20 kHz, THD 0.08 %, 2ch Driven FTC)

Audio Features

Jump to...
  • IMAX Enhanced

    Yes

  • Dolby Atmos

    Yes (Dolby Surround Upmixer supports DTS Formats)

  • Reflex Optimizer

    Yes

  • Dolby Atmos Height Virtualizer

    Yes

  • Dolby TrueHD, Dolby Digital Plus

    Yes

  • DTS-HD Master Audio

    Yes (DTS-HD High Resolution Audio, DTS 96/24, DTS-ES, DTS Express)

  • DSD Disc (SACD) Playback

    via HDMI (2.8 MHz/2 ch, 5.1 ch)

  • Digital Quad-Core 32-bit

    Yes (DSP (Cirrus Logic) + Aureus floating-point DSP (TI))

  • 192 kHz/24-bit D/A Conversion

    Yes (for Hi-Res Audio)

  • eARC on HDMI Out (Main)

    Yes

  • Advanced MCACC Auto Room Tuning

    Auto Phase Control Plus
    Subwoofer EQ
    Multi-point Standing Wave Control

  • Dirac Live Room Correction

    Yes

  • Advanced Sound Retriever (2ch)

    Yes

  • Advanced Surround Modes

    Classical, Unplugged, Entertainment Show, Drama, Advanced Game, Action, Rock/Pop, Sports, Extended Stereo, Mono Music, Front Stage Surround Advance

Video Features

Jump to...
  • Support HDMI 2.1 x1 w/8K

    VRR (Variable Refresh Rate), ALLM (Auto Low Latency Mode), QFT (Quick Frame transport), DSC (Display Stream Compression), and QMS (Quick Media Switching) pass-through

  • Supports HDR10+

    HDR10, and HLG; 8K/60p (4:2:0/10-bit), 8K/30p (4:4:4/10-bit, 4:2:2/12-bit), 4K/120p (4:4:4/10-bit, 4:2:2/12-bit), 4K60p (4:4:4/12-bit) and BT.2020 color; DeepColor (36-bit), "x.v.Color", LipSync, and HDCP 2.3

  • Dolby Vision Compatible

    Yes

  • Ultra HD Upscaling

    Yes (4K to 8K, 1080p to 8K/4K)

Home Network Features

Jump to...
  • Works with Alexa

    Yes (supporting multi-room music)

  • Works with Hey Google and Chromecast

    Yes (built-in)

  • DTS Play-Fi w/Pioneer Music Control App

    Yes

  • Apple AirPlay 2 with Siri Voice Control

    Yes

  • Works with SONOS

    Yes (supporting multiple Sonos Connect control and Volume Pass Through mode)

  • Amazon Music HD 3

    Yes (Pandora, Spotify, TIDAL, and Deezer Hi-Fi Music-Streaming Services Ready)

  • Internet Radio with TuneIn

    Yes

  • Hi-Res Audio File Playback

    Yes (via USB/Network)

  • Up to 192 kHz/24-bit

    Yes (ALAC 5, AIFF, FLAC, WAV (RIFF) and 11.2 MHz DSD)

Convenience Features

Jump to...
  • Personal Preset

    Yes

  • Dialog Enhancement

    Yes

  • Dual Band (5GHz/2.4GHz) Wi-Fi Built-in

    Yes

  • Bluetooth Wireless Technology

    Transmitter/Receiver (Version: 4.2, Profile: A2DP 1.2/AVRCP 1.3, Codec: SBC/aptX/aptX HD (TX), SBC/AAC(RX)) Built-in

  • Pioneer Remote App

    Ready for Multi-room Entertainment Control and Network Streaming

  • User-Friendly GUI w/System Setup Menu

    Yes

  • On-Screen Information

    Yes (for Audio, Video and Network)

  • Web Setup

    Yes

  • Auto Power Off in HDMI Standby Through

    Yes

  • AM/FM Tuner 40 Presets

    Yes

  • Sleep Timer

    Yes

  • User-Friendly Simple Remote Control

    Yes

Front Terminals

Jump to...
  • HDMI 1 In

    Yes

  • USB 1 In for USB Drive

    Yes

  • MCACC/Dirac Live Web Setup MIC

    Yes

  • Audio 1 In

    Yes (2ch)

  • Phones 1 Out

    Yes

Rear Terminals

Jump to...
  • HDMI 6 In

    4 Assignable

  • HDMI 2 Out

    1 for MAIN, 1 for SUB/ZONE 2

  • Ethernet 1 In

    Yes

  • USB 1 In for USB Drive

    Yes

  • Audio 4 In

    Assignable

  • Phono (MM) 1 In

    Yes

  • Digital Coaxial 1 In

    Yes

  • Digital Optical 1 In

    Yes

  • Subwoofer 2 Pre Out

    Yes

  • ZONE 2 Pre/Line Out/ZONE B Line Out

    Yes

  • Speaker 9 ch Out

    Front, Center, Surround, Height 1/Bi-Amp/Zone 2, Surround Back/Height 2/Zone 3

  • IR 1 In/1 Out

    Yes

  • 12 V Trigger 2 Out

    Yes

  • RS-232C

    Yes

  • FM/AM Antenna

    Yes

Physical

Jump to...
  • Power Requirements

    AC 120 V, 60 Hz

  • Power Consumption/Standby

    750 W/0.1 W

  • Dimensions

    17.12 x 6.81 x 14.58" (435 x 173 x 370.5mm)

  • Weight

    22.9 lbs (10.4kg)

About Pioneer Home Audio Elite VSX-LX305 100W 9.2-Channel Network A/V Receiver 1816748

FEATURED REVIEWS

Solid 7.2.2 AVR without breaking the budget

By Shailesh P.

upgrading from a Denon AVR-X3500h to the Pioneer Elite VSX-LX305 has been a good experience. Have not had a Pioneer receiver since 2000 but this was a good choice. The LX305 can handle 4K/120 Hz passthrough, the device input change works much better than it did on the Denon even if there is a slight delay sometimes, and the ability to use extra Atmos or back surround speakers is a nice plus with the LX305 being a 7.2.2 or 5.2.4 receiver. I watch mostly movies and streaming shows and the sound...

View full Review

You should own this, if you want Dolby Atmos.

By Michael G.

Very powerful 9.2 channel Dolby Vision/Atmos receiver.

Become immersed in a world of high-quality audio and video with the Elite VSX-LX305 100W 9.2-Channel Network A/V Receiver from Pioneer Home Audio. This advanced, high-tech receiver is designed to be the heart of your home entertainment system, bringing multi-dimensional excitement to your movies, music, and gaming experiences.

The VSX-LX305 features Dirac Live Room Correction, a state-of-the-art technology that optimizes your loudspeakers' potential by automatically calibrating sound to your room. This ensures a more accurate measurement of your surround sound positioning and a more precise, balanced sound overall.

Experience the thrill of IMAX Enhanced Mode, meticulously optimized to play digitally remastered content just as the filmmaker intended. This feature delivers powerful 4K HDR images and sound, bringing the best viewing and listening experience right into your living room.

The VSX-LX305 is equipped with HDMI 2.1, supporting a range of video resolutions including 8K60 and 4K120, and Dynamic HDR. This, combined with a 60Hz refresh rate, ensures smooth and sharp playback, even for high-speed action. The receiver also features discrete 2-zone switching, allowing for setup in two rooms for versatile entertainment options.

With 100 Watts per channel, the VSX-LX305 has enough power to support a 9.2 channel setup, enabling a full home theater experience. The receiver also supports the latest high-bitrate audio formats including Dolby Atmos, DTS-HD Master Audio, DTS:X, and Dolby TrueHD, providing lifelike, object-oriented sound in smooth, curving movements or realistic overhead height effects.

The VSX-LX305 also offers bi-directional Bluetooth connectivity, allowing you to stream from your device to the AVR or transmit audio playing through the AVR to compatible wireless headphones. This feature is perfect for streaming from your phone or for gamers who want to immerse themselves in their gaming experience.

Music streaming is made simple with the VSX-LX305, with built-in access to several streaming services including Spotify, Amazon Music, Pandora, TIDAL, Deezer, and TuneIn. The receiver is also compatible with Works with Sonos, AirPlay 2, and DTS Play-Fi, and supports voice commands to control music services in multiple rooms with Alexa or Chromecast built-in.

Finally, the VSX-LX305 allows for multi-room entertainment, with the ability to wirelessly stream audio from any compatible mobile device to your AV Receiver and DTS Play-Fi compatible audio systems, creating a multi-room system in your home.

In summary, the Elite VSX-LX305 100W 9.2-Channel Network A/V Receiver is a sleek, stylish, and sophisticated addition to any home entertainment system, offering advanced features and high-quality audio and video playback.

Pioneer Home Audio Elite VSX-LX305 100W 9.2-Channel Network A/V Receiver 1816748 Features

  • Dirac Live Room Correction
  • HDMI 2.1
  • Ultimate 4K Gaming Experience
  • Imax Enhanced
  • Discrete HDMI Zone 2 Switching
  • 100 Watts per channel (8 ohms, 20 Hz-20 kHz, THD 0.08 %, 2-channel driven )
  • Subwoofer 2 Pre Out
  • Bi-directional Bluetooth with aptX HD
  • Built-in music streaming including Spotify and Tidal
  • Works with Sonos Certified
  • Immersive sound from your TV apps
  • Advanced MCACC
  • Roon Tested
  • DTS Play-Fi

What's in the box:

  • Pioneer Home Audio Elite VSX-LX305 100W 9.2-Channel Network A/V Receiver
  • Speaker Setup Microphone
  • DAB/FM Antenna
  • Indoor FM Antenna
  • AM Loop Antenna
  • User Manual
  • Original Box
  • Item Note: Missing RC-974R Remote Controller with 2x AAA Batteries; Power Cord; Connection issues. Blue screen. May have additional uissues. Cosmetic Condition is Average. SOLD AS-IS; FOR PARTS ONLY; FINAL SALE **
