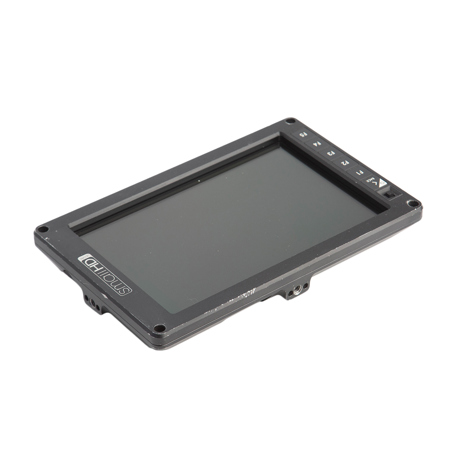

Used SmallHD 7.7-inch OLED Monitor with Wide Color Gamut

SKU: US1818579

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

SmallHD MON-702-OLED Specifications

  • Display

    Panel Type: OLED
    Size Diagonal: 7.7"
    Resolution: 1280 x 800
    Pixel Density (PPI): 191
    Aspect Ratio: 16:10 (16:9 Active)
    Active Area: 7.7
    Brightness: 300 nits (Native)
    Color Gamut: Wide Color Gamut
    Color Depth: 24 bit (8bpc)
    Viewing Angle: Full 160 Degrees+

    Adjustable Backlight: Yes
    Temperature Adaptive Color: Yes

  • Input Signal Types/Formats - 3G-SDI

    1080p50, 1080p59.94, 1080p60, 1080i100, 1080i119.88, 1080i120

  • Input Signal Types/Formats - HD-SDI

    RGB/YCC 4:2:2 and 4:4:4, 1080p60, 1080i60,1080i59.94,1080i50, 1080p30, 1080p25, 1080p24, 1080p23.98, 1080pSF23.98, 1080pSF24, 1080pSF25 , 1080pSF29.97, 720p60, 720p59.94, 720p50

  • Input Signal Types/Formats - SD-SDI

    YCC 4:2:2 @ 10-bits: 480i29.97, 576i25

  • Input Signal Types/Formats - HDMI

    Supports 8/10/12 bit color, 1080p60, 1080p59.94, 1080p50, 1080i60, 1080i59.94, 1080i50, 1080p30, 1080p25, 1080p24, 1080p23.98, 1080pSF23.98, 1080pSF24, 1080pSF25, 1080pSF30, 720p60, 720p59.94 , 720p50

  • Input Signal Types/Formats - Audio

    HDMI and SDI

  • Output Signal Types/Formats - 3G-SDI

    YCC 4:2:2 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100 all at 8 bits

  • Output Signal Types/Formats - HD-SDI

    RGB/YCC 4:2:2 and 4:4:4, 1080p60, 1080i60,1080i59.94,1080i50, 1080p30, 1080p25, 1080p24, 1080p23.98, 1080pSF23.98, 1080pSF24, 1080pSF25 , 1080pSF29.97, 720p60, 720p59.94, 720p50

  • Output Signal Types/Formats - SD-SDI

    YCC 4:2:2 @ 10-bits: 480i29.97, 576i25

  • Output Signal Types/Formats - HDMI

    Supports 8/10/12 bit color, 1080p60, 1080p59.94, 1080p50, 1080i60, 1080i59.94, 1080i50, 1080p30, 1080p25, 1080p24, 1080p23.98, 1080pSF23.98, 1080pSF24, 1080pSF25, 1080pSF30, 720p60, 720p59.94 , 720p50

  • Connector Type

    SDI: 1 SDI (in), 1 SDI (out)
    HDMI: 1 HDMI (in), 1 HDMI (out)
    Audio: 1/8in Mini Stereo Headphone
    Power In: LP-E6 style / Sony L style

  • Controls

    Primary Control Interface: Joystick + "Back" button
    Record/Capture: Capture button
    User Defined Functions: Uses "Pages" in conjunction with the Joystick control to provide any number of user defined monitoring options.

  • Data I/O

    Storage: SD Card (full-size)

  • Power

    Connector Type: LP-E6/Sony L style
    Battery Plate Included: Canon LP-E6 / Sony NPF - Each Slot can accommodate ONE of either type battery
    > Overload Protection: Yes
    Smart Battery Compliant: Yes:

  • Software

    Pixel Zoom (type): 2x & 4x with smooth pan via joystick
    Frame Guides: Yes
    DSLR Scale: Canon, Nikon
    Custom Scale: Yes (Underscan Only)
    Anamorphic De-Squeeze: Yes:
    Image Rotate(Manual/Automatic): Yes
    Image Flip (Manual/Automatic): Yes
    Cross Conversion: Yes
    Focus Assist (Colors): Yes
    Peaking: Yes e
    False Color: Yes

  • Software Cont.

    Zebra: Yes e
    Waveform: Yes
    Vectorscope: Yes
    PIP: No
    RGB Parade: Yes
    Histogram: Yes
    Horizon Indicator: No
    Image Capture: Yes
    Custom LUTS: Yes
    LUT Creation: No
    LUT Downstream: No
    LUT Import: Yes
    Image Overlay: Yes
    Blue Only: No
    Firmware User Upgradable.
    Audio Meters: Yes

  • Mount Points

    (4) 1/4-20 thread points (bottom, back, and sides)

  • Screen Protection

    Includes: Impact resistant Gorilla Glass screen protection

  • Compliance

    CE

  • Environmental

    Operating Temperature 30 - 95F (-1 - 35C)
    Storage Temperature 0 - 120F (32 - 48C)

  • Dimensions (HxWxD/L)

    5.2 x 1.1 x 8.25"

  • Weight

    26oz (737.09g)

About SmallHD 7.7-inch OLED Monitor with Wide Color Gamut - SKU#1818579

smallhd 702 oled

The 702 OLED On-Camera Monitor

Whether you’re filming a movie, commercial, promotional content, or a youtube video, the 702 OLED On-Camera Monitor from SmallHD can provide you with accurate, stunning OLED color and a range of tools to help you bring your content to the big (or small) screen. Featuring HD waveform and scopes, 3D LUT support and a rugged milled aluminum chassis, the 702-OLED is equipped with both the brains and the brawn to handle any filming scenario with ease and reliability.

See Every Color

The 702 OLED monitor arrives factory precalibrated from SmallHD. Easily install your own 3D LUT calibration with advanced color management solutions like Light Illusion's, LightSpace CMS, or SpectraCal's CalMAN. Load any 3D LUT via SD card using SmallHD’s ColorFlow 3D LUT engine.

oled color LUT 3D

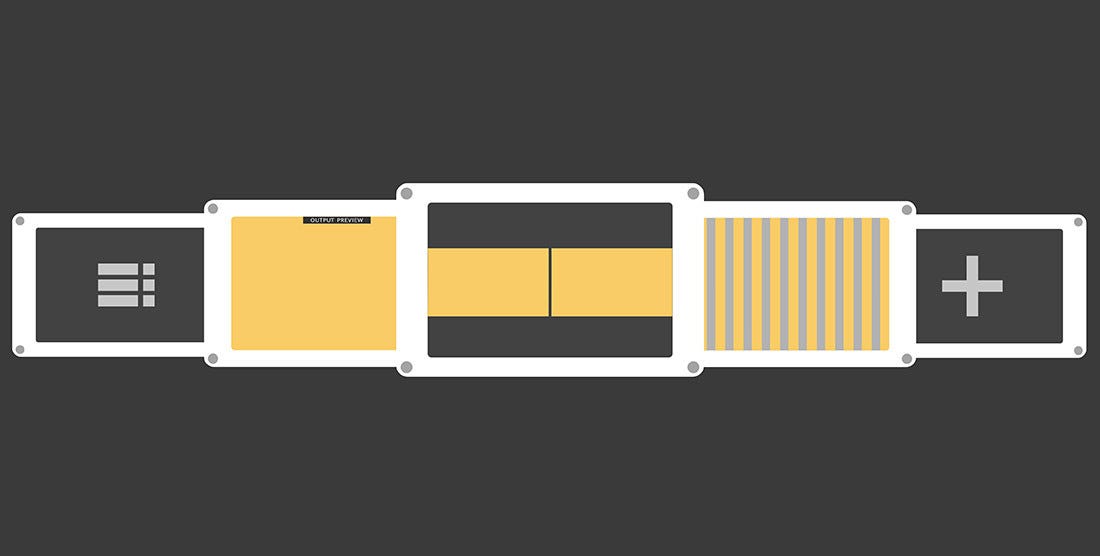

Menus That Make Sense

All SmallHD on-camera monitors are equipped with the powerful and easy-to-use PageBuilder operating system.

Menu pagebuilder

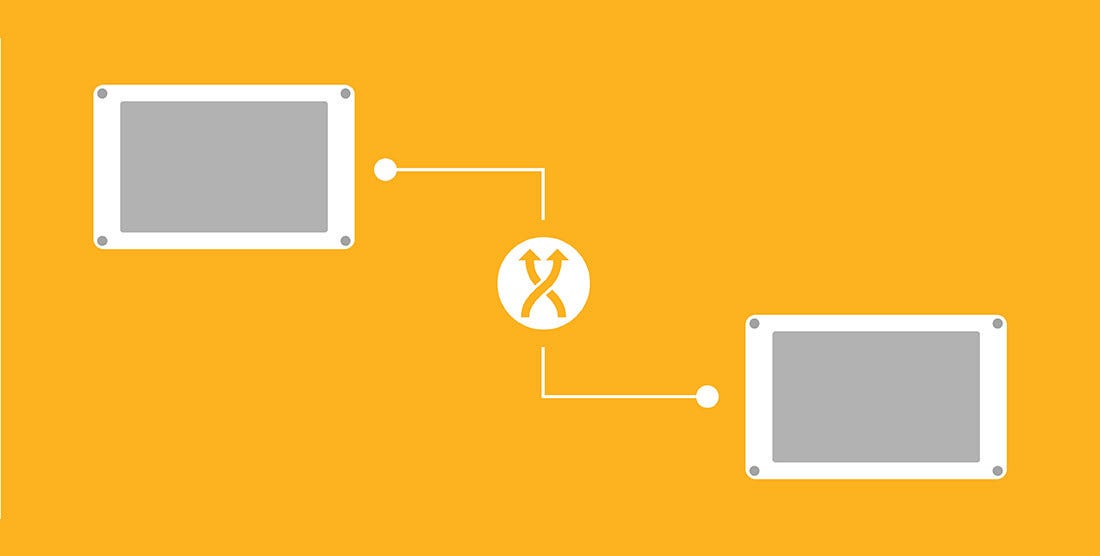

Eliminating Hardware with Software

Pagebuilder OS enables you to send your video signal downstream via the Output Preview page. Easily convert HDMI/SDI signals with Cross Conversion.

cross conversion

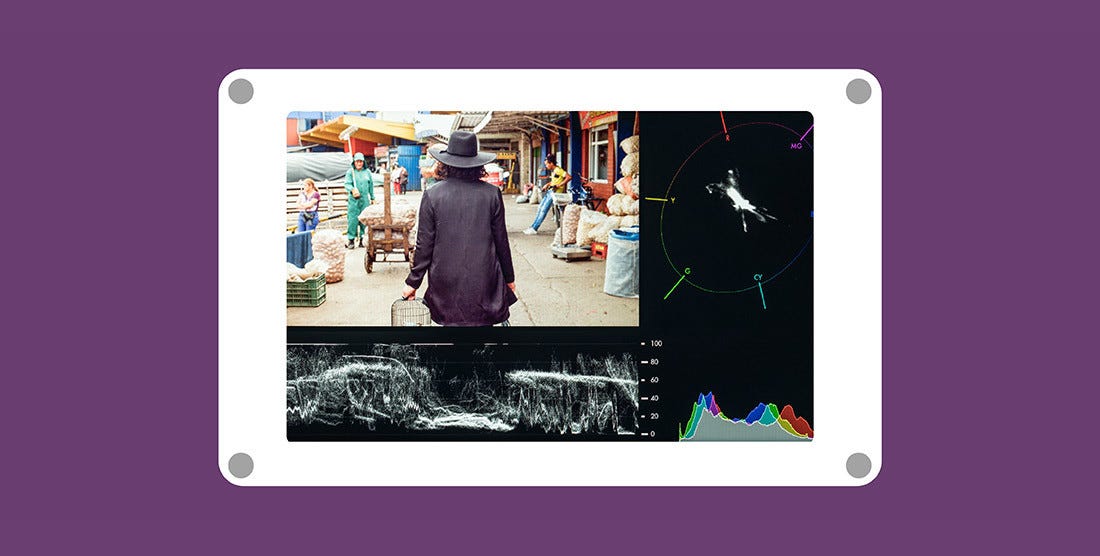

HD Waveform and Scopes

Display up to three fully customizable Scopes on screen at a time with highly detailed data analysis.

waveform scopes HD

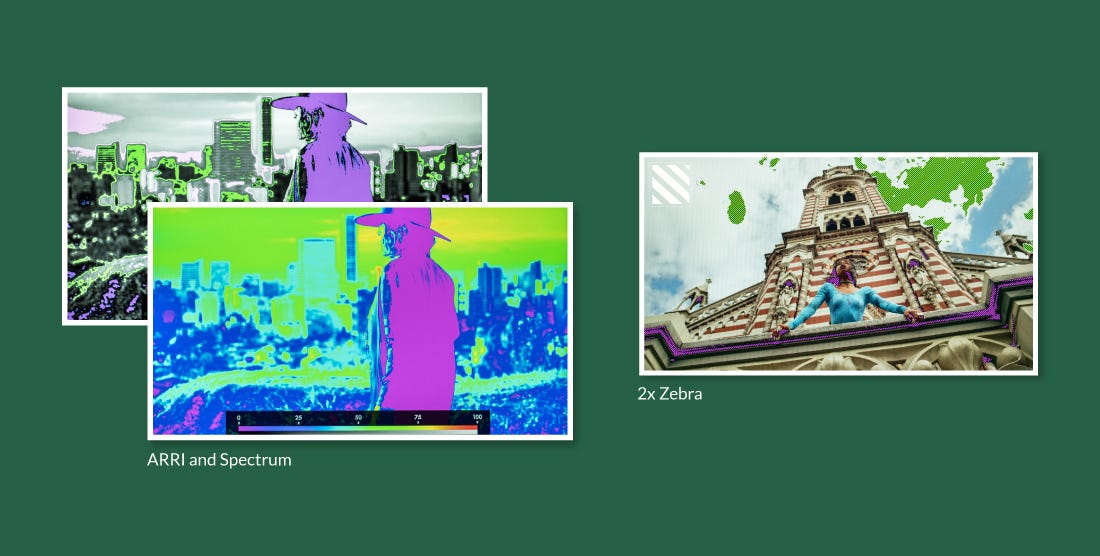

Analyze Your Exposure

Exposure Assist supports both ARRI and Spectrum-based false color, with built in IRE guides for reference. Utilize 2x Zebra as a visual warning when you’ve reached a maximum brightness level of your choosing. These features are invaluable when matching exposure across different shots and multiple cameras.

exposure ire arri spectrum zebra

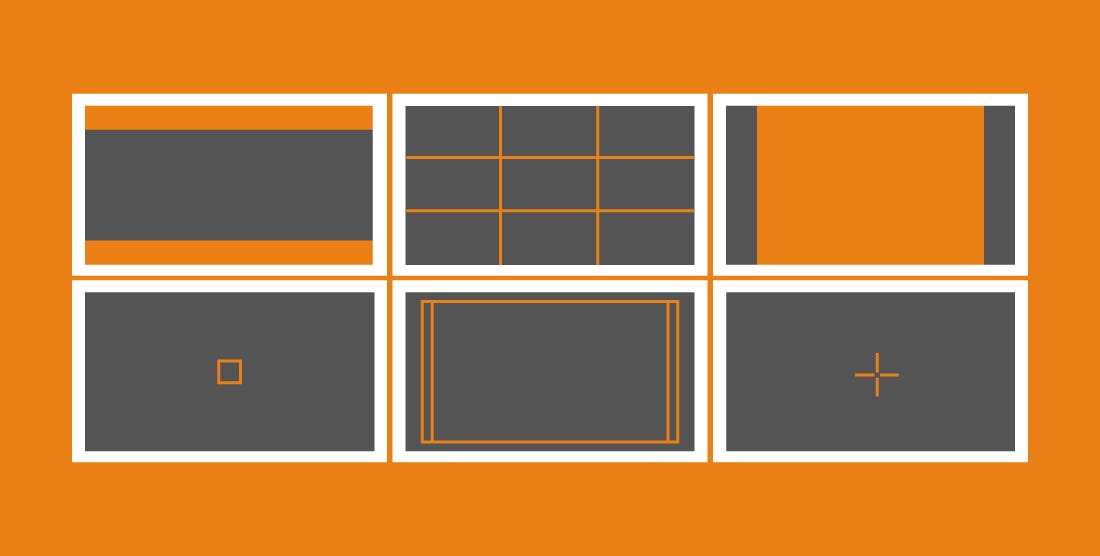

Versatile Image Framing

Select standard markers and safety areas that can be overlaid on the display as lines or matte overlays with custom opacity level and colors. Default aspect ratios include 4:3, 1.85, 2.39:1, 16:9 and Custom (user selectable).

framing matte overlay

Used Guarantee

30-day money back!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • SmallHD 7.7-inch OLED Monitor with Wide Color Gamut
