Used PTZOptics 20x-SDI Gen2 Live Streaming Camera, Gray

Item Note: Missing IR Remote Control; Does not output any image on SDI or HDMI; May have additional issues; Cosmetic condition is Wel Used. SOLD AS-IS; FOR PARTS ONLY; FINAL SALE

SKU: US1823396 MFR: PT20X-SDI-GY-G2
Earn VIP Reward Points

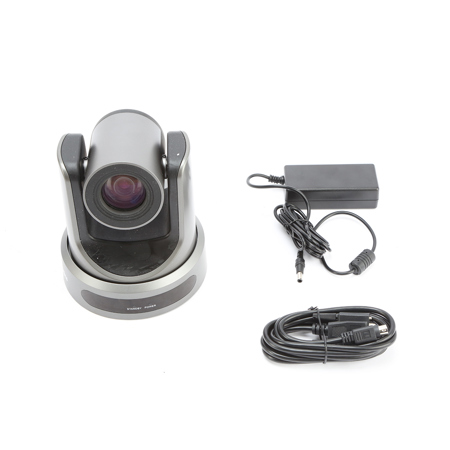

What`s in the box:

  • PTZOptics 20x-SDI Gen2 Live Streaming Camera
  • Power Adapter
  • Power Cord
  • RS-232C Cable
  • Original Box ** Item Note: Missing IR Remote Control; Does not output any image on SDI or HDMI; May have additional issues; Cosmetic condition is Wel Used. SOLD AS-IS; FOR PARTS ONLY; FINAL SALE **
Calculate Shipping

See Options

Protect your gear with Adorama Protect.* Learn more

2 Year

$74.99

3 Year

$120.99

4 Year

$164.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

2022-09-12T09:33:31

Rated 4 out of 5

Great camera, but...

Camera as promised. I'm most happy with the zoom. It's focus is sharp and the image out of the SDI is bright. I like how the iris and other setting are controllable. The thing that keeps this camera at a 4 star is 1) the menus are not all available from the PTZ joystick controller, and only the IR remote. For me, the camera and the joystick are in different rooms. Kinda inconvenient. 2) there is a significant delay when outputting over SDI. There must be some processing that happens internally that slows it down on the output. The rest of the SDI inputs in my system are much closer timed, so I know it's only on this camera.

PARKVIEW P.

2021-07-05T12:17:23

Rated 3 out of 5

To be continue

Camera looks nice and seems nice but can?t really say whether it is good or bad because I cannot get the rest of the product from the store ( due to back order ) to be able to test and see but others tell me it?s great.

ACCOUNTS P.

2021-05-19T10:45:50

Rated 5 out of 5

Great Piece of Equipment.

Camera is great. Remote is a little clunky, but useful. The manual could be a little more user-friendly, but after spending a little time on it I got all the kinks worked out.

LOGAN D.

2021-03-24T08:39:58

Rated 4 out of 5

Great Cameras, Some Difficult Setup

My high school bought these cameras for streaming sports during COVID. The three camera setup was great for us because we can use them separately at different events/locations. We can also use them together for future uses (we are thinking football). The only downsides are that if you are not familiar with streaming, it's a bit confusing how to use these. You can't just plug these in to your computer. You need to get a capture card and cable/adapter for that. Speaking of cables, there are quite a few ports in the back of the camera, but cables for the majority of ports are not included. One nice thing about each camera is that they come with their own remote, but the remote sensor on the camera is in front, so if you are standing behind/next to the camera, the remote won't work. You need to be at an angle that is in front of the camera. Lastly, creating an IP address for each camera was a bit of a headache for me. I still haven't quite figured it out after watching numerous tutorials.

ACCOUNTS P.

2021-03-14T10:29:50

Rated 4 out of 5

Adorama great company IPZ great product

Great product only problem is conflict between controllers. Use IPZ controller (free download) and you won’t have a problem.

DONALD R.

2020-07-22T12:02:49

Rated 5 out of 5

Great video quality, extremely versatile!

Great picture quality, easy setup. Remote works fine, but I'm excited to try other PTZ controls, both hardware and software. I'm using this in a house of worship for our live stream. I'll definitely be adding more of these as we expand our live stream production. A little strange that the only way to change video output resolution and frame rate is with a physical rotary dial rather than a menu setting. You always have to refer to a chart to know what setting you're on (i.e. "6" = 1080p/30fps). Love the sleek profile of the camera and multiple mounting options. Extremely versatile both in mounting options and output options (I've used SDI and HDMI so far).

DANA K.

2020-07-09T10:35:09

Rated 5 out of 5

Amazing camera.

This camera is amazing. The quality went beyond my expectation. Everyone tells us that the picture is crystal clear.

MITCHELL T.

2020-07-07T08:42:56

Rated 5 out of 5

Great camera provided by a great reseller!

This is the 4th PTZ optics camera we've purchased and we love it. We are extremely appreciative that in this challenging time of purchasing streaming equipment Adorama kept us informed on equipment as it arrived in stock. We were able to order video equipment at a critical time and are installing this for a church in need.

H O.

2020-07-05T08:22:58

Rated 4 out of 5

Nice camera for the money

Nice camera for discrete live production. Live motion at high zoom levels can be a little rough, but good considering the price point.

MARK R.

2020-06-30T08:47:39

Rated 5 out of 5

Works Great!

We purchased this for our church and it is working great so far. The fact that it can be controlled remotely is a huge plus. Can’t wait to purchase a second camera.

KARL D.

2020-06-16T13:28:54

Rated 5 out of 5

Thumbs Up!

Good picture quality for our church.

SHAUN F.

2020-06-08T13:39:48

Rated 5 out of 5

Satisfied

Great camera and great service. Fast shipping.

GREG C.

2018-11-20T07:50:01

Rated 5 out of 5

What can I say that is an awesome product

I am extremely happy we have so far set up two of them in the church the quality is good makes my life a lot easier I would recommend it without a doubt

Vesley O.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

PTZOptics SDI Gen2 PTZ Camera Specifications

  • Video CMOS Sensor

    1/3" CMOS, 2.12 Mega Pixels

  • Frame Rate

    1080p 60/50/30/25
    1080i 60/50
    720p 60/50
    576i
    480i

  • Lens

    20x, F4.42mm-88.5mm, F1.8-F2.8

  • Lens Zoom

    20x Optical, 16x Digital Zoom

  • Field of View

    60.7 deg.

  • Min Lux

    0.5 Lux at F1.8, AGC ON

  • Shutter Speed

    1/25s - 1/10000s

  • SNR

    =55dB

  • Vertical Flip & Mirror

    Supported

  • Horizontal Angle of View

    3.36 deg. (tele) to 60.7 deg. (wide)

  • Vertical Angle of View

    1.89 deg. (tele) to 34.1 deg.(wide)

  • Working Enviornment

    Indoor

  • Pan Movement

    +/-170 deg.

  • Tilt Rotation

    Up: 90 deg., Down: 30 deg.

  • Presets

    64 Presets (245 Presets via RS-232)

  • Video Output Interface

    HDMI, HD-SDI, IP Streaming, CVBS

  • Network Interface

    RJ45

  • Audio Interface

    Line In, 3.5mm (IP Stream Only)

  • Communication Interface

    RS-232, RS485

  • Baud Rate

    2400/4800/9600 bits

  • Power Supply Interface

    JEITA type Power Adapter (DC IN 12V)

  • USB Interface

    USB 2.0 (for firmware updates only)

  • Power Supply

    12W 24W (Max)

  • Input Voltage

    12V DC (10.8 - 13.0V DC)

  • Dimensions (W x H x D)

    5.56 x 6.63 x 5.88" / 141.22 x 168.40 x 149.35mm
    7.25" / 184.15mm H with Tilt up

  • Weight

    3.10lbs / 1.41kg

About PTZOptics 20x-SDI Gen2 Live Streaming Camera - Gray SKU#1823396

FEATURED REVIEWS

Works Great!

By KARL D.

We purchased this for our church and it is working great so far. The fact that it can be controlled remotely is a huge plus. Can’t wait to purchase a second camera.

Great Piece of Equipment.

By LOGAN D.

Camera is great. Remote is a little clunky, but useful. The manual could be a little more user-friendly, but after spending a little time on it I got all the kinks worked out.

The PTZ Optics 20X-SDI is a 1080p camera with 20X optical zoom for capturing HD images at long distances. With support for HD-SDI, HDMI and IP Streaming (H.264) this camera is ideal for broadcasting high definition video signals for broadcast or video conferencing applications.

• 60.7 degree wide-angle lens
• High performance in low illumination situations
• Full 1920x1080p HD Resolutions up to 30 frames per second
• 2D and 3D noise reduction with their latest "low noise CMOS sensor"
• Conforms to ONVIF IP Streaming Standards
• RJ-45 H.264 Streaming port (Control Software is open source)
• HDMI, HD-SDI, IP Streaming (All Simultaneuos)

Be seen in 1080p
Crystal clear High Definition 1080p video with lossless 20x optical zoom letting you get up close to see and interact with your team.

Three Simultaneous Video Outputs
The PTZOptics 20X-SDI can simultaneously send out 1080p video from HDMI, HD-SDI and h.264 IP Streaming for maximum flexibility.

HD-SDI Connectivity
HD-SDI is a preferred cabling for 1080p video over long distances.

Wide Field of View
The 20x PTZOptics models offer a wide field of view with the ability to zoom into narrow a 3.36 degrees.

RS-232/RS-485 Camera Control
Every PTZOptics includes in/out RS-232 ports and a RS-485. These ports use VISCA commands to integrate with larger control systems such as Crestron and Extron.

HDMI Video Connection
Every PTZOptics camera comes with a HDMI video output capable of video resolutions up to 1080p.

IP Video Streaming
Every PTZOptics camera include IP Streaming and network control. Taking things a step further PTZOptics offer their software open source so developers can customize any experience.

Works with your favorite software

Built-in RTSP & RTMP for Live Streaming
• Stream RTSP or RTMP video and audio to your favorite CDN
• Stream locally on your network
• Dual Streaming for both high and low resolution settings
• Benefit from easy to use far end camera control
• Support for (2) 1080p unicast users
• Ready for unicast streaming (best for low bandwidth internal usage)
• New: Open Source IP Control Software
• New: Android Camera Control App

Record to your favorite management tool
• Each digital video output can still be used for video monitoring or conferencing
• Make dynamic recordings with LMS systems and record "just the talking heads" via HDMI
• Take remote camera control from the far end as PTZOptics offers over 4 different ways for camera control (IP/Network, IR Remote, RS-232 and UVC )
• Every camera has HDMI video output (Perfect for in room confidence monitors)

PTZOptics 20x-SDI Gen2 Live Streaming Camera - Gray SKU#1823396 Features

  • 60.7 degree wide-angle lens
  • High performance in low illumination situations
  • Full 1920x1080p HD Resolutions up to 30 frames per second
  • 2D and 3D noise reduction with their latest "low noise CMOS sensor"
  • Conforms to ONVIF IP Streaming Standards
  • RJ-45 H.264 Streaming port (Control Software is open source)
  • HDMI, HD-SDI, IP Streaming (All Simultaneuos)

What's in the box:

  • PTZOptics 20x-SDI Gen2 Live Streaming Camera
  • Power Adapter
  • Power Cord
  • RS-232C Cable
  • Original Box
  • Item Note: Missing IR Remote Control; Does not output any image on SDI or HDMI; May have additional issues; Cosmetic condition is Wel Used. SOLD AS-IS; FOR PARTS ONLY; FINAL SALE
