Used Teradek Cube 755 Real-Time H.265 (HEVC) and H.264 (AVC) Camera Top Encoder, GigE/Wi-Fi & USB, HDMI/SDI Video Inputs

Item Note: Missing Ethernet Cable; 10 " BNC to BNC SDI Cable; 36 " Full Type A to Full Type A HDMI Cable; 2x 2dBi 2.4/5.8GHz Wireless Antennas; Hot Shoe Adapter

SKU: US1826950 MFR: 10-0755
Earn VIP Reward Points

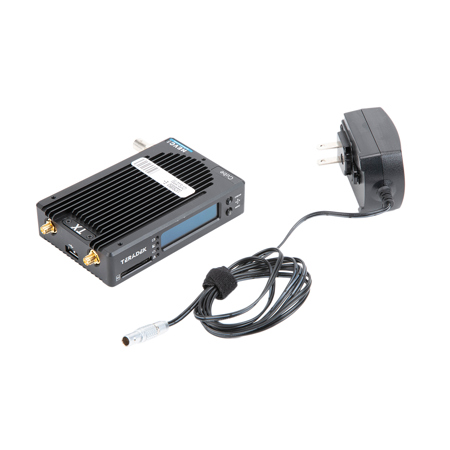

What`s in the box:

  • Teradek Cube 755 Real-Time H.265 (HEVC) and H.264 (AVC) Camera Top Encoder
  • 2-Pin Connector to 18W AC Power Adapter ** Item Note: Missing Ethernet Cable; 10 " BNC to BNC SDI Cable; 36 " Full Type A to Full Type A HDMI Cable; 2x 2dBi 2.4/5.8GHz Wireless Antennas; Hot Shoe Adapter **

INCLUDES FREE WARRANTY

  • This used item comes with a free 180-day warranty. ?
Free Shipping

See Options

Protect your gear with Adorama Protect.* Learn more

2 Year

$88.99

3 Year

$138.99

4 Year

$188.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

2021-02-24T07:46:16

Rated 5 out of 5

Tried and true

Tried and true, I’ve bought the knock-offs for a tenth of the price and they are just unstable. When you walk home with the tiny box that costs thousands you will have buyers remorse for sure. But once you use it and it works with a screen that’s easy and without the jitter and issues and unreadable manuals, it won’t seem like such a bad deal after all.

REGGIE O.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Teradek Cube 755 Specifications

Video
  • Video Inputs

    1x SD/HD-SDI (75Ohms BNC)
    1x HDMI Type-A receptacle

  • Video Outputs

    No

Bonding

Jump to...
  • Bonding

    TeraLink

Supported Resolutions

Jump to...
  • Supported Resolutions

    1080p 23.98/24/25/29.97/30/50/59.94/60
    1080i 50/59.94/60
    1080PsF 23/24/25/29/30
    720p 50/59.94/60
    576i
    480i
    480p (for HDMI input only)
    576p (for HDMI input only)

Video Processing

Jump to...
  • Video Compression

    H.265, Baseline, Main and High Profile
    H.264, Baseline, Main and High Profile

  • Supported Video Bitrate

    250Kbps to 30Mbps

  • Test Pattern Generator Support

    Supports Custom Test Pattern

  • Video Format Conversion Support

    Built in Video Scaler and Deinterlacer

  • Color Correction

    CDL/1024 1D LUT (supports 10-bit color)
    33x33x33 3D LUT (supports 10-bit color)

Protocol Support

Jump to...
  • Network Protocols

    TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP

  • Supported Video Transport Protocols

    RTMP
    RTP, RTSP, RTSP over HTTP
    MPEG-TS (MPEG-TS is an optional paid license)

  • Remote Control

    Teradek Core

  • Software Or Platform Integration

    Ustream, YouTube Live, Facebook & new Livestream

Audio Processing

Jump to...
  • Audio Compression

    AAC-LC, MPEG Layer 2

  • Audio Input

    Embedded Audio Input
    Analog Line or Mic in, adjustable gain

Outputs

Jump to...
  • Audio Output

    Headphone output

Construction

Jump to...
  • Construction

    Milled Aluminum

Mountability

Jump to...
  • Mountability

    Can be mounted horizontally or vertically with 1/4" 20 mounting holes

Interfaces

Jump to...
  • HTTP

    WebUI for Configuration and Control

  • Configuration Interfaces

    OLED Display with joystick Navigation buttons
    Feature-rich WebUI for configuration and control

  • Switches

    On/Off and Reset Switch

  • Recording Storage

    SD Card: Full Size

  • Mobile App

    Vuer, Live:Air

  • USB Interface Functionality

    1x Powered USB 2.0 host port

Network

Jump to...
  • Ethernet

    10/100/1000 BASE-T Gigabit

  • Wireless

    Wi-Fi: 2.4/5GHz 802.11 ac/a/b/g/n MiMo

  • USB

    USB 3G/4G Modem support

  • RF Channel Selection

    Auto with 3 modes: (2.4 or 5GHz), Auto (2.4GHz only), Auto (5GHz only)
    Configurable to specific channels

  • Encryption

    802.1x, 802,11i, WPA2, WPA and WEP 64/128 TKIP 128bit AES

  • Input Power

    2 Pin Connector Power input

  • Battery

    No Battery Included

  • Nominal Power Consumption

    8W, 7W (no Wi-Fi)

  • Auxiliary Power Input

    6-28V DC

General

Jump to...
  • Dimensions (WxDxH)

    4.75 x 3 x 1.1" (120.65 x 76.20 x 27.94mm)

  • Weight

    11.6 oz (328.85g)

About Teradek Cube 755 Real-Time H.265 (HEVC) & H.264 (AVC) Camera Top Encoder 1826950

FEATURED REVIEWS

Tried and true

By REGGIE O.

Tried and true, I’ve bought the knock-offs for a tenth of the price and they are just unstable. When you walk home with the tiny box that costs thousands you will have buyers remorse for sure. But once you use it and it works with a screen that’s easy and without the jitter and issues and unreadable manuals, it won’t seem like such a bad deal after all.

What is HEVC?
HEVC, also known as H.265, is a next-generation compression standard that offers a number of enhancements over H.264. Compared to AVC (H.264) compression, HEVC is 50% more efficient, which translates into maintaining the same video quality at half the bitrate or double the video quality at the same bitrate.

• Real-Time H.265 (HEVC) and H.264 (AVC) Encoder
• Dual-Band 2.4/5.8GHz Wi-Fi, Ethernet and USB Interfaces
• HDMI and SDI Video Inputs
• Camera Top Form Factor
• Built-In Color Grading
• On-Board SD Card Recording
• Two-Pin Connector-Type Power Input

The new Cube 700 and Slice 756 series
The new Cube 700 and Slice 756 series bring the latest in compression technology at a size and price point never before seen.

What makes HEVC Cube and Slice unique
• Can use both HEVC (H.265) and AVC (H.264) High Profile compression
• Compatible with Core transcoding engine. This allows you to take advantage of HEVC encoding when streaming to Core, while delivering your content in AVC to your destination
• Dual input (HDMI + 3G-SDI)
• Compatible with the new Bond expansion module, allowing you to turn your Cube 700 series into a professional bonding solution
• GigE and 2.4 / 5GHz 802.11ac Wi-Fi built-in
• Bitrate support up to 30Mbps
• Streaming resolution support up to 1080p60
• Compatible with T-21, Sencore and Vitec HEVC decoders
• Uses just 6W of power

What can Cube and Slice codecs do?
• Stream to any online video platform, such as Facebook, YouTube, Twitch, Periscope and more
• Stream point-to-point to decoders over the internet or on local networks with latency as low as 80ms
• Comprehensive protocol support: MPEG-TS, RTSP, RTMP, HLS, TDS
• Monitor your live video feed on an iOS device for confidence or local configuration
• Turn your camera into a wireless video feed for Teradek's Live:Air iOS switcher application

Warranty Information

This used item has a FREE 180-day warranty. See details.

What's in the box:

  • Teradek Cube 755 Real-Time H.265 (HEVC) and H.264 (AVC) Camera Top Encoder
  • 2-Pin Connector to 18W AC Power Adapter
  • Item Note: Missing Ethernet Cable; 10 " BNC to BNC SDI Cable; 36 " Full Type A to Full Type A HDMI Cable; 2x 2dBi 2.4/5.8GHz Wireless Antennas; Hot Shoe Adapter
