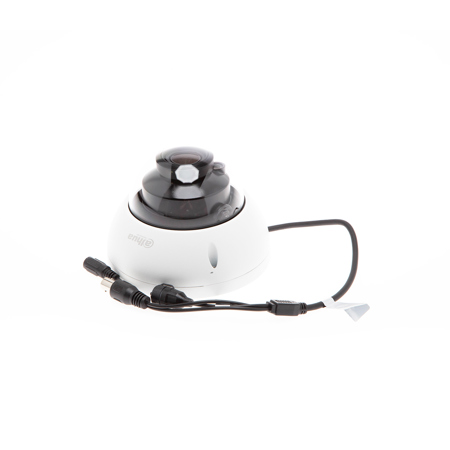

Used Dahua A21CM0Z Lite Series 2MP 1080P Starlight Outdoor Vari-Focal IR HDCVI Dome Camera with 2.7-12mm F1.8 Motorized Lens

SKU: US1827512 MFR: A21CM0Z
$50.00
$55.00
Save: $5 (9%)
Earn VIP Reward Points

What`s in the box:

  • A21CM0Z Lite Series 2MP 1080P Starlight Outdoor Vari-Focal IR HDCVI Dome Camera

INCLUDES FREE WARRANTY

  • This used item comes with a free 90-day warranty. ?
Calculate Shipping

See Options

Protect your gear with Adorama Protect.* Learn more

1 Year

$10.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Dahua A21CM0Z Specifications

Camera
  • Sensor

    1/2.8" CMOS

  • Effective Pixels

    1920 x 1280, 2 MP

  • Scanning System

    Progressive

  • Electronic Shutter Speed

    1/100,000 to 1/30 Second

  • Minimum Illumination

    Color: 0.005 Lux at f/1.8 (30 IRE)
    0 Lux with IR On

  • S/N Ratio

    >65 dB

  • IR Range

    98.43' (30m)

  • IR Control

    Auto, Manual

  • IR LEDs

    2

  • Lens Type

    Motorized Lens, Fixed Iris

  • Mount Type

    Board-In

  • Focal Length

    2.7-12mm

  • Aperture

    f/1.8

  • Horizontal Angle of View

    101.7 to 32.3 Degree

  • Focus Control

    Motorized

  • Close Focus Distance

    7.87" (200mm)

DORI Distance

Jump to...
  • Detect

    Wide: 153' (47m) at 8 ppf
    Tele: 448' (137m) at 8 ppf

  • Observe

    Wide: 61' (19m) at 19 ppf
    Tele: 179' (55m) at 19 ppf

  • Recognize

    Wide: 31' (9m) at 38 ppf
    Tele: 90' (27m) at 38 ppf

  • Identify

    Wide: 15' (5m) at 76 ppf
    Tele: 45' (14m)

Camera Adjustment Range

Jump to...
  • Angle Adjustment

    Horizontal: 0 to 355 Degree
    Vertical: 0 to 75 Degree
    Rotation: 0 to 355 Degree

  • Resolution

    1920 x 1080

  • Frame Rate

    30 fps at 1920 x 1080
    30/60 fps at 1280 x 720

  • Output

    1 x BNC HD-CVI Channel
    Switchable to CVBS, AHD, or HD-TVI

  • Transmission

    Over RG-59/U Coax
    720p: 2624.67' (800m)
    1080p: 1640.42' (500m)

    Over RG-6/U Coax
    720p: 3937.01' (1200m)
    1080p: 2624.67' (800m)

    Over Cat 6 UTP (Separately Available Balun Required)
    720p: 1476.38' (450m)
    1080p: 984.25' (300m)

  • Day/Night

    Auto (IR Cut Filter), Manual

  • OSD Menu

    Multi-Language: Chinese, English, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, and Spanish

  • BLC Modes

    BLC, HLC, DWDR

  • WDR

    Digital

  • Gain Control

    Automatic (AGC)

  • Noise Reduction

    2D

  • White Balance

    Auto, Manual

  • Smart IR

    Auto, Manual

Certifications

Jump to...
  • Safety

    UL60950-1+CAN/CSA C22.2 No.60950-1

  • Electromagnetic Compatibility

    FCC CFR 47 Part 15 Subpart B
    ANSI C63.4-2014
    EN55032, EN55024, EN50130-4

Electrical

Jump to...
  • Power Supply

    12 VDC +/-30%

  • Maximum Power Consumption

    6.7 W

Environmental

Jump to...
  • Operating/Storage Temperature

    -22 to 140 Degree F (-30 to 60 Degree C)

  • Operating/Storage Humidity

    90% RH Maximum

  • Ingress Protection

    IP67

  • Vandal Resistance

    IK10

Construction

Jump to...
  • Casing Material

    Aluminum

  • Dimensions

    4.80 x 3.5" (122.0 x 88.9mm)

  • Weight

    0.97 lb (0.44kg)

About Dahua A21CM0Z Lite 2MP 1080P Starlight Vari-Focal IR HDCVI Dome Camera #1827512

Experience the superior clarity of Dahua's 2 MP HDCVI cameras for vast coverage and superior image details. The 2 MP HDCVI series leverages existing coax infrastructures to deliver forensic-level images seamlessly and over long distances. The camera uses a progressive-scan CMOS sensor and next-generation ISP chip technology developed by Dahua to deliver stunning video with a wide field of view. This home-grown ISP features the latest image processing algorithms and is optimized for surveillance camera operations. With total control of the ISP features and production, Dahua can offer the latest security systems at a cost-effective price.

Three Signals over One Coaxial Cable
HDCVI technology simultaneously transmits three signals (video, power, and data) over a single coaxial cable. Dual-way data transmission allows the HDCVI camera to communicate with an HCVR to send control signals or to trigger alarms. HDCVI along with PoC technology delivers power to devices at the edge, simplifying installation.

Long Distance Transmission
HDCVI technology guarantees real-time transmission over long distances without loss of video quality. HDCVI cameras provide the same resolution as most IP network camera systems using existing RG-59, RG-6, or CAT 6 UTP cabling.

Starlight Technology
For challenging low-light applications, Dahua's Starlight low light Technology offers best-in-class light sensitivity, capturing details in low light applications. The camera uses a set of optical features to balance light throughout the scene, resulting in clear images in dark environments.

Simplicity
HDCVI technology seamlessly integrates traditional analog surveillance systems with upgraded, high-quality HD video, making it the best choice to protect security investments. The plug and play approach enables full HD video surveillance without the hassles of configuring a network.

Smart IR
With IR illumination, detailed images can be captured in low light or total darkness. The camera's Smart IR technology adjusts the intensity of the camera's infrared LEDs to compensate for the distance of an object. Smart IR technology prevents IR LEDs from whitening out images as they come closer to the camera. The camera's integrated infrared illumination provides high-performance in extreme low-light environments up to 30 m (98 ft).

Multi-format Support
The camera supports multiple video formats including, HDCVI, CVBS, AHD, and TVI. The camera can switch between these four formats via the OSD menu or the switch located on the video output cable, making the camera compatible with not only HDCVI DVRs but also most existing HD/SD DVRs.

Environmental
With a temperature range of -30 Degree C to +60 Degree C (-22 Degree F to +140 Degree F), the camera is designed for extreme temperature environments. The camera complies with an IK10 impact rating making it capable of withstanding the equivalent of 5 kg (11.02 lbs) of force dropped from a height of 40 cm (15.75 in.). Subjected and certified to rigorous dust and water immersion tests, the IP67 rating makes it suitable for demanding outdoor applications. Supporting a +/-30% input voltage tolerance, this camera suits even the most unstable power supply conditions. Its 4KV lightning rating provides protection against the camera and its structure from the effects of lightning.

Dahua A21CM0Z Lite 2MP 1080P Starlight Vari-Focal IR HDCVI Dome Camera #1827512 Features

  • 1/2.8-in. 2 MP Progressive-scan CMOS Sensor
  • 1080p at 30 fps Maximum Resolution
  • 2.7 mm to 12 mm Motorized Optical Zoom Lens
  • Multi-format Output (HDCVI, CVBS, AHD, and TVI)
  • HD and SD Output, Switchable
  • Starlight Technology for Low-light Applications
  • Maximum IR Length 30 m (98 ft), Smart IR
  • IP67 Ingress Protection and IK10 Vandal Resistance

Warranty Information

This used item has a FREE 90-day warranty. See details.

What's in the box:

  • A21CM0Z Lite Series 2MP 1080P Starlight Outdoor Vari-Focal IR HDCVI Dome Camera
