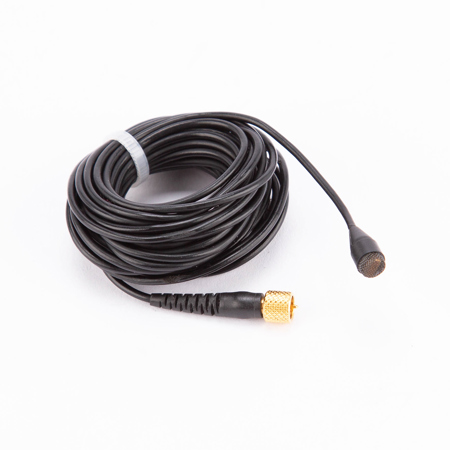

Used DPA Microphones d:screet Core 4060 Miniature Omnidirectional Microphone with Hardwired 1/8" Mini-Jack Connector, Normal SPL, High-Sens, Black

Item Note: Missing High-Boost Protection Grid; Soft-Boost Protection Grid

SKU: US1828875 MFR: 4060-OC-C-B34
Earn VIP Reward Points

What`s in the box:

  • DPA Microphones d:screet Core 4060 Miniature Omnidirectional Microphone with Hardwired 1/8 " Mini-Jack Connector ** Item Note: Missing High-Boost Protection Grid; Soft-Boost Protection Grid **

INCLUDES FREE WARRANTY

  • This used item comes with a free 90-day warranty. ?
Free Shipping

See Options

Protect your gear with Adorama Protect.* Learn more

1 Year

$19.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

DPA Microphones d:screet Core 4060 Specifications

  • Directional pattern

    Omnidirectional

  • Principle of operation

    Pressure

  • Cartridge type

    Pre-polarized condenser

  • Frequency range

    20 Hz - 20 kHz

  • Frequency range, +/-2 dB

    Soft boost grid: 20 Hz - 20 kHz, 3 dB soft boost at 8 - 20 kHz. High boost grid: 20 Hz - 20 kHz, 10 dB boost at 12 kHz

  • Sensitivity, nominal, +/-3 dB at 1 kHz

    20 mV/Pa; -34 dB re. 1 V/Pa

  • Equivalent noise level, A-weighted

    Typ. 23 dB(A) re. 20 MuPa (max. 26 dB(A))

  • Equivalent noise level, ITU-R BS.468-4

    Typ. 35 dB (max. 38 dB)

  • S/N ratio

    (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL): Typ. 71 dB(A)

  • Total harmonic distortion (THD)

    < 1% THD up to 129 dB SPL peak

  • Dynamic range

    Typ. 106 dB

  • Max. SPL, peak before clipping

    134 dB

  • Output impedance

    30 - 40 Ohms

  • Cable drive capability

    Up to 300 m (984 ft)

  • Power supply (for full performance)

    For wireless systems: Min. 5 V - max. 50 V through DPA adapter. With DAD6001-BC/DAD6024/DAD4099: 48 V phantom power +/-4 V for full performance

  • Connector

    Hardwired 1/8" Mini-Jack Connector

  • Polarity

    Positively increasing sound pressure produces positive going voltage on MicroDot pin

  • Temperature range

    -40 to 45 deg. C (-40 to 113 deg. F)

  • Relative humidity (RH)

    Up to 90%

  • Microphone diameter

    5.4 mm (0.21 in)

  • Microphone length

    12.7 mm (0.5 in)

  • Cable length

    1.8 m (5.9 ft)

  • Weight

    7.5g (0.26 oz) incl. Cable and MicroDot connector

About DPA Microphones d:screet Core 4060 Miniature Omnidirectional Microphone #1828875

What sets the d:screet Core 4060 Miniature Omnidirectional Microphone apart is its innovative design and high-quality performance. This professional-grade microphone, available in black, is a product of DPA Microphones, a renowned brand in the audio industry.

The d:screet Core 4060 is a versatile microphone, tailored to meet specific application needs based on sensitivity, voltage, and placement. It's built on the foundation of the original d:screet 4060, the first miniature microphone developed by DPA, leveraging technology previously exclusive to hearing aids and measurement microphones.

This durable microphone is designed to withstand the harshest conditions. It features a 5.4 mm diameter pre-polarized condenser element with a vertical diaphragm, and a unique Double Vent Protection System, making it highly resistant to humidity and sweat. The Kevlar-reinforced cable relief is built to endure the constant twists, bends, and pulls that come with everyday use in challenging environments.

The d:screet Core 4060 Microphone offers an exceptional omnidirectional polar pattern, making it capable of picking up sound from all directions. This feature, coupled with its high sensitivity, makes it an ideal choice for capturing sound from multiple sources or from a distance.

The acoustic response of this microphone can be modified by selecting the correct grid. Each microphone comes with two anodized stainless steel grids, which are tough, scratch-resistant, and easy to clean. The pre-fitted Soft Boost Grid provides a 3 dB soft boost at 8-20 kHz, while the High Boost Grid introduces a 10 dB soft boost around 12 kHz.

This microphone is not just small in size but also mighty in flexibility. It doesn't need to be aimed directly at the sound source to achieve quality pickup, making it less sensitive to handling noise as well as pop and wind noise. It's especially suited for capturing speech in all its nuances and can be used to close-mike a wide range of instruments.

The d:screet Core 4060 Microphone can handle sound pressure levels up to 134 dB before clipping occurs, making it well suited for applications where the sound source is more remote or damped.

The microphone comes with a hardwired 1/8" mini-jack connector, allowing it to be easily connected to a variety of devices, such as cameras, computers, or portable audio recorders.

With its omnidirectional sensitivity, high sound pressure level handling, and resistance to wind, pop, and handling noise, the d:screet Core 4060 Microphone is a reliable and flexible addition to your audio toolbox.

DPA Microphones d:screet Core 4060 Miniature Omnidirectional Microphone #1828875 Features

  • Exceptional audio quality
  • Uniform, consistent sound between DPA mics
  • Extremely rugged and reliable
  • Diminutive size made for flexible and easy concealment
  • Large selection of clips, windscreens, grids and other accessories
  • Modular adapter system fits most professional wireless systems

Warranty Information

This used item has a FREE 90-day warranty. See details.

What's in the box:

  • DPA Microphones d:screet Core 4060 Miniature Omnidirectional Microphone with Hardwired 1/8 " Mini-Jack Connector
  • Item Note: Missing High-Boost Protection Grid; Soft-Boost Protection Grid
